The use of a machine, the scope and characteristics of the application:

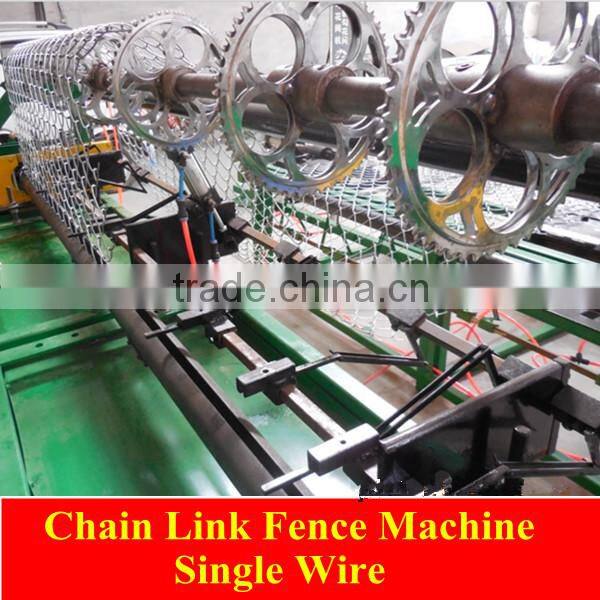

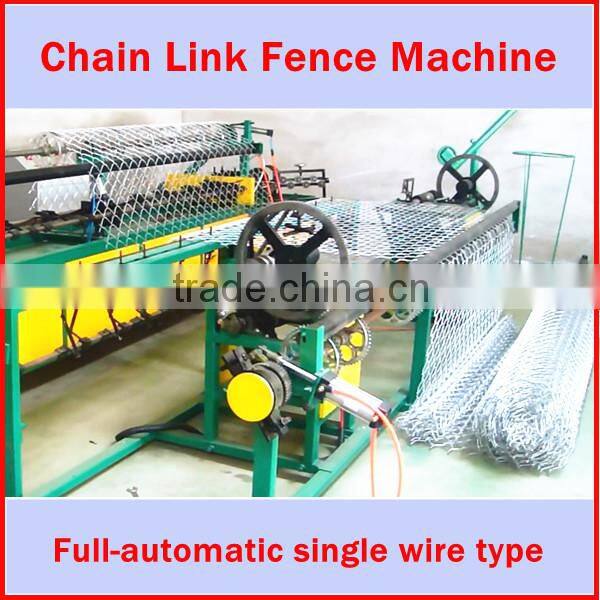

Full-automatic hook chain link fence machine is the use of special equipment for domestic metal wire metal production huangtongwang, also known as diamond netting machine, supporting net for mining machine, anchor net machine, grille machine network, netting machine. Applicable to various types of steel wire, stainless steel wire, aluminum alloy wire, PVC wire, spray silk as raw material huangtongwang weaving production, with uniform mesh, net surface smooth, elegant, web width to adapt to the tune, weaving simple, beautiful and practical, wire diameter, pore size range of large scale.
Huangtongwang use: this network is mainly used for coal mine supporting roof, has strong security compared with other network types. At the same time can also be used for the production of chickens, ducks, geese, and the zoo fence. Protection, highway guardrail, sports fence, the road green belt protection net of mechanical equipment. Made of box shaped containers, cages filled with rocks, can be used to support and protect the seawall, hillsides, road and bridge, reservoirs and other civil engineering. Is the flood of good material. Can also be used for the production of handicrafts, machinery and equipment transport network, with strong impact resistance, construction convenience, corrosion resistance and other characteristics.
The machine features: simple operation, low cost of mold, production efficiency can be a person at the same time operating two machines or two people at the same time cooperation between three to five machines. Production specifications diversity, high degree of automation, (automatic rolling, automatic cutting, automatic wear, automatic folding or twisted side) time-saving efficiency high mesh quality is good, mechanical and electrical integration, the gas dynamic driving mode simplifies the mechanical transmission structure, reduce fault rate greatly reduced the fault point and gas pneumatic components is relatively low in price, low maintenance cost, convenient maintenance, simple and fast.

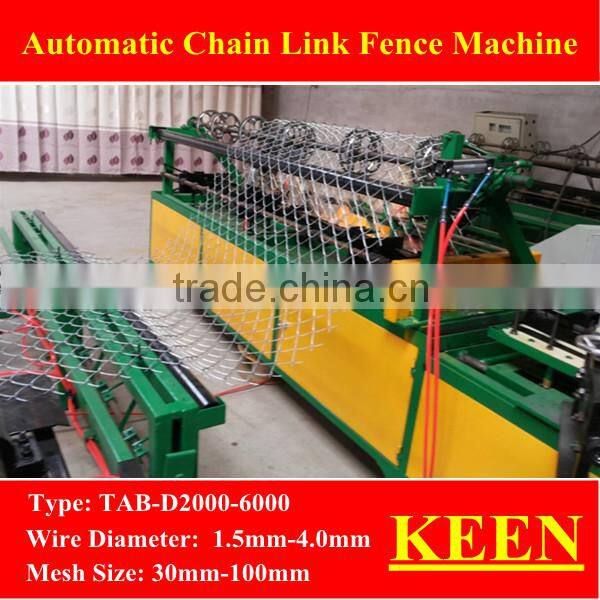

2000 - 6000 mesh length:
| Power configuration | 1.5KW three phase motor two sets |
| Widely used materials | Galvanized wire, wire, PVC coated wire etc.. |
| Long * wide * high (work area) | 2 meters width 4.5m (by X 2.0m x 1.3m or wide) 3 meters width 5.5m (by X 2.0m x 1.3m or wide) 4 meters width 6.5m (by X 2.0m x 1.3m or wide) 5 meters width 7.5m (by X 2.0m x 1.3m or wide) 6 meters width 8.5m (by X 2.0m x 1.3m or wide) |
| Actual packing volume (L * w * h) | 2 meters width 4.5m (by X 1.10M x1.3m or wide) 3 meters width 5.5m (by X 1.10M x1.3m or wide) 4 meters width 6.5m (by X 1.10M x1.3m or wide) 5 meters width 7.5m (by X 1.10M x1.3m or wide) 6 meters width 8.5m (by X 1.10M x1.3m or wide) |
| weight | About 1.5T-1.8T |
| speed | Variable frequency adjustable |
Benefit table:

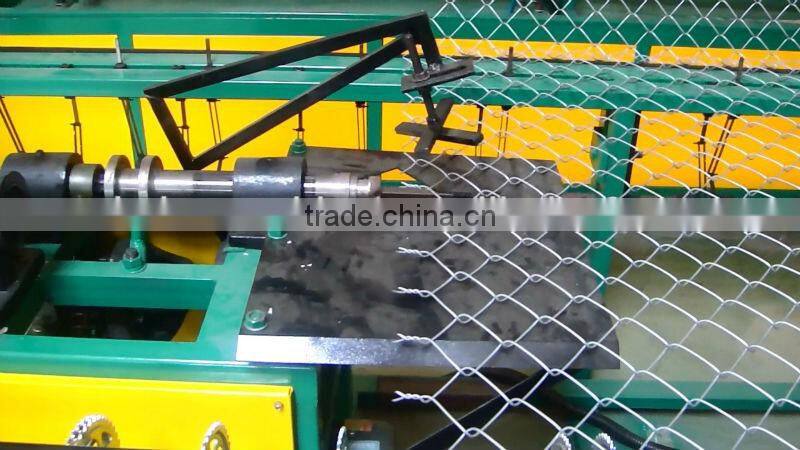

Automatic screw machine edge edge huangtongwang (twisted side parts):
Automatic screw machine edge edge huangtongwang (edge bending parts):1, the main structure:

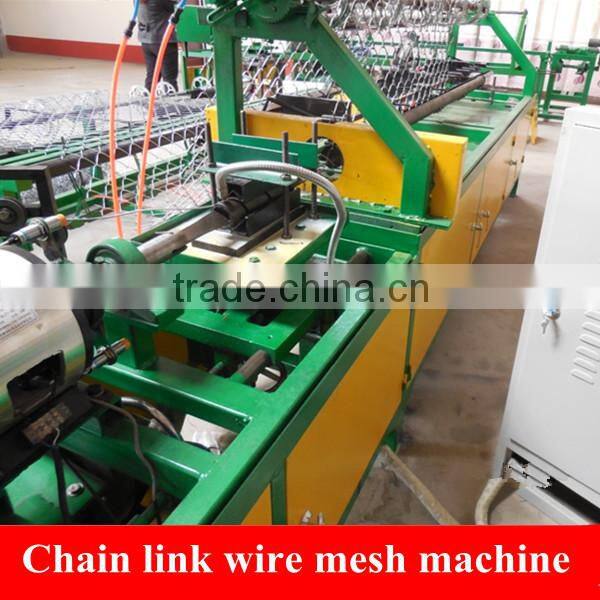

This machine is mainly composed of power transmission, twine forming, woven mesh, coolant supply, shear, mesh positioning, net device, serging device, electrical control multiple system and devices.
2, working principle:
By the motor drive, consists of a triangular belt to lose power to the electromagnetic clutch brake, an electromagnetic clutch brake driven mold rotating guide, in the forming of spiral surface forcing, wire forming mesh (rotating cooling system lubrication of mould), also through the mesh pipe forming woven into mesh and netting system the forming mesh to pull delivery to serging device of automatic sewing, a completion of the process of the machine automatic cycle. 3. operation instructions:
The mould is installed, the lubricating fluid into the water tank, and put the water pump in the lubricating fluid, then the wire on the wire frame plate, wire sequentially through the host on a wire press wheel, the wire hook, hook mould plate, the cooling water pipe die received into the wire outlet.
According to move the wire is screwed out from the mold, according to the work start setting mesh length, width adjusting control cabinet counter, a number for a day, set up after the proximity switch is normal spindle control machine counter (from contact 2mm-3mm) after rolling out a mesh smoothness, by wire if not, adjust the screw die table is connected below, depending on the situation and move around, not a one-time adjustment move too much to gradually put the wire leveling, leveling machine, press the start button, remove the finished silk artificial wear about 50cm a mesh, after putting it in order to adjust the pressure net bars and net cone, cone and rod pressing net vertically, tighten the screw fixation, press the button automatic machine automatically, when the mesh length to the sewing machine pulling wheel, the catcher alignment net edge fixed, open the linkage Button sewing machine automatically, thus the whole process is completed automatically.
