SKY Digital Link System (Remote Eye)

SKY Digital Link System (Remote Eye) thumbnail-1
SKY Digital Link System (Remote Eye) photo-1
US$ 2 - 2.5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ROGETECH
Model Number:
R6536
Use:
TV
Contact Supplier Request Quote Chat Now
Jiaxing Rogetech Communication Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ROGETECH
Model Number R6536
Use TV
Place of Origin Zhejiang, China

Specifications

1.Connect all of the Sky digital receiver (Digibox) come up with a second output.
2.High quality component and professional des

Introduction



*professional remote eye are designed to be used with SKY digi-boxes and SKY+ receives ;



*professional  remote eye are designed to allow viewers watching SKY digital satellite programmes on a second TV away from the digital receiver .



*Viewers could operate their sky digibox using a remote control from another point in their house - bedroom, kitchen etc.



*You simply run a coax cable (not supplied) from the socket marked RF2 on the back of your digibox to your other TV to provide the pictures, fit the Sky TV Link onto this lead and you will be able to control your digibox from this point.

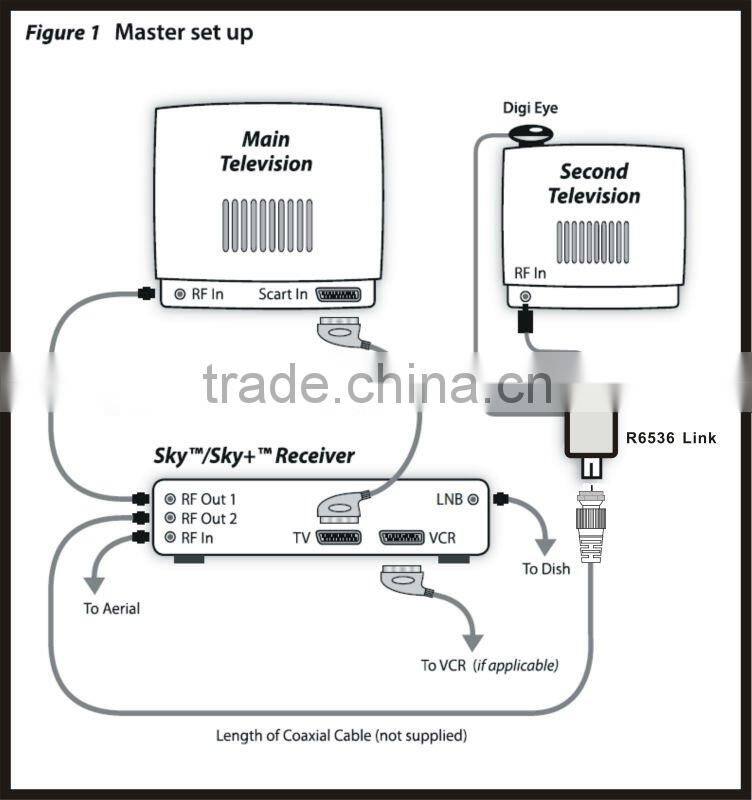

Master set up:



SKY Digital link system (Remote eye)

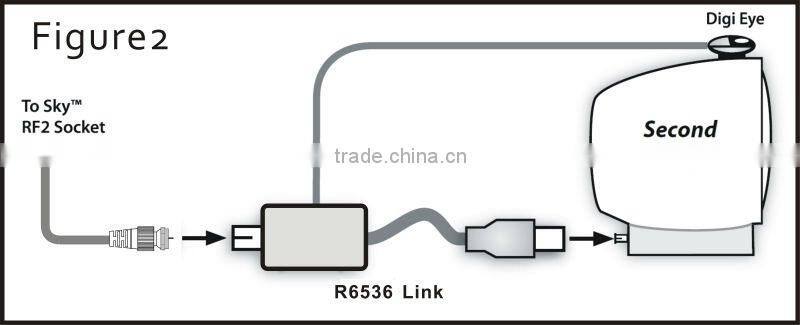

Installing the Remote eye:



1.Connect the short lead with the male plug which is attached to the R6536 link to the aerial input socket on the second TV.

2. Connect the male plug on the length of coaxial cable to the female socket on the R6536.

3.Position the R6536 infrared eye in the clear line of sight from where you will be using the remote control ( for example: on the top of TV set , same as the pic.)



SKY Digital link system (Remote eye)







  Main Technical Specifications:



 Frequency Range :         47--862MHz



 All port F-(f) connector,75 ohm.



 Number of input :                1



 Number of output :              1



 Insertion loss:                  ≤2dB



 Carrier frequency:           6.5MHz±0.5MHz



 Remote operation               ≥5m



 Power supply:                  9Vdc/15mA
