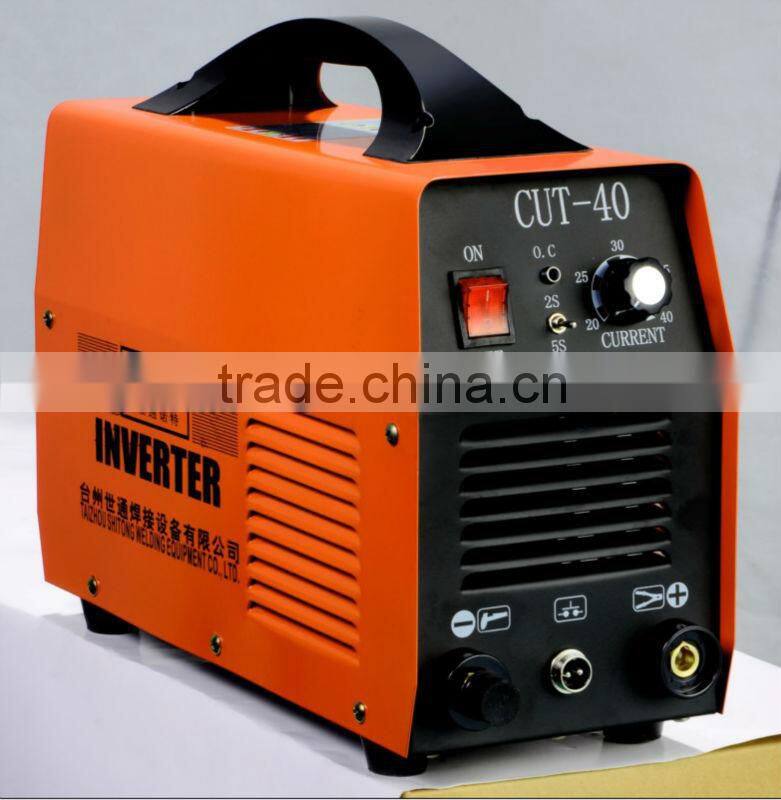

Scrap Metal Cutting Machine CUT-40

Name: Scrap Metal Cutting Machine CUT-40
Brand: stonote ruiling
SKU: 120670107
Availability: InStock

US$ 49 - 199 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

stonote ruiling

Taizhou Shitong Welding Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name stonote ruiling

Model Number CUT-40

After-sales Service Provided Engineers available to service machinery overseas

Certification Other, CE CCC

Specifications

metal cutting machine
1.Cutting capacity increased 1.8 times higher in cutting speed compare with acetylene cutting.
2. Thick

Product Name: Plasma Cutting Machine
Product Model: CUT-40

Product Features:
1. Can cut metal plates in any customised routes. 2. Plasma cutting. Excellent for cutting carbon steel, stainless steel, aluminium and copper. 3. Widely used in steel structures, manufacturing industries and automobile maintenance. 4. Optimized cutting torch cooling mechanism, greatly lengthens the working life of the components. 5. Air pressure regulator allows operations under high gas pressure conditions. 6. Step-less adjustment for cutting current. 7. Contains electric circuit to protect against over-current, over-heat, over-voltage and short-voltage, safe to operate.

Main Parameters Table(CUT-40):

Input voltage (V)	220	Power factor	0.73	Rated input current (A)	30
No-load loss (W)	40	Output current (A)	15-40	Housing Protection grade	IP21
Rated output volt. (V)	96	Rated output current (A)	40	Insulation grade	F
Max cutting thickness (mm)	10	Duty cycle(%)	60	Efficiency(%)	80
Weight (kg)	9	Dimensions (mm)	400x153×291
Remarks	Input voltage Frequency should be 50/60Hz
