Automatic Bag-Given Rotary Packing Machine GD8-200B/250B/300B
Main technical parameters
Model |
GD8-300B | GD8-250B | GD8-200B |
Working position |
eight-working position | ||
Pouch material |
Laminated filmPPPE etc. | ||
Pouch pattern |

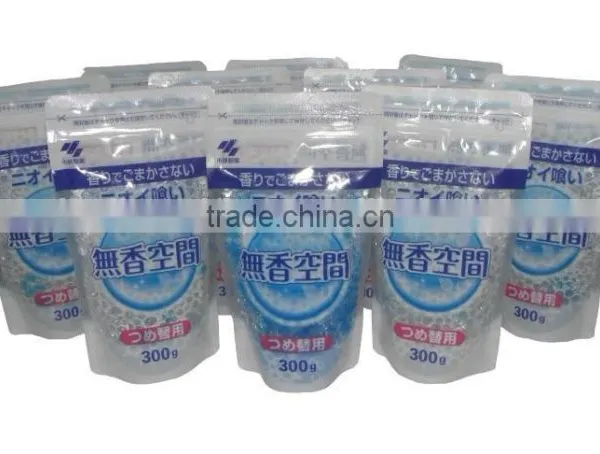

Stand-up pouch with zipper | ||
Pouch size |
W:200-300mm L:200-450mm |
W:150-260mm L:150-350mm |
W:100-210mm L:100-350mm |
Speed |
8-30bag/min | 8-35bag/min | 10-50bag/min |
Weight |
1500KGS | 1400KGS | 1200KGS |
Voltage |
380V 3phase 50HZ/60HZ | ||
Total power |
4KW | 4KW | 3KW |
Compress air |
Each 0.6 cubic meters ( provided by the user) | ||
Function and characteristics
1.Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4.Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
5.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, andsave time.
6.It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust.
7.Use the plastic bearing, don’t need put on oil, less pollution.
8.Use no oil vacuum pump, avoid polluting the environment in the production.
9.The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when opne the zipper
10.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
11.Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
12.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
13.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Working Process
Working House
Exhibition and Customers
Company’s Honors
Q1:Are you a trading company or manufacture?
A1: Kedi is a professional manufacturer with experience over 20 years. Now we have new factory in Wenzhou .Your order will be controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 30-45 days upon order confirmation.
Q3: What is your packing pattern?
A3: Special export wooden packing
Q4: How about your service?
A4:Engineers available to service machinery overseas
Q5: How about your product?
A5: Kedi has the standard production and complete quality control system to ensure high quality
products. Our products get ISO. CE.SGS
Q6:How to choose the machine type for our bags?
A6: Pls support us the following information about the bag and the food.
1) bag pattern
2)bag size
3)the filling weight or volume
4)material of food: powder/liquid/paste/granular/massiveness
5)sample bags or pictures
1.Round the Clock Customer Service Centers
2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas.
3.Expert Team, Technical Support
4.Abundant Spare Parts, Swift Storage Center
If you have any other questions, please contact us !
