Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Automatic Bag-given Tomato Ketchup Packaging Machine
Automatic Bag-given Tomato Ketchup Packaging Machine
US$ 20,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Pouch, Stand-up Pouch, Other, Bags, Pouch, Stand-up Pouch, pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fully Automatic Vacuum Packing MachineNegotiableMOQ: 1 Set -
Automatic Bag-Given Rotary Packing Machine GD8-200B/250B/300BUS$ 20,000 - 99,000MOQ: 1 Set
-
Automatic Granules Bag-Given Rotary Packing Machine GD8-200BUS$ 1,000 - 99,000MOQ: 1 Set
-
Automatic Doypack Pouch Food Packing Machine GD8-200BUS$ 20,000 - 99,000MOQ: 1 Set
-
Automatic Doypack Pouch Granules Packing MachineUS$ 20,000 - 99,000MOQ: 1 Set
Condition
New
Application
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type
Bags, Pouch, Stand-up Pouch, Other, Bags, Pouch, Stand-up Pouch, pouch
Packaging Material
Paper, Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V/380V
Power
3KW
Place of Origin
Zhejiang, China
Brand Name
KD
Model Number
GD8-200A
Certification
CE, ISO9001, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Automatic Bag-given Tomato Ketchup Packaging Machine

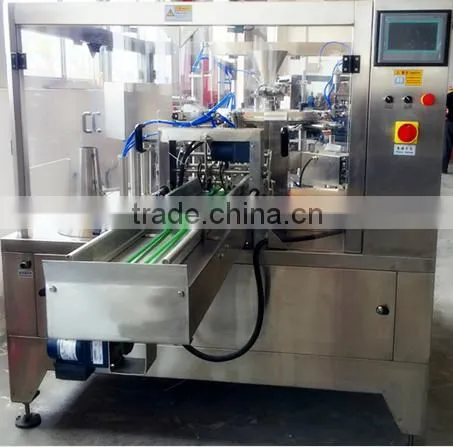

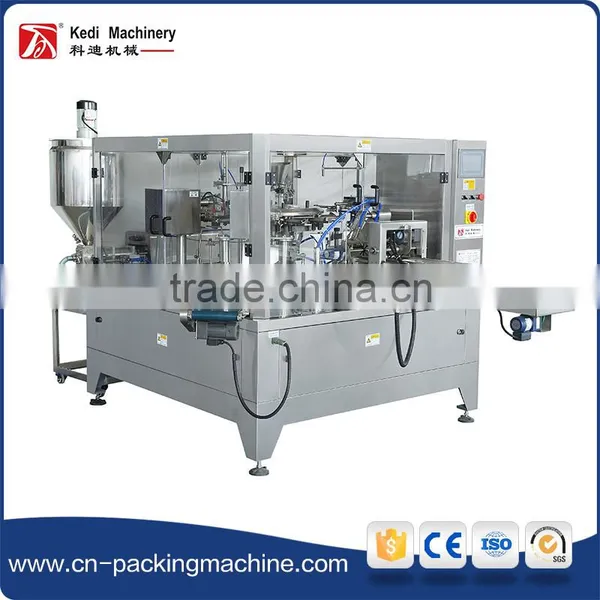

Product display
Main Technical Param
Model |
GD8-300A | GD8-250A | GD8-200A |
Working position |
eight-working position | ||
Pouch material |
Laminated filmPPPE etc. | ||
Pouch pattern |
Stand-up(thickness of botom≥0.1mm stand-up bag), flat | ||
Pouch size |
W:200-300mm L:200-450mm |
W:150-260mm L:150-350mm |
W:100-210mm L:100-350mm |
Speed |
8-30bag/min | 8-35bag/min | 10-50bag/min |
Weight |
1500KGS | 1400KGS | 1200KGS |
Voltage |
380V 3phase 50HZ/60HZ | ||
Total power |
4KW | 4KW | 3KW |
Compress air |
0.6 cubic feet per second ( provided by the user) | ||
Product Description
1.Easy to operate,PLC control,the man-machine interface is friendly.
2.Variable frequency speed regulation,used the variable frequency speed regulation device ,can be adjusted within the range according to the needs of the reality in production .
3.Easy to adjust the pouch width ,controled by motor,only by a button you can sync control 8 sets of clip.
4.The material level is all made of stainless steel 304 or food degree plastic ,according with hygienic requirement.
5.Use no oil vacuum pump,avoid polluting the environment in the pollution .
6.Easy to clean ,the machine table can be washed.
Safety Device:
1.No puoch or open error,no filling .
2.No pouch or no filling ,no sealing .
3.The safety door open,alarm.
4.No coding ribbon,Emergency stop and alarm.
5.The air pressure not enough ,alarm.
6.The sealing temperature abnormal ,alarm.
Working Process
