Fish Meal Powder Bag Packaging Machine

Fish Meal Powder Bag Packaging Machine photo-1
Fish Meal Powder Bag Packaging Machine photo-2
Fish Meal Powder Bag Packaging Machine photo-3
Fish Meal Powder Bag Packaging Machine photo-4
Fish Meal Powder Bag Packaging Machine photo-5
Fish Meal Powder Bag Packaging Machine photo-6
US$ 29,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Other, Food, Machinery & Hardware
Packaging Type:
Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Other, Food, Machinery & Hardware
Packaging Type Pouch, Stand-up Pouch
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Power 4.5KW
Place of Origin Zhejiang, China
Brand Name KEDI
Model Number GD8-200B
Weight 1700KGS
Certification CE,IS9001,SGS
After-sales Service Provided Engineers available to service machinery overseas

Fish Meal Powder Bag Packaging Machine

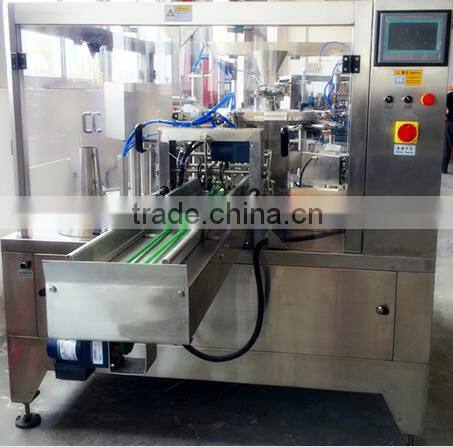

Product display

Fish Meal Powder Bag Packaging Machine

 Fish Meal Powder Bag Packaging Machine

Main Technical Param

Fish Meal Powder Bag Packaging Machine

Main technical parameters

Model
 GD8-300B  GD8-250B  GD8-200B
Working position
 eight-working position
Pouch material
 Laminated filmPPPE etc.
Pouch pattern
 Stand-up pouch with zipper
Pouch size
 W:200-300mm
 L:200-450mm
 W:150-260mm
 L:150-350mm
 W:100-210mm
 L:100-350mm
Speed
 8-30bag/min  8-35bag/min  10-50bag/min
Weight
 1500KGS  1400KGS  1200KGS
Voltage
 380V 3phase  50HZ/60HZ
Total power
 4KW  4KW  3KW
Compress air
 Each 0.6 cubic meters ( provided by the user)





Product Description

Fish Meal Powder Bag Packaging Machine

Function and Characteristics

1.Easy to operate,PLC control,the man-machine interface is friendly.

2.Variable frequency speed regulation,used the variable frequency speed regulation device ,can be adjusted within the range according to the needs of the reality in production .

3.Easy to adjust the pouch width ,controled by motor,only by a button you can sync control 8 sets of clip.

4.The material level is all made of stainless steel 304 or food degree plastic ,according with hygienic requirement.

5.Use no oil vacuum pump,avoid polluting the environment in the pollution .

6.Easy to clean ,the machine table can be washed.

Safety Device:

1.No puoch or open error,no filling .

2.No pouch or no filling ,no sealing .

3.The safety door open,alarm.

4.No coding ribbon,Emergency stop and alarm.

5.The air pressure not enough ,alarm.

6.The sealing temperature abnormal ,alarm.

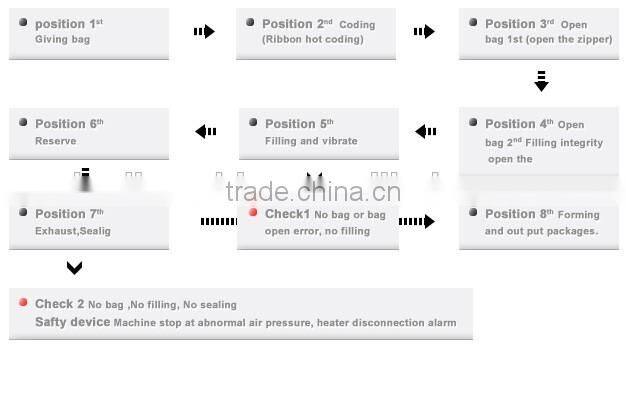

Working Process

Fish Meal Powder Bag Packaging Machine

Working Process

Fish Meal Powder Bag Packaging Machine
