Specifications
Specifications:1. Dry and sanitary ice tube;
2. CE approved;
3. PLC control system;
4. Energy saving

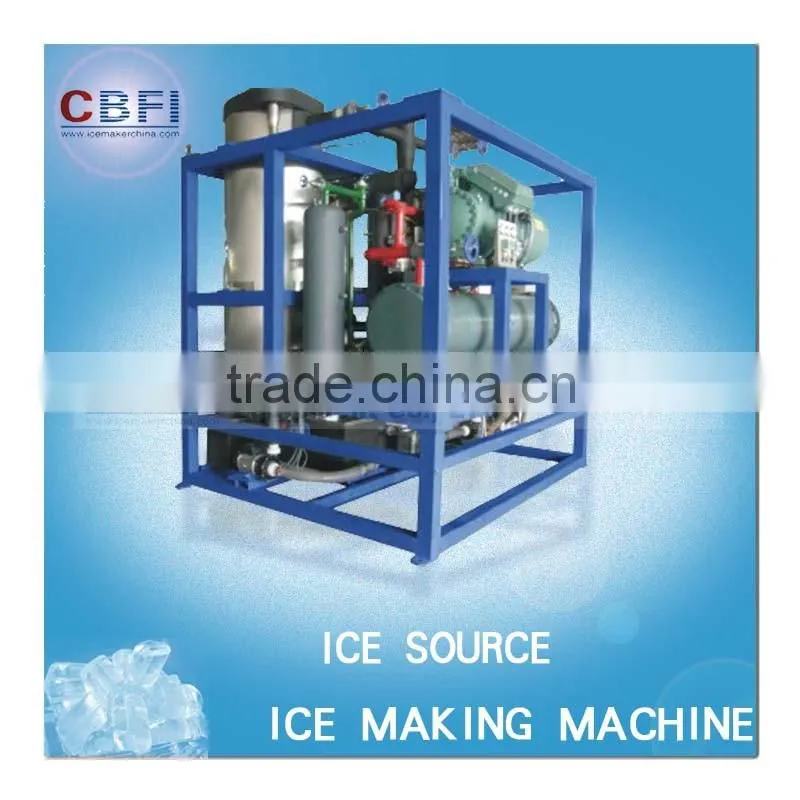

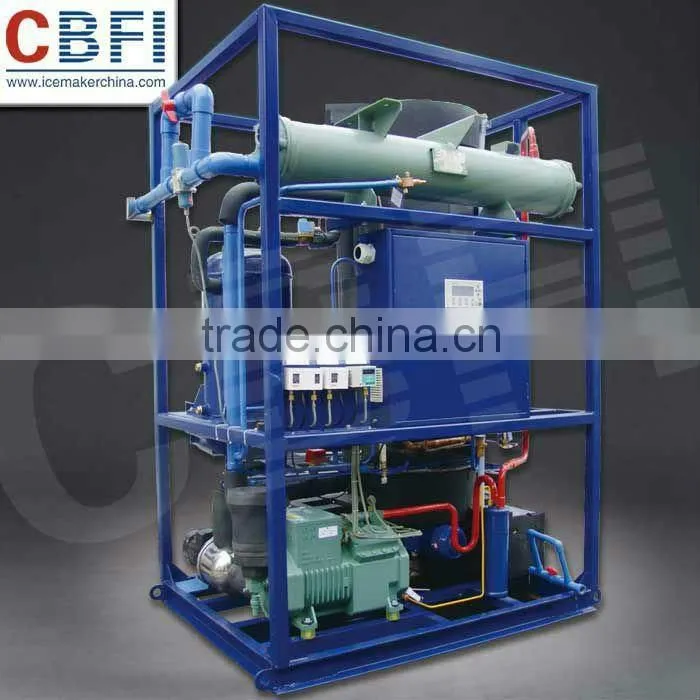

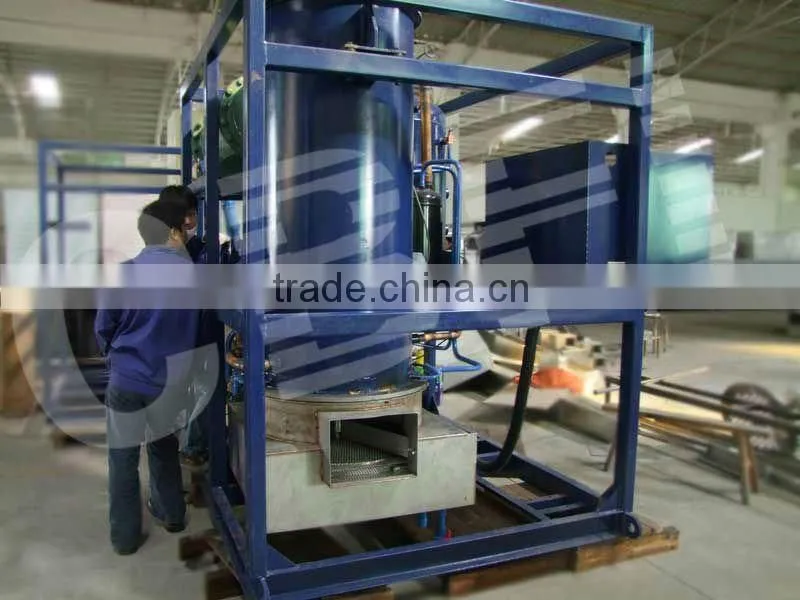

Hot sale tube ice making machine (3000kg/day)
Tube Ice Machine Features:
1. Use hot Freon gas to defrost and harvest ice, and the whole process takes only 150~180 seconds.
2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
4. The use of stainless steel SUS304, accords with the health and safety requirements.
Tube ice
Main model for commercial tube ice machine:
Item No. |
Production |
Compressor Rated Power |
Circulating Water Pump Power |
Cooling Water Pump Power |
Cooling Fan Power |
Ice Cutter Motor Power |
Machine Dimension |
Weight of Machine |
|
Ton/24H |
KW |
KW |
KW |
KW |
KW |
L*W*H |
KG |
TV10 |
1.0 |
3.69 |
0.37 |
1.1 |
0.18 |
0.75 |
1320*950*1800 |
900 |
TV20 |
2.0 |
7.11 |
0.55 |
1.1 |
0.18 |
0.75 |
1400*1100*1800 |
1200 |
TV30 |
3.0 |
9.68 |
0.55 |
1.1 |
0.37 |
0.75 |
1500*1100*1950 |
1500 |
TV50 |
5.0 |
17.47 |
0.55 |
1.5 |
0.75 |
0.75 |
1600*1250*2200 |
1800 |
TV100 |
10.0 |
30.89 |
0.75 |
2.2 |
1.5 |
1.5 |
1700*1300*2200 |
3500 |
TV150 |
15.0 |
42.6 |
1.5 |
2.2 |
2.2 |
1.5 |
3000*1500*2200 |
4250 |
TV200 |
20.0 |
53.2 |
1.5 |
2.2 |
2.2 |
1.5 |
3500*1500*2200 |
6500 |
Applicable working condition: environment temperature 5°C ~45°C, supply water 0°C~28°C. It is common that real production of machine will have a little change according to change of water temperature and ambient temperature.
Certificates:
If you are interested in our products, please feel free to contact us. We would be very glad to be on service for you. As the most professional ice machine manufacture in China, we are pleased to do our best offer to open a good market for you. We are definitely to contact you within 24 hours after getting your inquiry.
