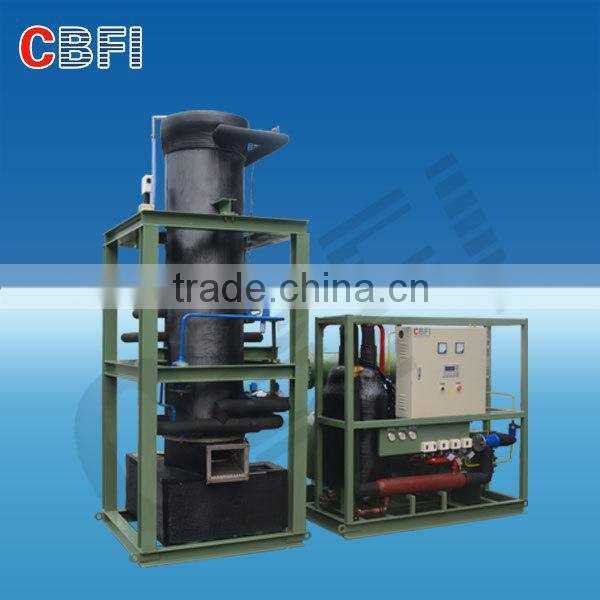

10 Tons Tube Ice Maker For Sale

Name: 10 Tons Tube Ice Maker For Sale
Brand: CBFI
Availability: InStock

FOB Price

US$ 1 - 1,000,000 / Set

1 Set(Min. Order)

Port Guangzhou port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Capacity	10000kg/24hours
Place of Origin	Guangdong, China	Brand Name	CBFI
Model Number	TV100	Ice Shape	Other, tube ice
Voltage	380V and other special power supply	Power(W)	29.2KW
Dimension(LWH)	230015501800	Weight	3500kg
Certification	CE	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

10 Tons Tube Ice Maker For Sale

CBFI has specialized in the design, manufacturing and trade of tube ice machines for many years. TV Series Tube Ice Maker Machine has enjoyed its popularity around the world for our advanced technology, good quality and prompt after-sales service, mainly in South East Asia, Middle East and Africa. The capacity of TV Series Tube Ice Maker Machine ranges from 1 ton to 30 tons per day.

Product Model
Model	Daily Production	Rated Power	Ice Cutter Power	Circulating Water Pump Power	Cooling Water Pump Power	Machine Dimension	Machine Weight
NO.	TON/24H	KW	KW	KW	KW	*WHL(MM)*	KG
TV10	1.0	4.28	0.75	0.55	1.1	11009001760	900
TV20	2.0	7.77	0.75	0.55	1.5	125010001950	1200
TV30	3.0	12.33	0.75	1.1	1.5	140011002200	1500
TV50	5.0	21	1.5	1.5	2.2	160014002250	1800
TV100	10.0	29.2	1.5	1.5	4	230015501800	3500
TV150	15.0	49	1.5	2.2	5.5	270019502250	4250
TV200	20.0	58.5	2.2	1.5	5.5	310022002250	6500
TV300	30.0	87.6	2.2	2.2	15	300022002500	7200

Features:

1)Perfect design: adopting 3D simulation assembly, compact structure, small land area.

2)Full automatically: the whole ice making process is automatically controlled by PLC system.

3)Healthy ice: all the parts which contact with ice making water is made of SUS304 material to ensure totally clean ice

4)Good sealability:CBFI’s patent hydraulic expansion technique ensure the evaporator a good sealability.

5)Fast ice dropping:the whole ice dropping process takes within 120 seconds making full use of hot Freon gas in the system.

Detailed Images

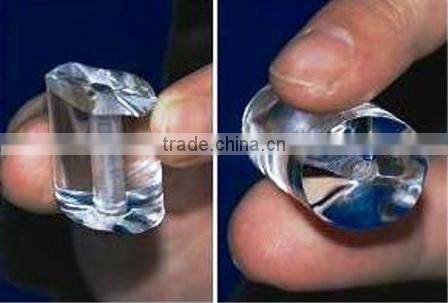

Tube Ice

Features:

1.Three ice diameter sizes for optional: 22mm,28mm,35mm.

2.Diamand grade edible tube ice can be directly used to freeze drinks,mix wines, cool food, make ice pastries and keep fresh.

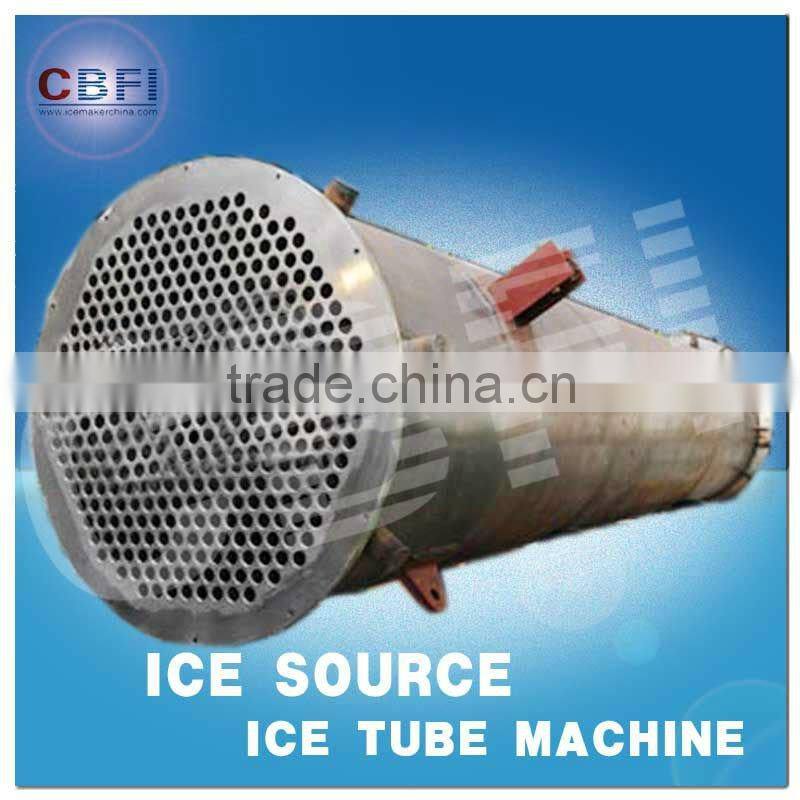

Tube Ice Machine Evaporator

Features:

1.Adopting Stainless Steel 304 ensures totally clean tube ice.
2.The adoption of middle partition can avoid ice forming on the bottom of the evaporator to make sure the ice dropping fluently.

3.Using patent hydraulic expansion technique to ensure the evaporator a good sealability.

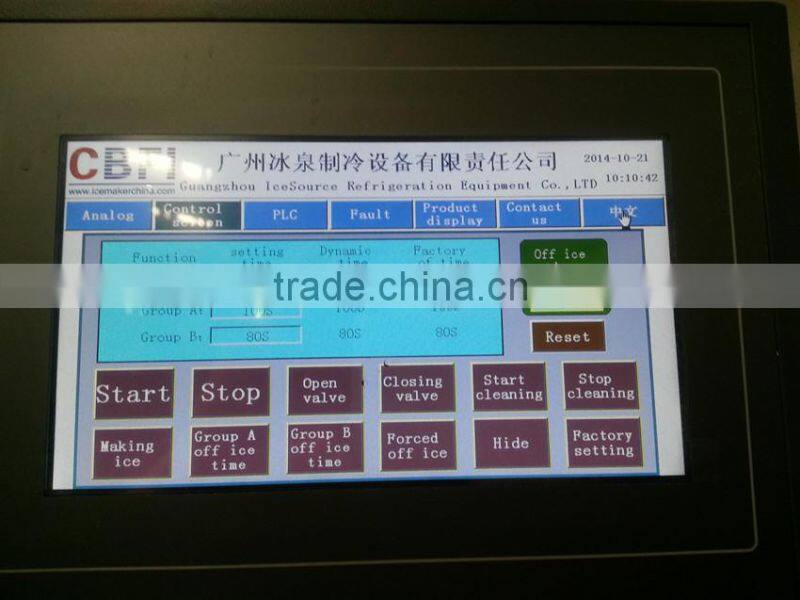

Touch Screen

Features:

1. Easy to operate like a smartphone.

2. Display the machine working condition clearly.

3.Malfunction information is available to see when there is a problem.

Our Service

1)Warranty: warranty is one year. You can call us on phone and our technician can go to your country to service when there is a problem, you need to pay the cost.

2)Manual book: We will offer detail instruction book with clear drawing to tell you how to install and operate the machine.

3)We can teach the customer's technician how to operate and install machines if he come to our factory in Guangzhou.

4) It's possible for our technican to go to your country for the installation and they are experienced in installating the ice machine for customers in different countries.

5) If you are interested in our products, please contact us. We would be very glad to give you our best service.

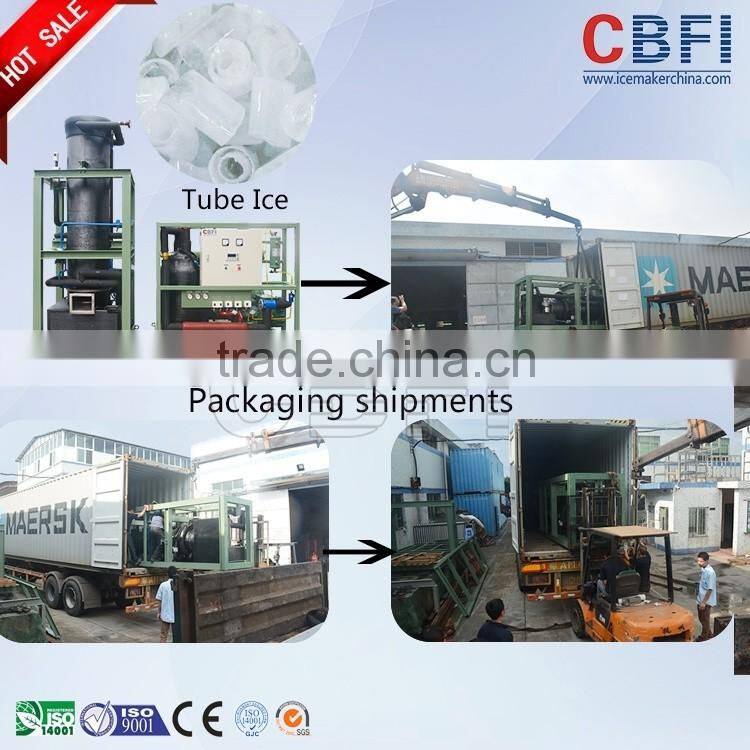

Packing & Delivery

Packaging
Size	2300mm(L)1550mm(W)1800mm(H)
Weight	3.5T
Packaging Details	1.Integrated design can be delivered directly. 2.Machine installed completely and strictly tested in our factory before shipping.
Delivery	20 feet container
