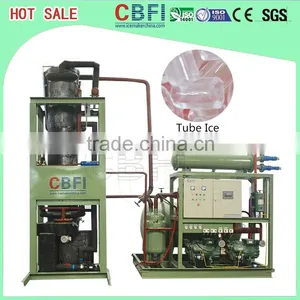

CBFI Compact Design Ice Tube Manufacturing Price For wholesale

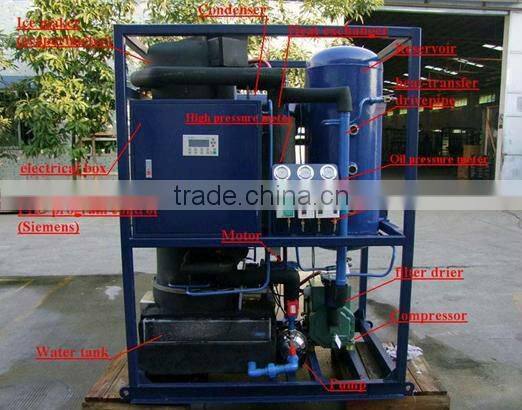

Part I.About Tube Ice Plant Machine:

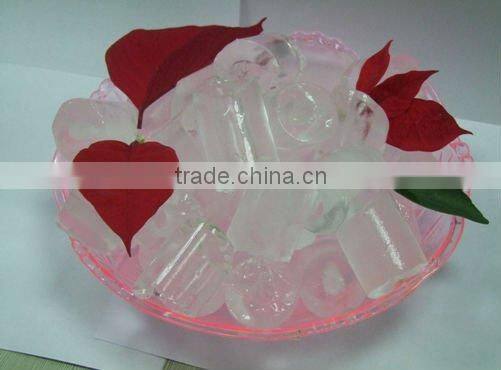

1. Ice tube machine for produce food grade ice too, tube ice is edible ice.
2. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,
length of ice is about 30mm to 50mm.
3. Daily capacity of ice tube machine can be from 1ton to 20tons.

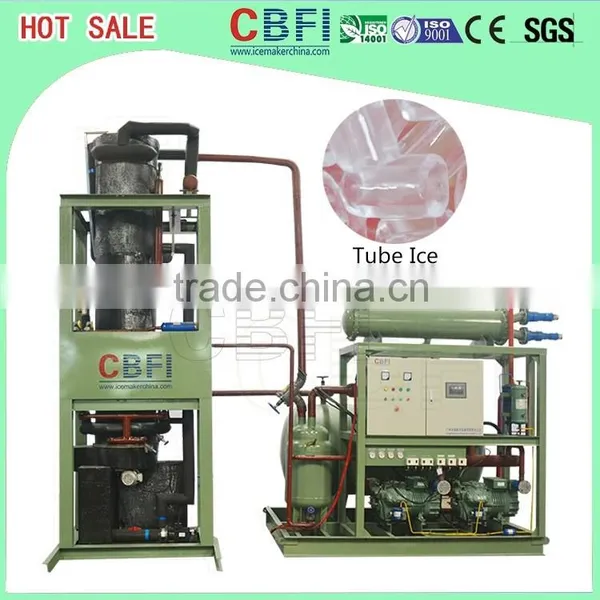

Part II. Tube Ice Plant Machine Different Model:
Item |
Ice Making Capacity |
Compressor Power |
Circulating WaterPump Power |
Cooling Water Pump Capacity |
Cooling Fan Capacity |
Ice Cutter Motor
|
Machine Dimension |
Weight of Machine |
No. |
Ton/24H |
KW |
KW |
KW |
KW |
|
L*W*H(mm) |
KG |
TV10 |
1.0 |
4.28 |
0.37 |
1.1 |
0.18 |
0.75 |
1320*950*1800 |
900 |
TV20 |
2.0 |
7.77 |
0.55 |
1.1 |
0.18 |
0.75 |
1400*1100*1800 |
1200 |
TV30 |
3.0 |
12.33 |
0.55 |
1.1 |
0.37 |
0.75 |
1500*1100*1950 |
1500 |
TV50 |
5.0 |
16.04 |
0.55 |
1.5 |
0.75 |
0.75 |
1600*1250*2200 |
1800 |
TV100 |
10.0 |
29 |
0.75 |
2.2 |
1.5 |
1.5 |
1700*1300*2200 |
3500 |
TV150 |
15.0 |
49.32 |
1.5 |
2.2 |
2.2 |
1.5 |
3000*1500*2200 |
4250 |
TV200 |
20.0 |
58 |
1.5 |
2.2 |
2.2 |
1.5 |
3500*1500*2200 |
6500 |
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation.
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition: water temperature: 23Centi degree, evaporate temperature:-12Centi degree, condensing temperature 40Centi degree, reference valve under 50Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.

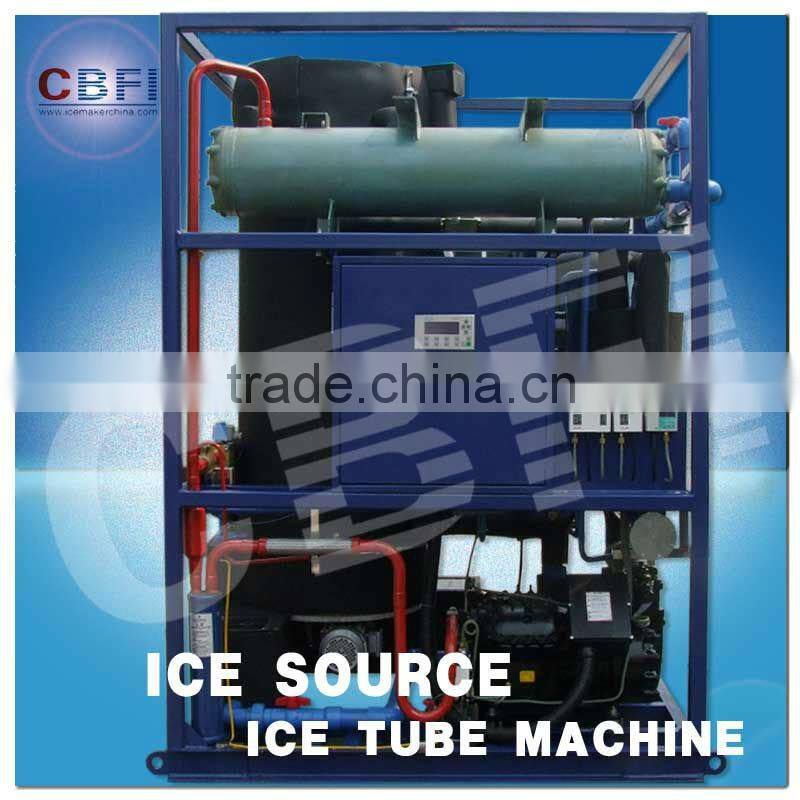

Part III .Pictures show

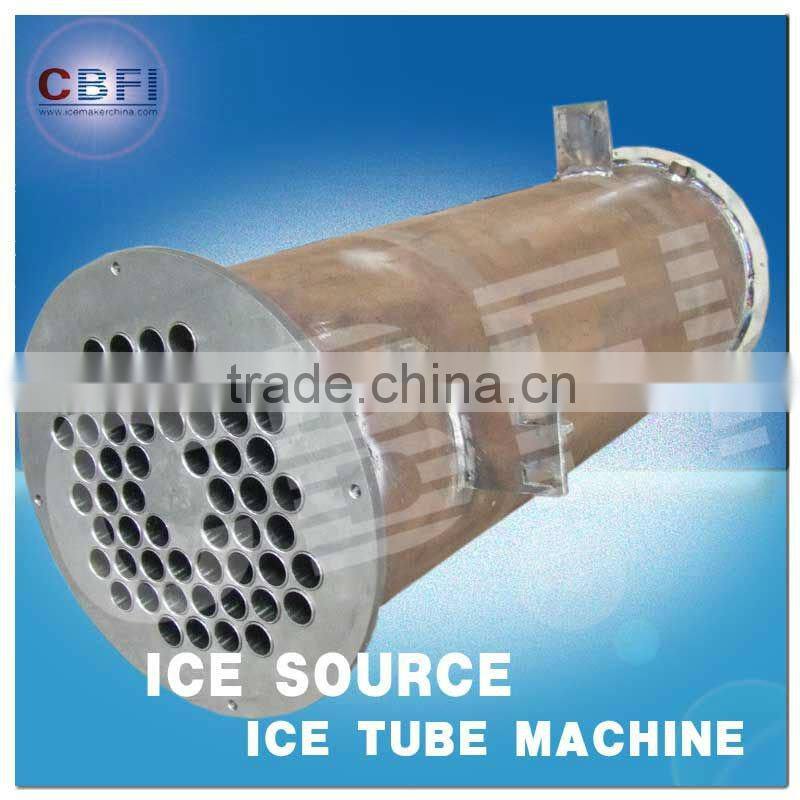

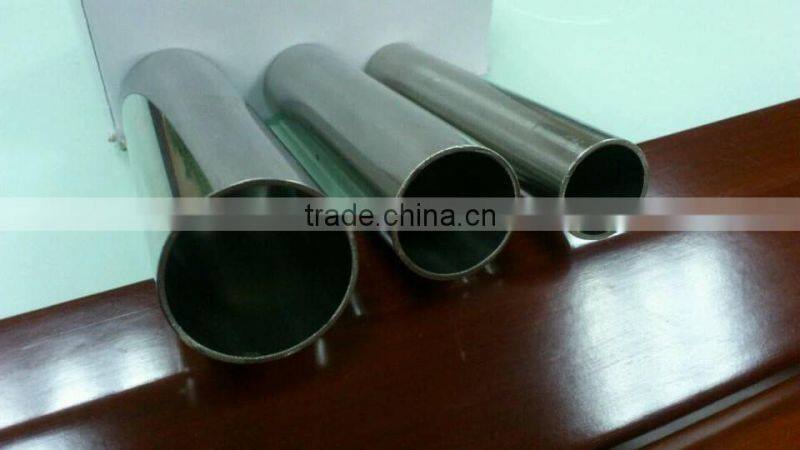

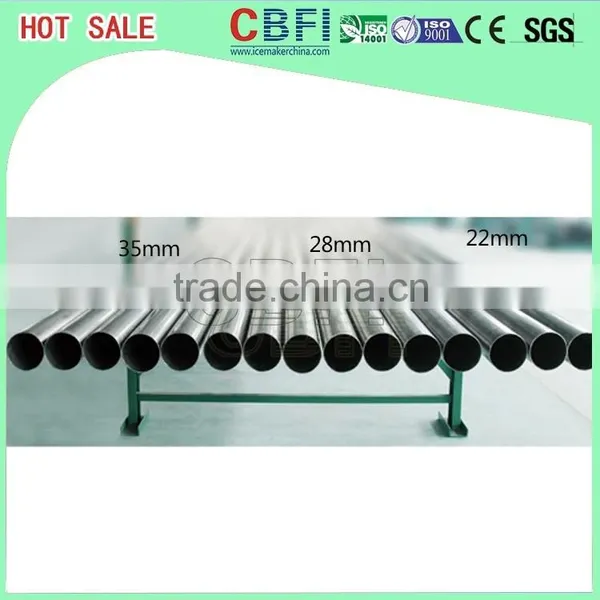

Ice Mould .Tube ice has three sizes.
1. Our factory is located in Guangzhou city, China. It is near the Baiyun International Airport and it is closed two famous port of south China, Huangpu Port and Nansha Port. It is convenient
for load and transport goods and for customers to come to visit our factory.
2. We started in researching, developing and selling all kinds of ice machines since 2004.
3. Our main products are: cube ice machine, tube ice machine, block ice machine, plate ice
machine, flake ice machine and cold room.
4.We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand,
Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico,
Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon,
Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
Welcome more and more customers come to us, visit our
factory and give us suggestion, let us make progress,
thanks!
certifications
1. We have a large aftersale service team. All the technicians are very experienced, they
always go to different countries to serve customers like you.
2. The warranty of the whole machine is 12 months.
1. Standard wooden case.
2.Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water
pipe fittings.
3. Machine come into use, customers only need prepare power for the machine.
4. All required components for installing the machine will be provided.
1.Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2.Q:do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3.Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
4.Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
