Specifications
Plate ice maker:1. CE approved.
2. Edible standard.
3. Energy saving by 30%
4. PLC programmable monitor,
PLATE ICE MACHINE:

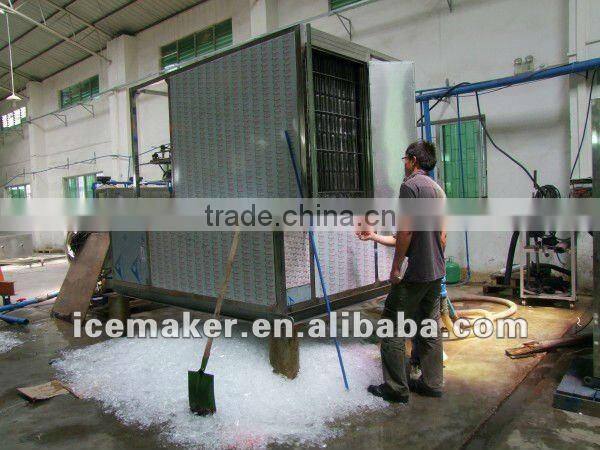

Large plate ice machine working theory:
When the large plate ice machine begins operating normally, the water in the tank below is pumped from the cold water tank to the cold water sprinkler, and then evenly sprinkled on the surface of the evaporator. Through the cycle working of the refrigerant, some water is created into plate ice, while the water which does not become ice returns to the cold water tank below and waits for the next water cycle. After a period of time the water cycle and refrigeration stops and the water and overheating refrigerants gas begin a heat exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle.

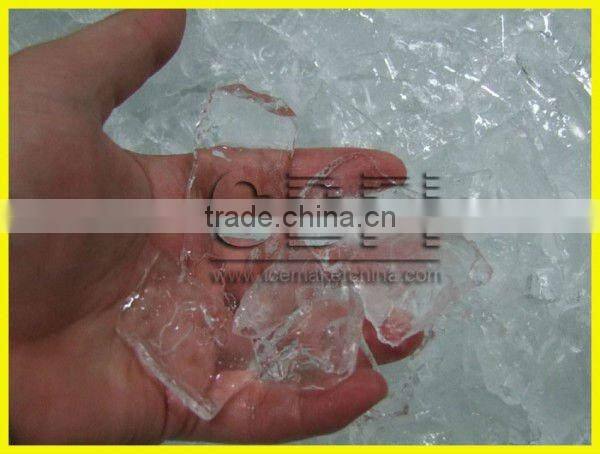

Introduction of plate ice: Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life.
Working Theory of Plate Ice Machine:
Mastering two unique technologies: flat-plate heat exchange technology & circulating heat gas for ice dropping technology. The new-type ice making machine made via unique ice making technology and special ice dropping has solved the limitation of traditional ice making machine by frozen drum, and reaches the international leading level.
Prominent energy saving function:
HYF series plake ice maker machine only has 60KWH power consumption per ton, while another type plake ice maker machine in the current market which makes ice by mechanical ice dropping needs 110KWH power consumption per ton. The energy-saving rate can reach more than 30% and own great economic value.
Quality Advantages for Plate Ice Machine:
The evaporator of plake ice machine is made of aluminum alloy 304 stainless steel with stable chemical properties and reasonable structure. It doesn’t exist in abnormal oil return, so that the compressor will not be burnt out. Besides, the evaporator doesn't need rotating. It has no refrigerant leak, no maintenance, no mechanical ice dropping structure, and no mechanical wear. It can guarantee the machine work in the long time.
Water source of plate ice machine can be either fresh water or sea water. It doesn't need to change any components for them. So HYF machine can not only meet the needs for food process, but also can be used for pelagic fishery and transportation.
Easy operation:
Stable in ice production; PLC editable control; only the capacity needs selecting and confirming. Other procedures will be automatically finished under PLC program control. It doesn't need special engineer to monitor.
Application Field: Large plate ice machine has been developed for large-scale ice making applications and it widely used in concrete project, agriculture and fishing industry, fisheries production , aquatic products processing ,aquatic fishing , transportation ice using ,meat product processing , supermarket display, fresh-keeping, food process, medicine, chemical and dye , fermentation engineering, construction project concrete cooling , mine cooling.
Features of big plate ice machine:
- We use aluminum alloy plate as the evaporator, it conforms to the sanitary security requirements.
-Ice dump and water drainage function makes plate ice more clean and transparent.
-It is convenient to install and maintain because of its modular equipment.
- Strong ability to keep cold, super reliability, high efficiency, and supplying stable and reliable low-temperature heat exchange fluid.
- All-automatic control, few operators needed, design of low breakdown rate and small sum of maintenance expense.
-By using heat gas to drop ice and the process only needs 120 seconds.
-Ice making time adopts time control, which can be set to adjust the thickness of the ice.
If you are interested in our products, please contact us. We would be very glad to be on service for you. As the most professional ice machine manufacture in China, we are pleased to do our best offer to open a good market for you. We are definitely to contact you within 3 days after getting your inquiry.
