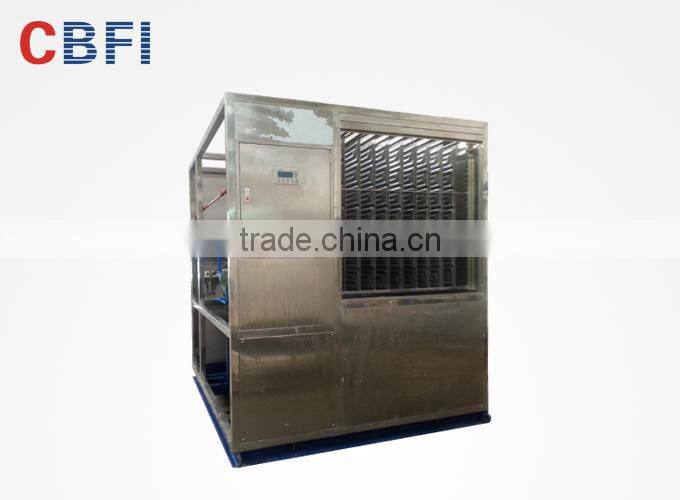

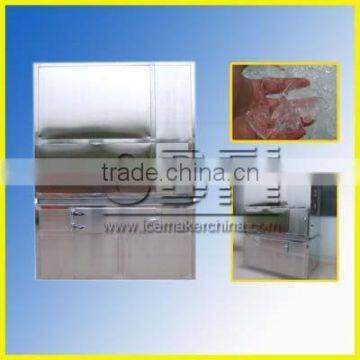

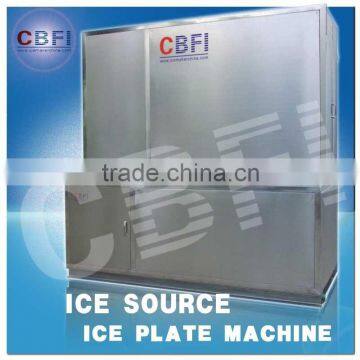

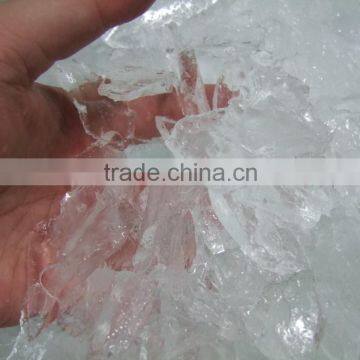

plate ice maker
Daily capacity: 1 ton to 20 tons per set/24 hours.
Plate ice machine in our customer place.
HYF Series Plate Ice Machine:
Item No. |
Production |
Rated Power |
Circulating Water Pump Power |
Cooling Water Pump Power |
Cooling Fan Power |
Machine Dimension |
Weight of Machine |
|
Ton/24H |
KW |
KW |
KW |
KW |
L*W*H |
KG |
HYF10 |
1.0 |
3.69 |
0.37 |
0.75 |
0.37 |
1900*1370*1660 |
800 |
HYF20 |
2.0 |
7.11 |
0.55 |
0.75 |
0.55 |
2400*1600*1700 |
1200 |
HYF30 |
3.0 |
9.68 |
0.55 |
1.5 |
0.75 |
2400*1600*1800 |
1350 |
HYF50 |
5.0 |
17.47 |
0.55 |
1.5 |
1.5 |
2500*1860*1840 |
1500 |
HYF100 |
10.0 |
26.6 |
1.1 |
2.2 |
1.5 |
2500*2200*2150 |
2500 |
HYF150 |
15.0 |
48.3 |
1.1 |
3.7 |
2.2 |
4000*1800*2200 |
3800 |
HYF200 |
20.0 |
63 |
1.5 |
3.7 |
3.75 |
4000*2040*2200 |
4650 |
Processing of the machine in our factory.
Application of plate ice:
1.Plate ice is dense ice, high cleaning ability, big refrigeration quantity, and ice thickness is adjustable.
2.Its function become increasingly important in industry, agriculture and fishing industry.
Features of ice machine:
The shape of the ice is a plate ice, theevaporator have two technologies: flat liquid film heating exchange technology and double-side formed ice technology and have many S-type heating pipes which design according to the hot-runner and adopt the heating dropping ice technology, so the machine not have any wear and tear.
The ice making system is the multiple system that making ice dependent and have the dropping ice function, shorten the ice-making period, the full equipment have good anti-corrosive function, anti-shock and resist pressure performance. It realized that produced one ton ice just consumed about 60KW power, it has the incomparable advantage of the flake ice machine and the others ice machine.
Testing of the machine in our factory.
If you have any questions or interest in our plate ice machine, please feel free to contact me.
Your inquiry will be replyed within 24 hours.
