Used Machinery Ice Plate Machine for 3 Tons Per Day
- 15 Set / Sets per Month
- Guangzhou
- T/T
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 1000KG | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | HYF10 | Ice Shape: | Other, plate ice |
Voltage: | 220v/60hz/3ph or 380v/50hz/3ph | Power(W): | 3.69kw | Dimension(L*W*H): | 1900mmX1370mmX1660mm |
Weight: | 860kg | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Ice plate machine
1.About Plate Ice Machine
Energy saving is by more than 30%.
Daily capacity can be from 1ton to 20tons.
Ice thickness around 6mm to 8mm, it is adjustable.

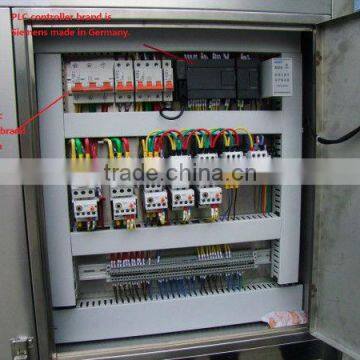

Easy to operate: PLC programmable monitor, no need manpower.
2.Plate Ice Machine Different Model:
Model | Output | Compressor Power | Water Pump Power | Water Consumption | Outer Dimension | Net Weight |
| Ton/24h | KW | KW | L/H | L*W*H (mm) | Kg |
HYF10 | 1 | 2.51 | 0.4 | 42 | 1900*1370 *1665 | 660 |
HYF15 | 1.5 | 3.93 | 0.4 | 63 | 1900*1470* 1700 | 730 |
HYF20 | 2 | 5 | 0.75 | 83 | 1900*1550* 1700 | 750 |
HYF25 | 2.5 | 5.25 | 0.75 | 104 | 1900*1650*1700 | 890 |
HYF30 | 3 | 7.5 | 0.75 | 125 | 1900*1770*1800 | 1100 |
HYF40 | 4 | 11 | 0.75 | 167 | 2500*1800*2000 | 1500 |
HYF50 | 5 | 15 | 1.1 | 208 | 2500*1850* 2100 | 1900 |
HYF60 | 6 | 18.75 | 1.1 | 250 | 2500*1890*2100 | 2100 |
HYF80 | 8 | 22.5 | 1.5 | 333 | 2500*1920*2100 | 2500 |
HYF100 | 10 | 30 | 2.2 | 417 | 2500* 2100*2530 | 3100 |
HYF120 | 12 | 37.5 | 2.2 | 500 | 2500 2200*2300 | 3320 |
HYF150 | 15 | 43 | 3.7 | 625 | 2500* 2200*2480 | 3500 |
HYF200 | 20 | 59 | 3.7 | 833 | 3470* 2200*2480 | 4700 |
HYF250 | 25 | 73 | 3.7 | 1042 | 5100* 2200* 2480 | 4900 |
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation.
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition: water temperature: 23Centi degrees, evaporate temperature:-12Centi degrees, condensing temperature 40Centi degrees, reference valve under 50Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.

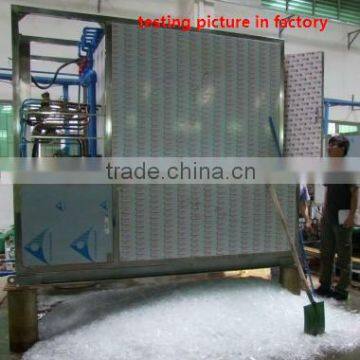

Product picture show:
1. We have a large aftersale service team. All the technicians are very experienced,
they always go to different countries to serve customers like you.
2. The warranty of the whole machine is 12 months.
1. Standard wooden case.
2.Completely ice machine contain: ice machine, cooling tower, water pump, water pipes
and water pipe fittings.
3. Machine come into use, customers only need prepare power for the machine.
4. All required components for installing the machine will be provided.
1.Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2.Q:do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3.Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
4.Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
