Handheld Data Capture Device, QR Barcode Reader in Membership Cards(X6)

Specifications

1.Handheld Data Collecter PDA Terminal
2.1D/2D Barcode Scanner
3.Free SDK, IP65
4.Rfid Reader
5.Fingerprint Reader, Camera

Brief:

 PDA X6 is a cost-effective, rugged mobile handheld data collection terminal product series, high performance, high durability, high openness, can meet the needs of the long use in harsh environment. Especially suitable for warehousing logistics, supply chain, fixed assets, and goods traceability information management system of mobile data acquisition



 Features:

 The model X6 is a mute-functional industrial rugged handheld PDA with powerful functions.

 1. Windows CE or Android OS optional combined with free SDK simplify your secondary development.

 2. High level CPU 1G Hz SAMSUNG ARM Cortex A8.

 3. High-capacity RAM 256MB or 512MB, ROM 512MB, MSD 32GB max.

 4. 3.5" big screen with TFT 480*640 VGA or 320*240 QVGA optional.

 5. Obligate space highly expandable for Barcode, RFID, SAM, OCR etc

 6. Long life Build-in Li-battery(4000 mAh) makes it easy to use anytime anywhere.

 7. IP65 approved



Detail:

Performance
CPU	SAMSUNG ARM Cortex A8 1GHz
RAM	Mobile DDR 256MB or 512MB
OS	Android 4.0 or Windows CE 6.0 ER3
Keyboard	34 Keys
Interface	USB 2.0 OTG, USB Host 1.1,SPI, RS-232
Memory	ROM	MLC NAND Flash 512MB
	EXPANSION	Micro SD,supports Max 32GB
Bluetooth	Class V2.1-EDR
WIFI (Optional)	802.11b/802.11g/802.11n
3G	GSM/GPRS/WCDMA HSDPA optional
GPRS	U-block NEO-6th,Supports AGPS, DGPS,RTK can be customized.
Camera	Vibration Motor & LED Indicator
	3.0Mega,ixelsAUTOFOCUS,Flashlight
Functions
Barcode scanner	1DSymbol SE95(Option 2D Symbol SE4500or Honeywell IT5100)
Fingerprint(Optional)	508 DPI meets (Fingerprint Module can be removable)
RFID(Optional)	HF 13.56Mhz, ISO/IEC 14443A/B,ISO15693
	LF 125k,134.2khz ISO-11784/11785
	UHF 860~950Mhz EPC Gen2,ISO180006
MRZ OCR Scanner	Snapped MRZ OCR Scanner,ICAO Documents 9303 standard.
Physical characteristics
Power	DC5v
Battery	4000mAH Li-ion(Rechargeable)
Storage Temp.	_20°C ~ +60°C
Operation Temp	_10°C~ +45°C
Operation Hum	5% ~ 90%
Size	192x82.0x30(mm) ;228 x 82 x 30(mm) (with fingerprint )
Weight	around 300g(without fingerprint);330g (with fingerprint)
Accessories	1Batterym,1 Stylus with hand strip,1 USB cable,1 AC charger, Optional,S232 cable,Cardle,Car charger,USB host Ethernet Cable
Endurance Ability	Sleeping		More than 5days
	Working		More than 8 hours
	Recharge Time		around 5 hours
Certification	CE UN38.3 ROHS
Sealing Standard	IP65
Drop Durability	Withstand1.5meterdrop on to concrete(without fingerprint)



Solutions:

 Free SDK is provided for customers' secondary development; also we can customize the application software if required. As specialized in the field for many years, we have accumulated a lot of experiences in the following field.

1) Hotel/Supermarket/Retail/Kiosk/Restaurant/Convenience store management.

2) Money Transfer, E-Wallet, E-voucher, E-top-up, Instant Mobile Remittance.

3) Travel & Ticket billing for Air Ticket, Railway, Subway, Taxi, Bus, Movie.

4) Bill Payment in Electricity, GAS, Insurance, Charity.

5) Prepaid Recharge for Gift card and Loyalty card.

6) Lottery, Surveying, and other applications.

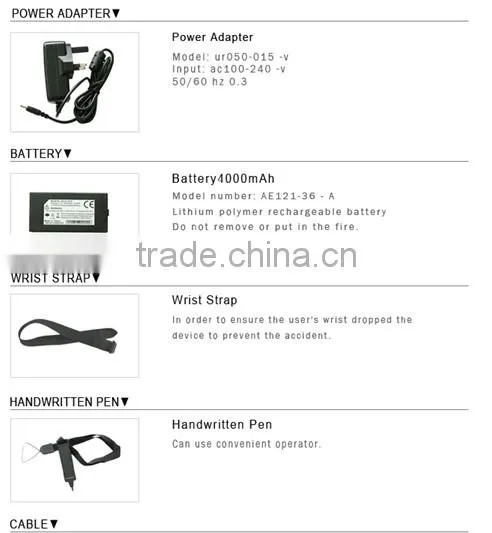

Accessories:





Pictures:

1, Rfid Reader

2, Fingerprint Reader



3, QR(2D) Barcode Scanner



4, New in gift package
