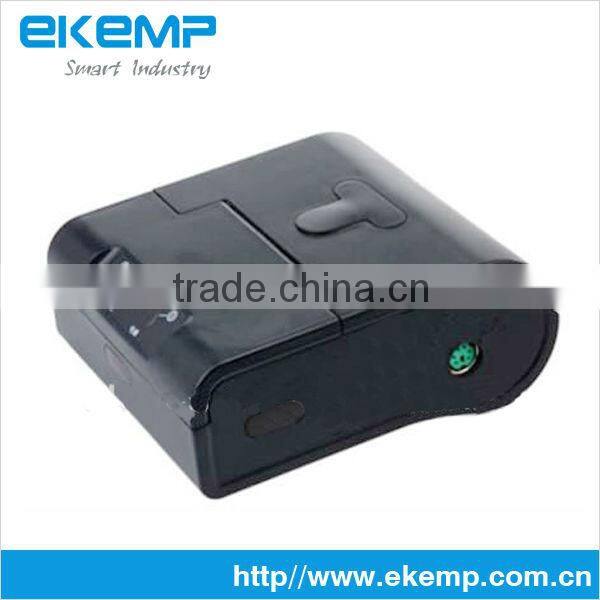

SMS Printer with Bluetooth, GSM and GPRS(MP500)

Technical Parameters

Printing Method

Dot Matrix

Resolution

5 dots/mm(127dpi),240 dots/line

Effective Printing Width

48mm

Printing

Speed 1.2 lps

Character Set

ASCII,GB18030(Chinese)

Print Font

ANK: 7 x5/12 x6/16 x8, Chinese: 12 x 12/16 x 16

Self-defined Character

Yes

Graphic

Support bitmap downloading

SDK

Symbian/Windows Mobile/Windows CE/Blackberry/Android

Driver

Windows XP/Windows Vista/Windows 7

Paper Reference

Type

Plain paper

Width

57.5± 0.5mm

Thickness

0.06 to 0.08mm

Roll Diameter

40mm(Max.)

Supply Method

Semi-auto Loading

Cutting Method

Manual

Paper End Sensor

Yes

Black Mark Location

Yes

Auto Sleeping

Yes

Interface

Bluetooth,RS-232,IrDA,optional

Battery

DC7.4V,1.5A rechargeable Li-ion battery

Charger

DC12V/2A

TPH

1.5 Million lines

Working Atmosph.

Operating Temp.

-10°C~50°C

Storage Temp.

-20°C~60°C

Operating R.H.

Relative Humidity 10%-80%(non condense)

Storage R.H

Relative Humidity 10%-90%(non condense)

Impact Proof

Withstands up to 1.5M drops to concrete, room temperature and default configuration; multiple 1.2M drops to concrete, all axis, and across operating temperature range.

Product Size

112mm(L)*98mm(W)*46mm(H)

Weight

350g
