Automatic nail making machine

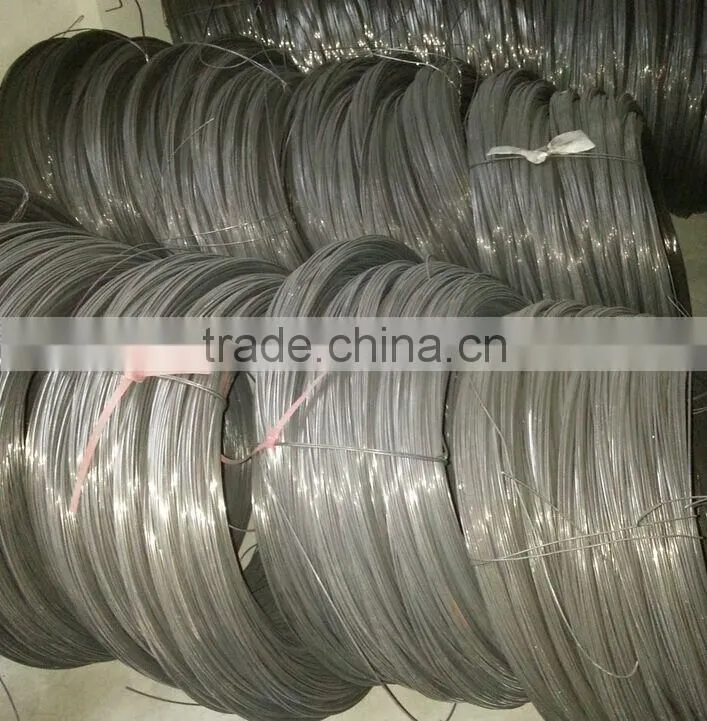

It is used for producing various normal nails and special nails.Raw materials can be normal wire,
new metal wire,waste rebar,scrap steel bar,hard-drawn wire,waste electrode,etc.
Process of nail making:
If for waste wire:
wire straightening→ Butt welding→Nail Making →Polishing→thread rolling→coil nail making
If for new wire:
Butt welding→sharpening mill→Wire Drawing → Nail Making →Polishing (cutter polisher)
→thread rolling→coil nail making

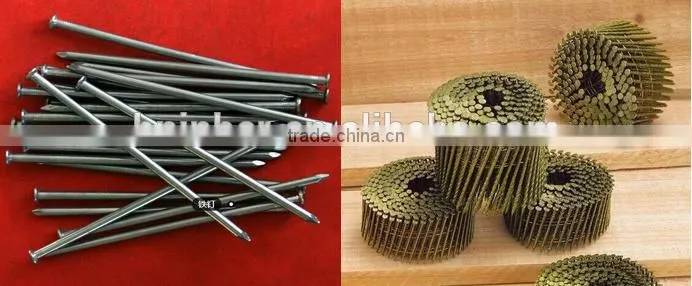

General wire nails coled thread nails

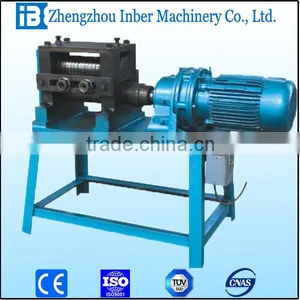

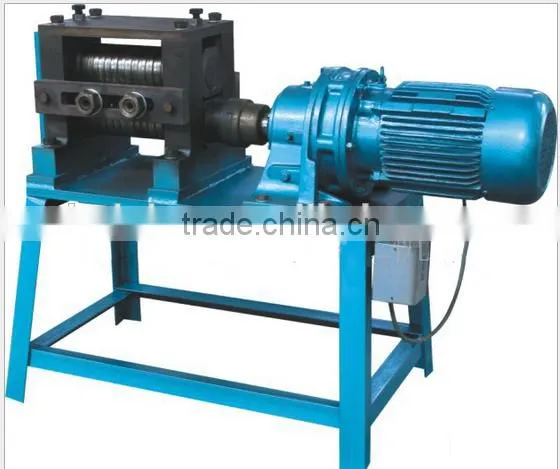

1) waste wire straightening machine
To straigten the waste wire, remove the rust, reduce the diameter.

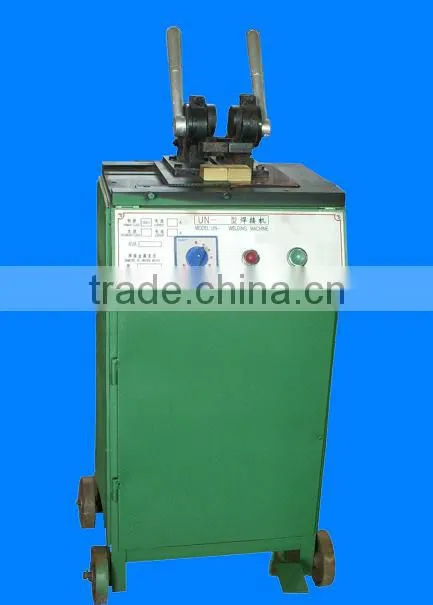

2)Butt welding machine
To connect the end of the wire into one line for following wire drawing.
3) Sharpening mill
Before wire drawing, sharpen the end of the wire, make sure it could though the drawing hole smoothly.

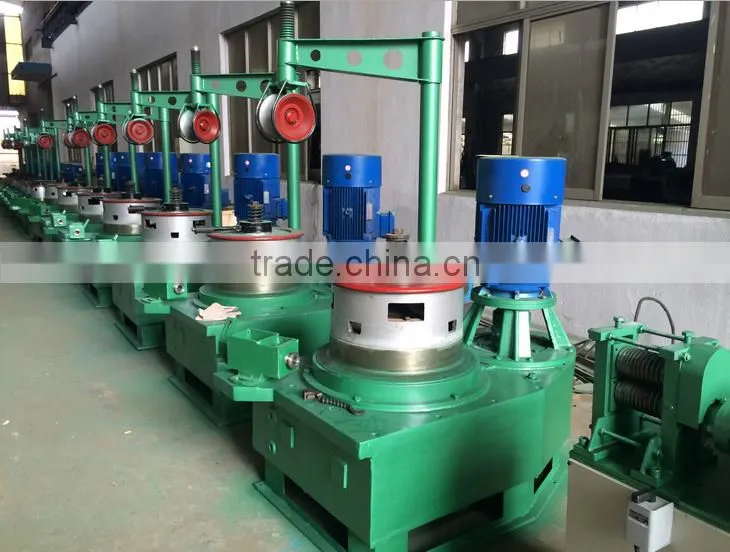

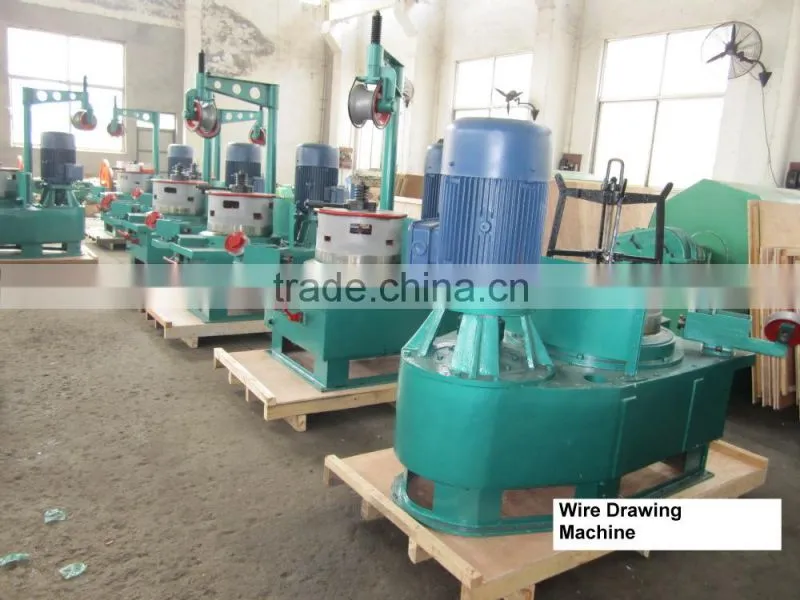

4)wire drawing machine
Reduce raw wire diameter same as your needed nail diameter.
Moldel:LW-1-6/560
Max input diameter:65.mm
Min output diameter:2mm
speed:235m/min
power:18.5-30kw
machine size:1700*115-*1750m
machine weight:2t

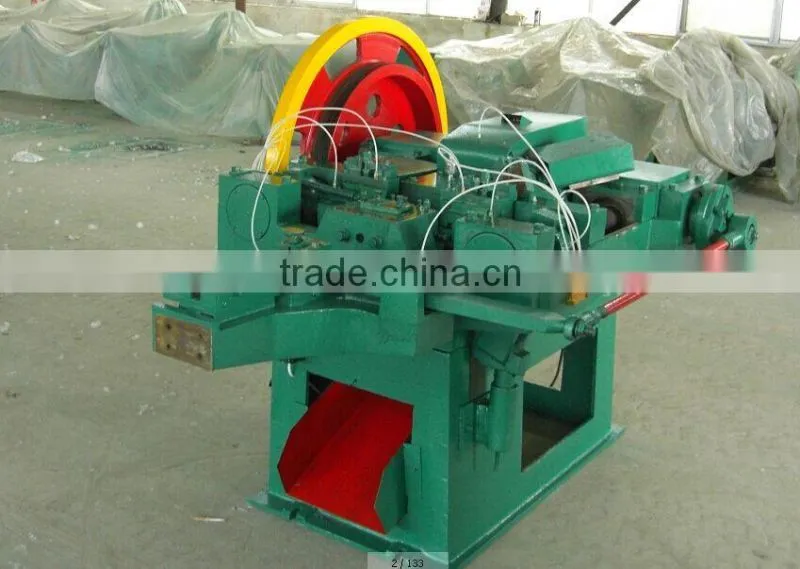

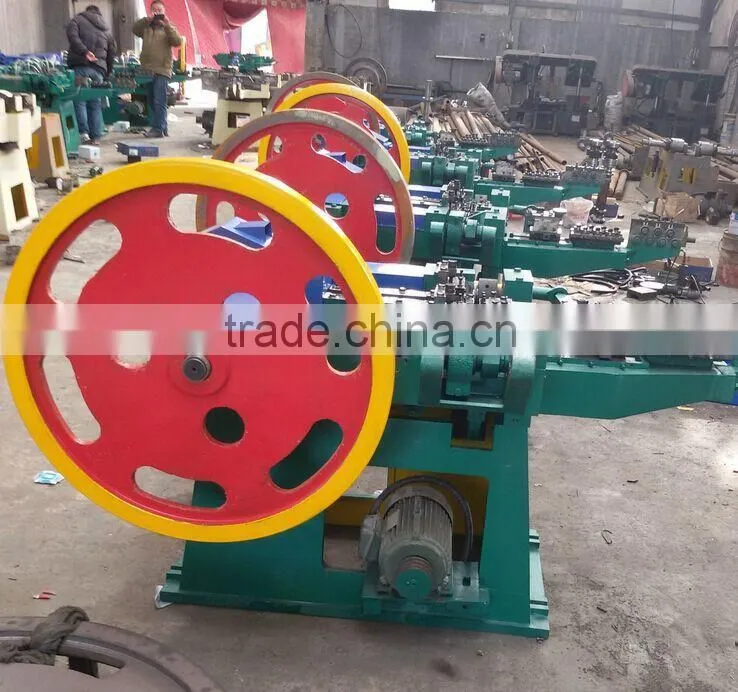

5)Nail making machine
By pressing, forming,cutting, make raw wire after drawing into nails.
Model | INZ94-1C
| INZ94-2C
| INZ94-3C
| INZ94-4C
| INZ94-5.5C
|
Nail diameter | 0.9-1.6mm | 1.2-2.8mm | 1.8-3.1mm | 2.8-4.5mm | 3.7-5.5mm |
Nail length | 9-25mm | 16-50mm | 30-75mm | 50-100mm | 80-150mm |
Motor power | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw |
Nail making speed | 50pcs/min | 350pcs/min | 320pcs/min | 260pcs/min | 200pcs/min |
L*W*H | 1.4*1.2*1.3m | 1.7*1.3*1.4m | 2.0*1.4*1.4m | 2.2*1.6*1.65m | 2.5*1.7*1.9m |
Weight | 1.45tons | 1.45tons | 1.8tons | 2tons | 2tons |
6)Polishing machine
Use sawdust to polish the nails, to get smooth surface.

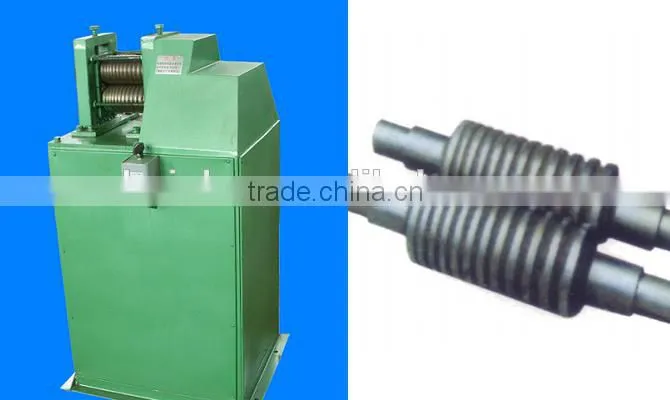

7)Thread rolling machine
Grind the nails to get final products with thread.

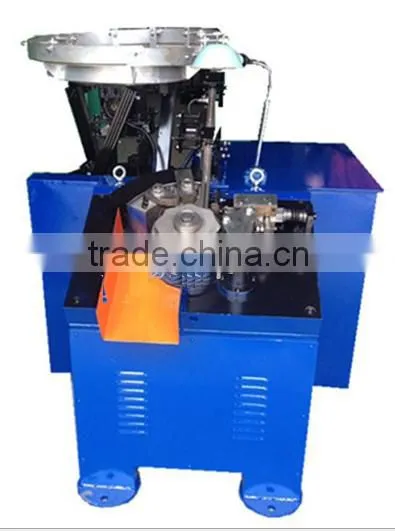

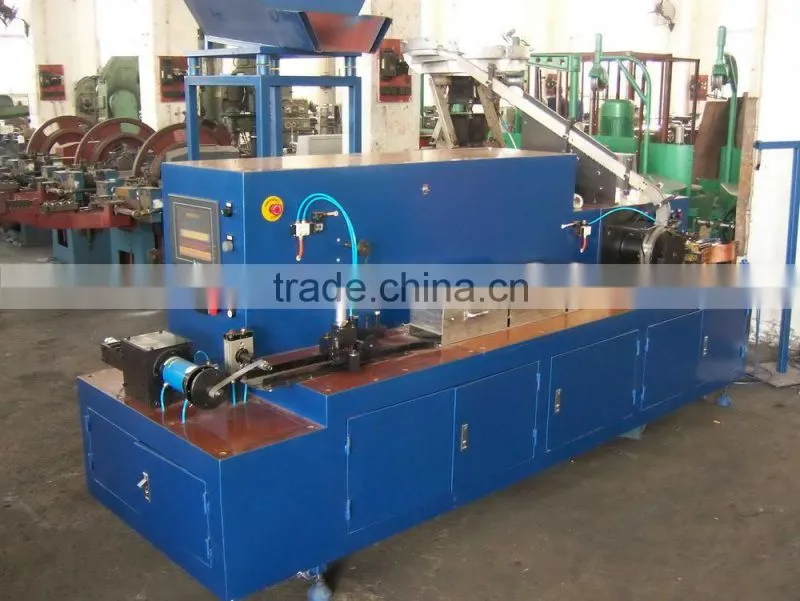

8) coil nail making machine

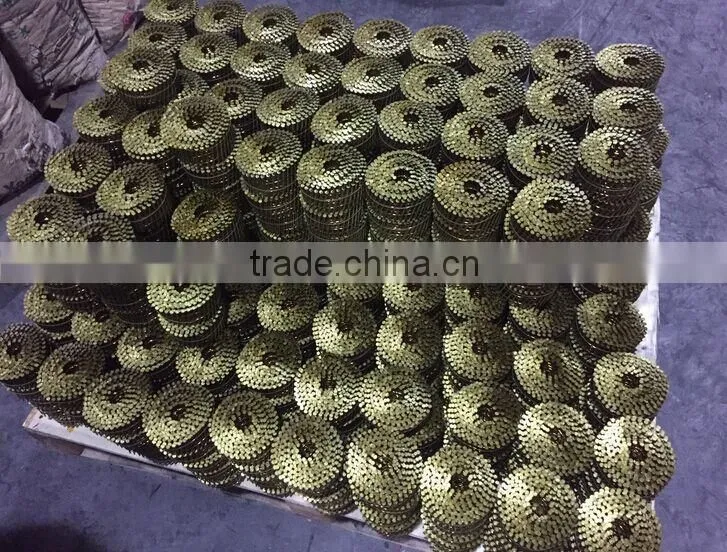

To get coiled nail for easy packing

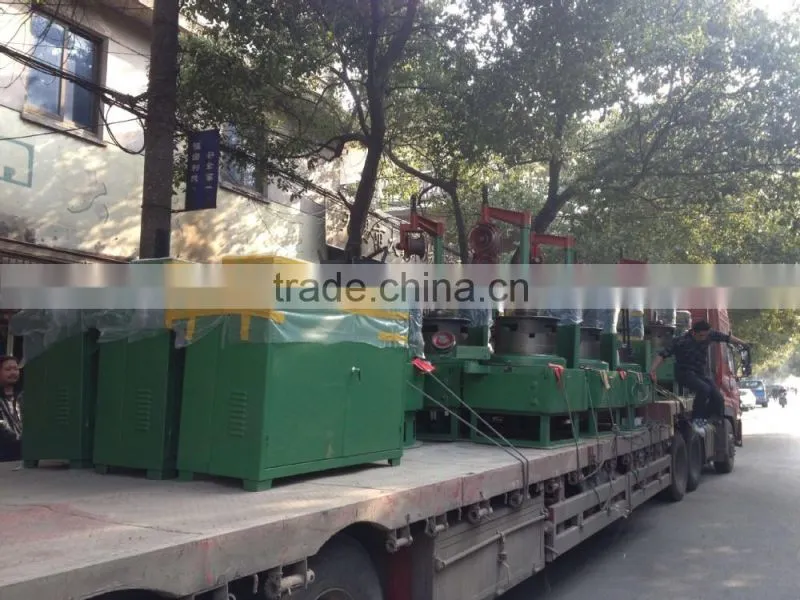

Working site:
If you have any interest, pls kindly confirm following items first:
1)Your raw materails(waste wire or new wire rod)?
2)Raw materails diameter?
3)Final nail diameter and length?
4)Whether need coil nail?
Then i could recommend you suitable machinery more efficiency.
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-sef.
Any interest, pls contact with me freely.
