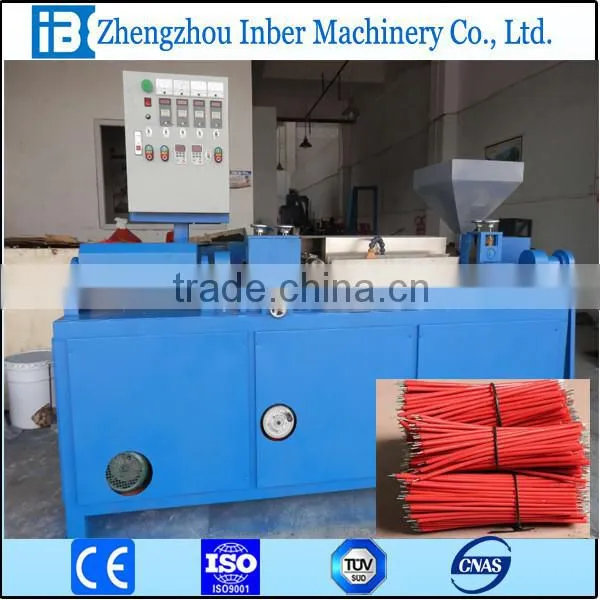

Automatic PVC wire coating machine
Our PVC wire coating line apply to PE, PVC, rubber etc. adopts thermoset extrusion to isolation
the wire core, then through change the different mechanical headstocks and dies, we can get the
steel wire that the customers need.
The main machine barrel and screw adopt 38CrMoAl material, are made through twice nitrogen
treatment, which can extend the machine service life. This machine line is the ideal products of
PVC wires and cables manufactures.
Raw materials |
PP , PVC , PS ,PE,PA,etc |
Screw diameter |
Φ30mm |
Screw diameter ratio |
26: 1 |
Screw materials |
38CrMoACA Nitride steel, nitriding processing |
motor |
P=2.2Kw frequency |
reducer |
hard-toothed surface reducer |
Heating power |
4×1.5Kw |
Coating thickness |
0.05mm-2mm |
Cooling type |
Stainless steel cooling thank |
Suitable wire diameter |
0.6-2.5mm(could reach 5mm wehn making wire roll) |
capacity |
40-100m/min(related to materials) |
Length control |
200-1000mm(could also be roll if not cutting) |
Machine size |
2000mm*900mm*1500mm |
Machine weight |
About 380KG |
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-sef.
30% By T/T asdeposit to start order.
70% as balance when offering copy B/L.
Any interest, pls contact with me freely.
