Pure water cube ice maker machine for edible ice
- 200 Set / Sets per Month
- Guangzhou
- T/T
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 1000~20000kg per day | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | CV | Ice Shape: | Other, Cube Ice |
Voltage: | 380V-50Hz-3P,380V-60Hz-3P,220V-50Hz-3P,440~460V-50Hz-3P | Power(W): | 3KW | Dimension(L*W*H): | 11460*1780*2100 |
Weight: | 6000kg | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

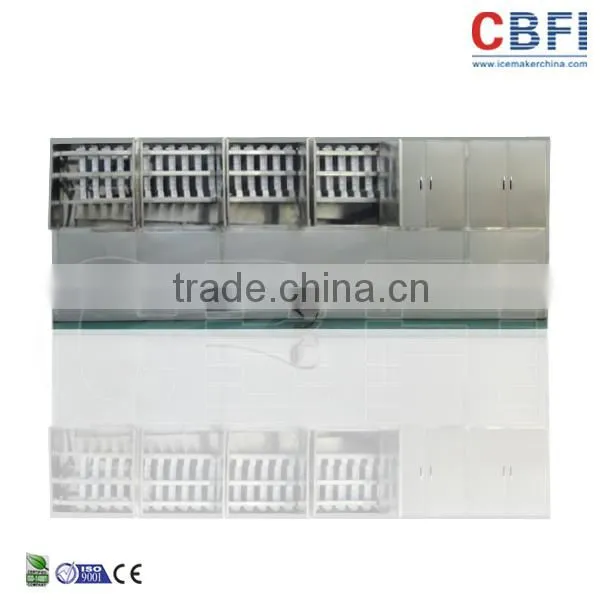

Pure water cube ice maker machine for edible ice
Pure water cube ice maker machine for edible ice
1.Daily Capacity : 1 ~ 20 tons
2.Ice making cycle : 20 mins
3.Ice size : 29*29*22 or 22*22*22 mm for optional
4.Low power consumption : 80~85 kw.h/ton. Greatly saves your cost !
5.Foot switch : Ice outlet controlled by foot swticth, free your hand to packing the ice, avoid the second human polluction
6.Easy to operate: We adopt PLC system design, one key to start or stop the machine, touch screen control .

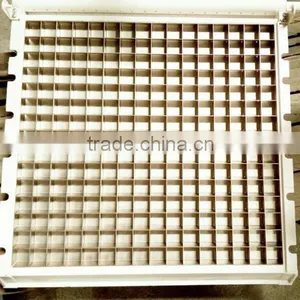

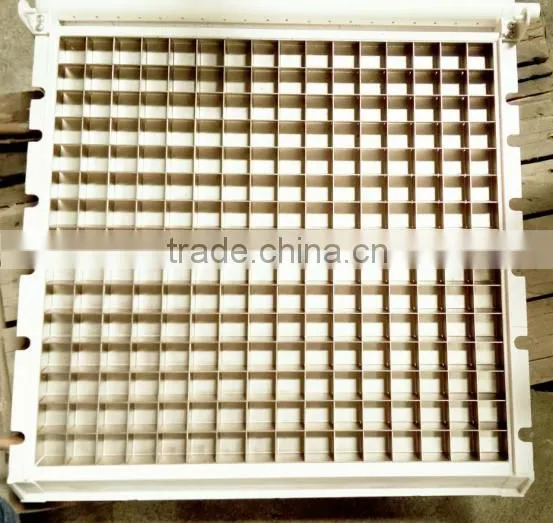

7.Ice Molds: Nickeled Copper Ice Mold, which can resistant to 70% following concentrated nitric acid erosion.When washing ice machine,the low concentration of acetic acid will clean not thorough,high concentrations will eroded ice mold. And our ice mold can avoid this problem.
8. Earthquake proof : Fixed the copper tube and Protect and shockproof coper tube. The shockproof size is fixed in front of the copper tubes and evaporator welds,which can avoid being damaged during transport or use.
9. Convenient to install: The machine unit had been tested in our factory for 24 hours continusly. So, the machine unit can start once electric power and water supply has been connected.
10. Space-saved: Machine unit adopt 3D model, reasonable layout, integerated design, the structure is very compact .
11. Product Model:
Model
| Ice Making Capacity | Compressor power | Circulating Water Pump Capacity | Cooling Water Pump Capacity | Cooling Fan Capacity | Machine Dimention | Weight of Machine |
No. | Ton/24h | KW | KW | KW | KW | W*H*L | KG |
CV1000 | 1.0 | 3.69 | 0.37 | 1.5 | 0.37 | 1200*1000*1600 | 800 |
CV2000 | 2.0 | 7.11 | 0.37 | 1.5 | 0.55 | 1630*1600*1686 | 1000 |
CV3000 | 3.0 | 9.68 | 0.37 | 2.2 | 0.75 | 1980*1630*1840 | 1200 |
CV5000 | 5.0 | 17.47 | 0.55 | 2.2 | 1.5 | 2890*1780*1840 | 1600 |
CV8000 | 8.0 | 28.52 | 1.1 | 4 | 1.5 | 4820*1780*1840 | 2500 |
CV10000 | 10.0 | 37.68 | 1.1 | 4 | 1.5 | 5730*1780*2000 | 3000 |
CV15000 | 15.0 | 52.41 | 1.65 | 5.5 | 2.2 | 8620*1780*2000 | 4500 |
CV20000 | 20.0 | 75.36 | 2.2 | 8 | 3 | 11460*1780*2100 | 6000 |
Note:
1.The above information is on the basis of water-cooled condensing.
2.Size of machine is before installation. It didn’t included the size of cooling tower, which is usually installed outside the room.
3.Machine running condition: water temperature:23℃, evaporate temperature:-12℃, condensing temperature 40℃, reference valve under 50Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
12.Project Case
7 setts 3 ton Cube Ice machine in Dubai
Cube Ice machine in Greece
Cube Ice machine in Shenzhen
Guangzhou Icesourse Refrigeration Equipment Co., LTD is the subordinate enterprise of Icesourse Group, which is the leader in the energy conservation and environmental protection refrigeration filed. Icesourse Group specialized in environmental protection and refrigeration equipment research, is a international group, which contain Guangzhou Icesource Refrigeration Equipment Co., LTD, Guangzhou Ice Spring Refrigeration Equipment Co., LTD,Icesourse(Nigeria) Co., LTD and Icesourse(Malaysia) Co., LTD. Our company was founded in November of 2004. And we have our own factory located in Panyu District of Guangzhou, Guangdong Province, it is near two famous port of South China-- Huangpu Port and Nansha Port, and not far from Baiyun airport. It is convenient for load,transport goods and for customers come to visit our factory. Our company is specialize in research, design, produce and sell large production Ice Cube machine, Ice Block machine, Containerized Ice block machine, Ice Tube machine, Ice Plate machine, Bag Ice machine, Flake Ice machine,Low temperature refrigeration machine and Cold Room, and its accessory equipment, for example,crane, ice crushing machine and so on.
1. Standard wooden case.
2. 20 feet container for 1-5 ton; 40 feet container for more than 5 ton.
3.Delivery time: 30 working days
1)Warranty: warranty is one year. You can call us on phone and our engineer can go to your country to service when there is a problem. While, the visa, round-trip ticket, accommodation and installation cost should be paid by customer
2)Manual book: We will offer detail instruction book with clear drawing to tell you how to install and operate theblock ice machine.
3)We can teach the customer's engineer how to operate and install machines if he come to our factory in Guangzhou.
4) It's possible for our engineer to go to your country for the installation and they are experienced in installating the block ice machine for customers in different countries.
5) If you are interested in our products, please contact us. We would be very glad to give you our best service.
Q1: Why don’t you choose Ammonia as refrigerant ?
A: 1.As we know, Ammonia, with a strong pungent smell, is a toxic refrigerant. It have strong stimulation to our eyes, nose, throat, lung and skin. It can be danger of fire and explosion when the air concentration of ammonia is more than 15%. Therefore, the ammonia refrigeration system come under a rigorous regulatory approvals by the State administration of work safety.
2.Ammonia refrigeration system is complex, and is too risky to operate.So, it need somebody on duty 24 hours,which increase labor costs.
3.A very low automatic degreeand high power consumption of the equipment of Ammonia refrigeration system lead to a high machine running cost.
Q2: What configuration of the voltage of the machine is ?
A: We adopt standard voltage -380V/3P/50Hz usually, non-standard voltage can be customized, the price is extra.
Q3: What’s your usual practice about terms of payment ?
A:The payment can be T/T,L/C,Western Union, Money Gram and in Cash. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.
Q4: How long is the time of delivery?
A: The delivery time normally is 30 days after we receive the deposit. And If necessary, we will arrange the shipping for you.
