Biomass wood pellet making machine
Raw materials:rice husk,sunflower seed husk,peanut shell and other fruit shell;branch,trunk,bark
and other wood waste;a variety of corp straws,rubber,cement,ash and other chemical material.
Application area:It is used in the biomass-energy fuels plant,power plant,wood processing plant,
fertilizer plant,chemical plant etc.It is the ideal pressing shaping equipments with low investment
and high profit.
Input size: 3-5mm.
Input moisture: 10-15%.
Pellet diameter:2-12 mm.

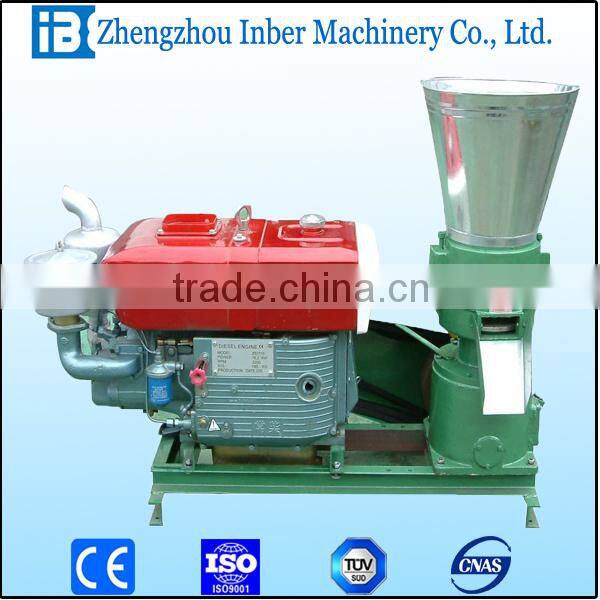

Engine:diesel,gasoline, motor

Model | Motor | Motor voltage | Size | Poutput | Roller diameter | Moisture | |
No. | (KW) | (V) | (MM) | Wood | Feed | (MM) | (%) |
INKL120 | Electric 3 | 220V 50HZ | 75*35*65 | 40-60 | 60-100 | 2.5-10 | 12%-20% |
INKL120A | Diesel 8 | - | 87*44*73 | 40-60 | 60-100 | 2.5-10 | 12%-20% |
INKL120B | Gasoline 7.5 | - | 76*42*71 | 40-60 | 60-100 | 2.5-10 | 12%-20% |
INKL150 | Electric 4 | 380V 50HZ | 75*35*65 | 50-90 | 90-120 | 2.5-10 | 12%-20% |
INKL150A | Diesel 8 | - | 87*44*73 | 50-90 | 90-120 | 2.5-10 | 12%-20% |
INKL150B | Gasoline 7.5 | - | 76*42*71 | 50-90 | 90-120 | 2.5-10 | 12%-20% |
INKL200A | Diesel 15 | - | 118*56*95 | 110-140 | 200-300 | 2.5-10 | 12%-20% |
INKL200B | Electric 7.5 | 380V 50HZ | 100*43*95 | 110-140 | 200-300 | 2.5-10 | 12%-20% |
INKL200C | Electric 7.5 | 380V 50HZ | 100*46*90 | 110-140 | 200-300 | 2.5-10 | 12%-20% |
INKL230A | Diesel 22 | - | 118*56*95 | 150-190 | 300-400 | 2.5-10 | 12%-20% |
INKL230B | Electric 11 | 380V 50HZ | 114*47*97 | 150-190 | 300-400 | 2.5-10 | 12%-20% |
INKL230C | Electric 11 | 380V 50HZ | 114*54*93 | 150-190 | 300-400 | 2.5-10 | 12%-20% |
INKL260A | Diesel 35 | - | 184*70*116 | 220-280 | 400-600 | 2.5-10 | 12%-20% |
INKL260B | Electric 15 | 380V 50HZ | 112*52*107 | 220-280 | 400-600 | 2.5-10 | 12%-20% |
INKL260C | Electric 15 | 380V 50HZ | 112*53*107 | 220-280 | 400-600 | 2.5-10 | 12%-20% |
INKL300A | Diesel 55 | - | 227*62*126 | 300-360 | 600-800 | 2.5-10 | 12%-20% |
INKL300B | Electric 22 | 380V 50HZ | 127*52*107 | 300-360 | 600-800 | 2.5-10 | 12%-20% |
INKL300C | Electric 22 | 380V 50HZ | 128*60*105 | 300-360 | 600-800 | 2.5-10 | 12%-20% |
INKL360A | Diesel 55 | - | 227*62*126 | 300-380 | 600-800 | 2.5-10 | 12%-20% |
INKL360C | Electric 22 | 380V 50HZ | 134*58*106 | 300-380 | 600-800 | 2.5-10 | 12%-20% |
INKL400A | Diesel 55 | - | 227*62*126 | 400-550 | 900-1100 | 2.5-10 | 12%-20% |
INKL400C | Electric 30 | 380V 50HZ | 152*60*115 | 400-550 | 900-1100 | 2.5-10 | 12%-20% |
Machine type:

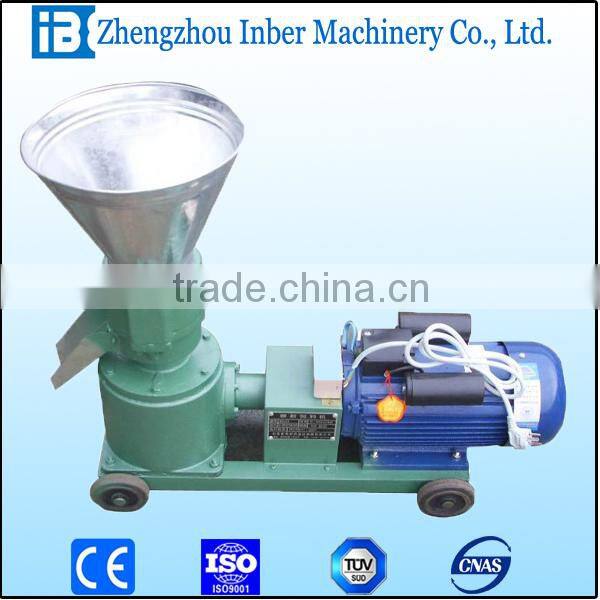

Version 1: small model without motor cover

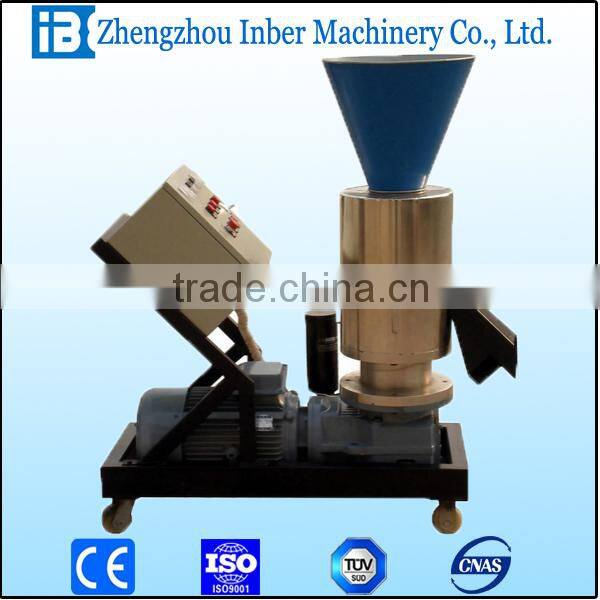

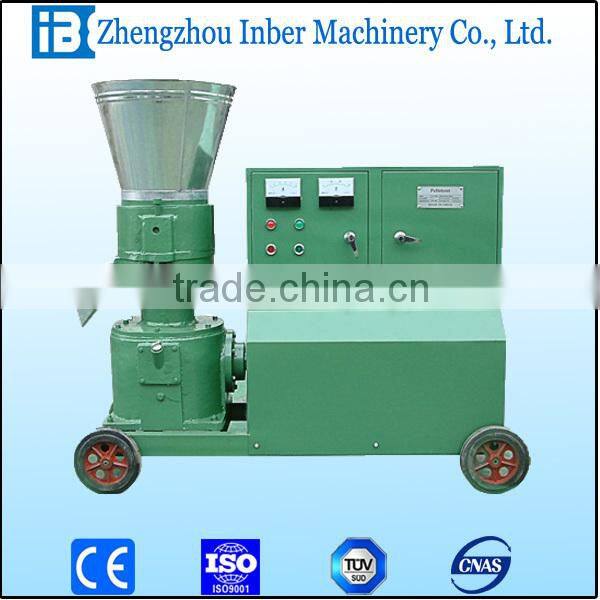

Version 2:bigger model with motor cover

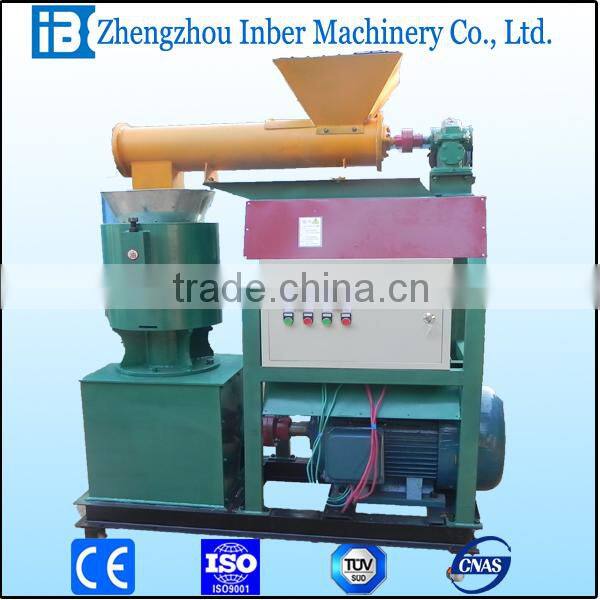

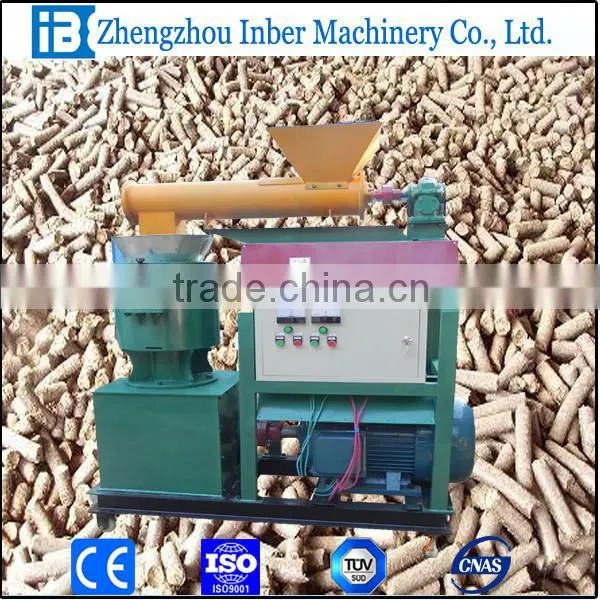

Version 3:big model with automatic feeding system
Version 4:special wood pellet machine with reducer

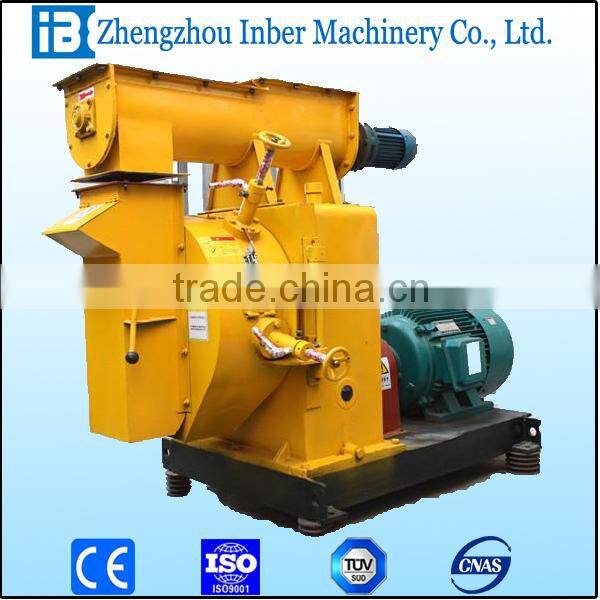

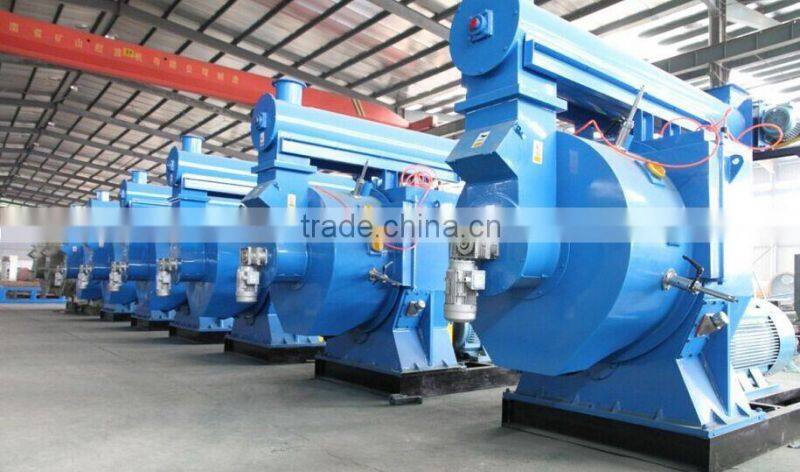

Version 5:ring die pellet machine

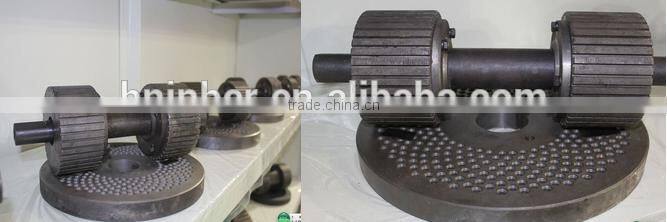

Inside roller:
by changing roller hole diameter,you could get different size pellet.

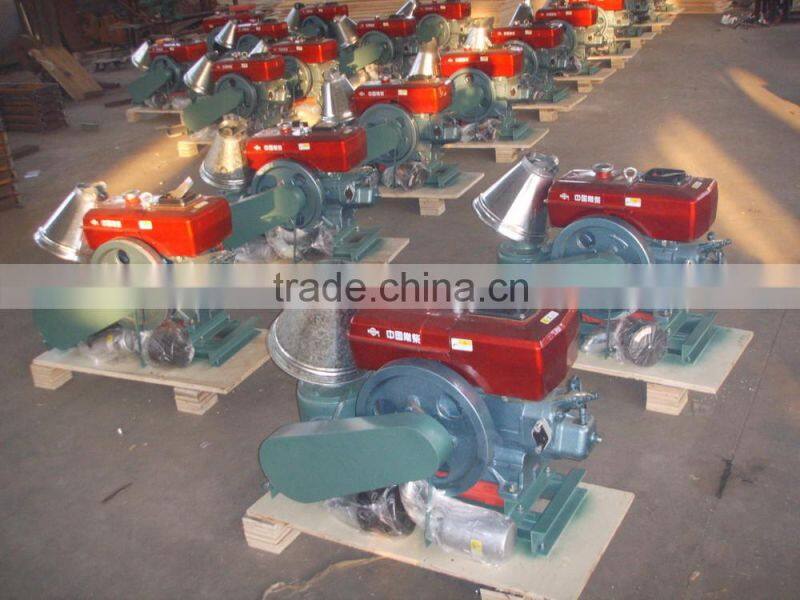

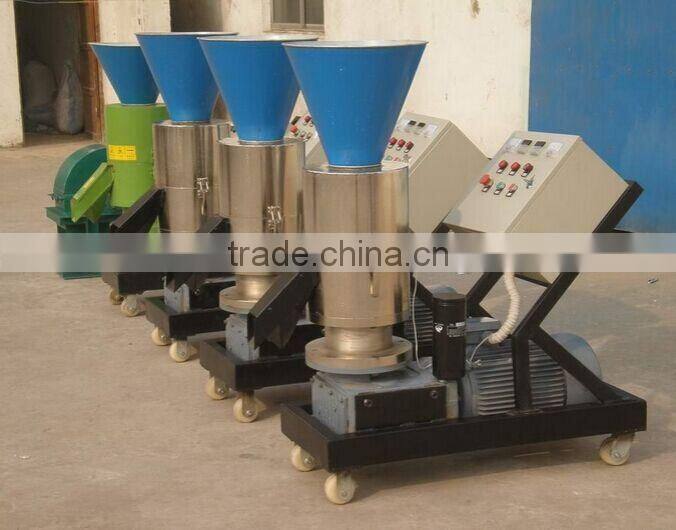

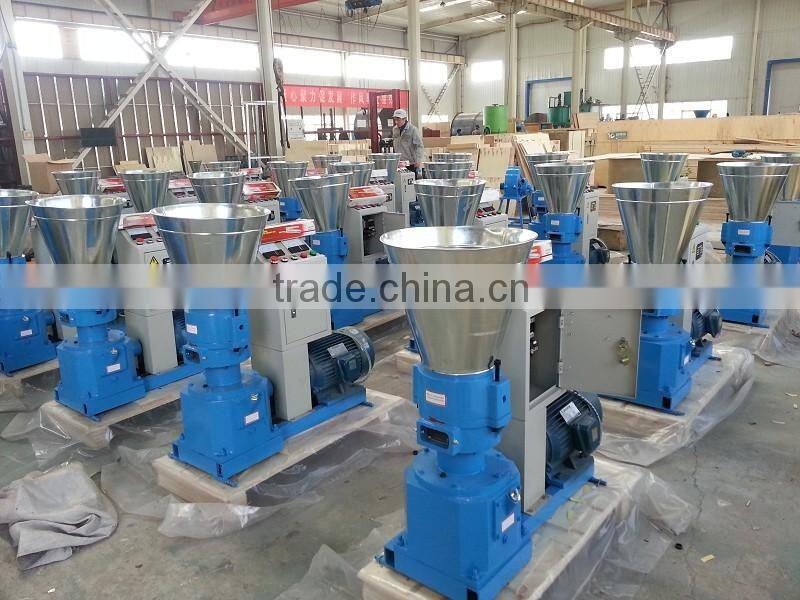

Machinery in stock

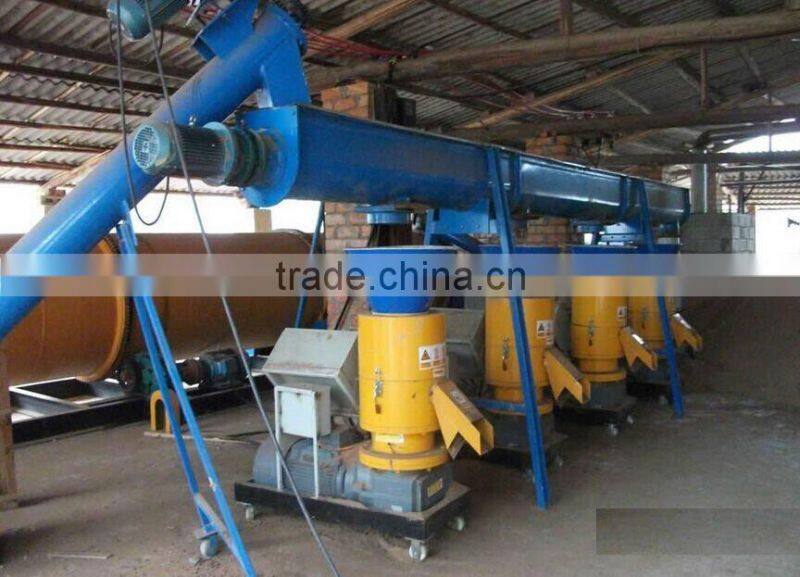

If you want to big capacity, could use several sets in one time, feeding the raw materails by the distributor as follows.
If you have any interest, pls confrim following items:
1.Your raw materails?(type,size, moisutre)
2.Your application?(for feed or fuel)
3.Your needed output?
4.Your needed pellet diameter?
Then i could recommend you suitable mchinery more efficiency.
We could arrange shippment by sea, by air, by express.
If by express, could directly to your home. shipping time:3-5days
If by air, could ship to your destination airport,shipping time:5-7days
If by sea, could ship to your nearest seaport, shipping time is different based on your port details.
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
30% By T/T asdeposit to start order.
70% as balance when offering copy B/L.
