wood sawdust block manufacturing machine used widely worldwide
- 1000 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal
- advanced design easy operation mushroom slice cutting machine
- advanced design easy operation shitake slicer machine
- advanced design easy operation spiral vegetable slicer
- advanced design easy operation automatic vegetable mushroom slicer
- advanced design easy operation multifunctional vegetable cutter
- advanced design easy operation vegetable slicer/mushroom slicer
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | inber |
Model Number: | INRY | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic wood pallet production line
1. The wood sawdust block hot press machine is to make wood pallet blocks.
2. Raw material can be wood sawdust,wood shavings,wood waste etc.
3. Fianl product could soak in water 48hrs without cracking.
5. Now we have three models with different capacity,two heads,four heads and xis heads.
6. The wood block size can customize,size range from 20mm to 145mm.
1.Strong bearing capacity, no deformation and can be reused.
2.Pallets can be used in export package, free fumigation, and free quarantine.
3.Insects prevention, and protection against termites and do not easy to burn.
4.It uses hydraulic transmission, horizontal continuous out bags, speed high yield.
5.It is mainly applicable for sawdust, cotton seeds, shell husk compression moulding material.

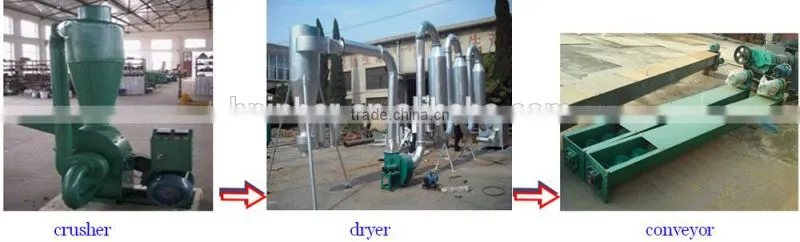

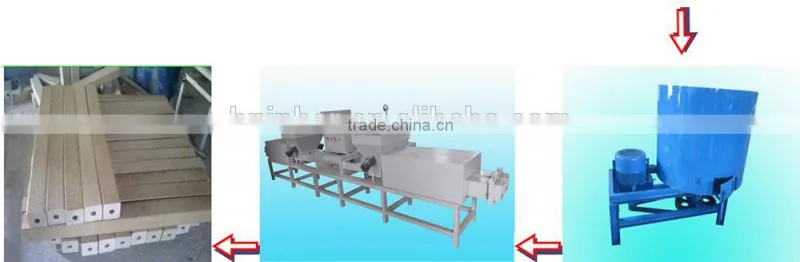

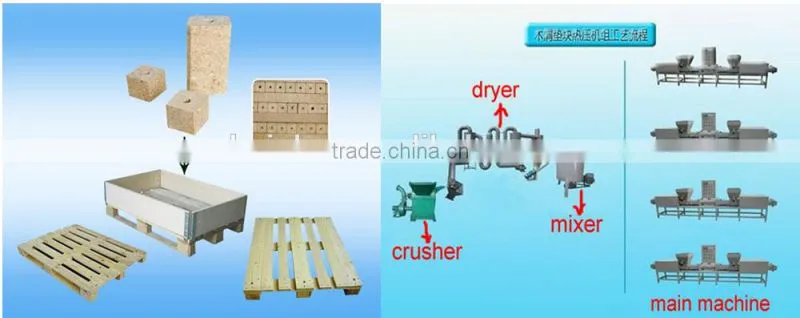

6.Process:raw materails crushing--drying--mixing--forming and cutting
Fristly,crush your raw materials(wast wood, paper. Etc)into small pieces 3-5mm.
Then dry them to moisture <12% for good quality pallet later.
Then put dryed small pieces into main machine for pallets.
Finally could use a air gun to connect pallet using nails to make wood frame.
Forming mchine parameters | |||||||
Model | Size | weight(Kg) | powder(Kw) | capacity | |||
| length | width | height |
|
|
| |
1 | RYJ/75*75 | 4.6m | 0.7m | 1.4m | 1050 | 18.4 | 3-5m3/24h |
2 | RYJ/80*80 | 4.6m | 0.7m | 1.4m | 1100 | 18.4 | 3-5m3/24h |
3 | RYJ/80*100 | 4.6m | 0.7m | 1.4m | 1150 | 18.4 | 3-5m3/24h |
4 | RYJ/90*90 | 4.6m | 0.7m | 1.4m | 1200 | 18.4 | 3-5m3/24h |
5 | RYJ/95*95 | 4.6m | 0.7m | 1.4m | 1250 | 18.4 | 3-5m3/24h |
6 | RYJ/100*100 | 4.6m | 0.7m | 1.4m | 1300 | 18.4 | 3-5m3/24h |
PS:if need other size, we could customize |

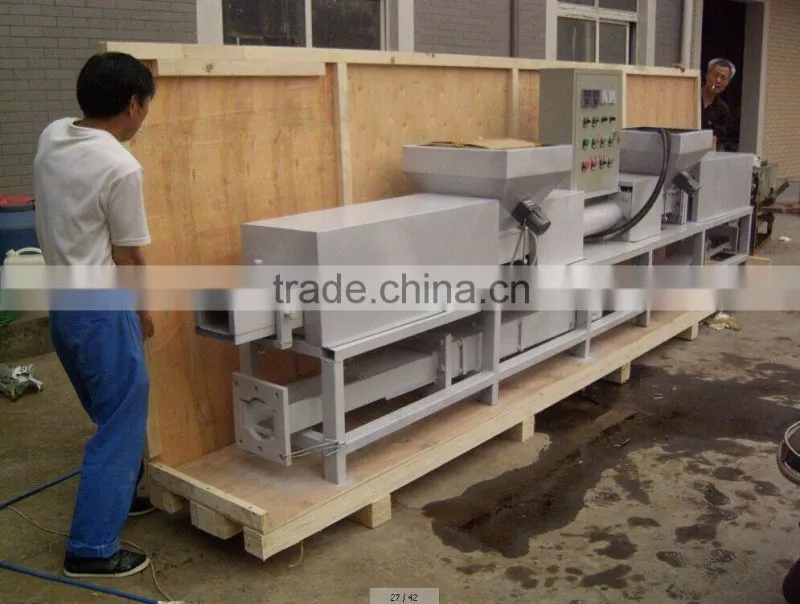

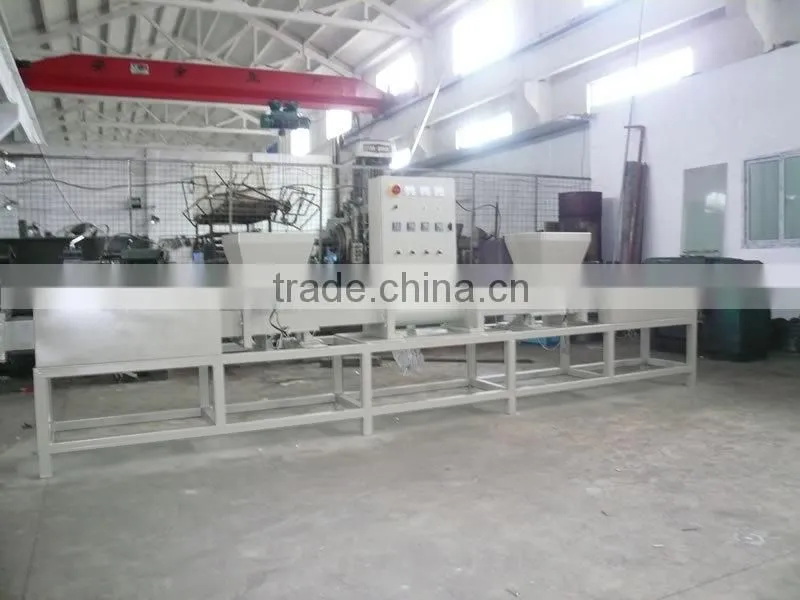

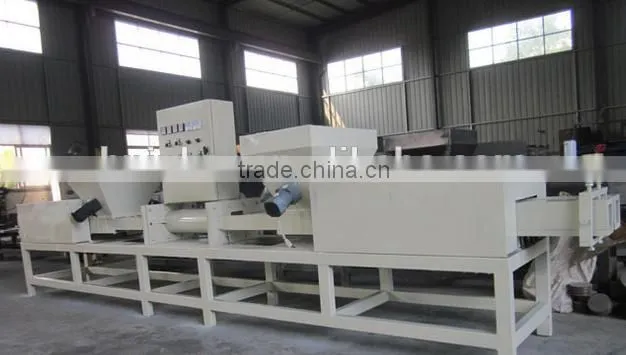

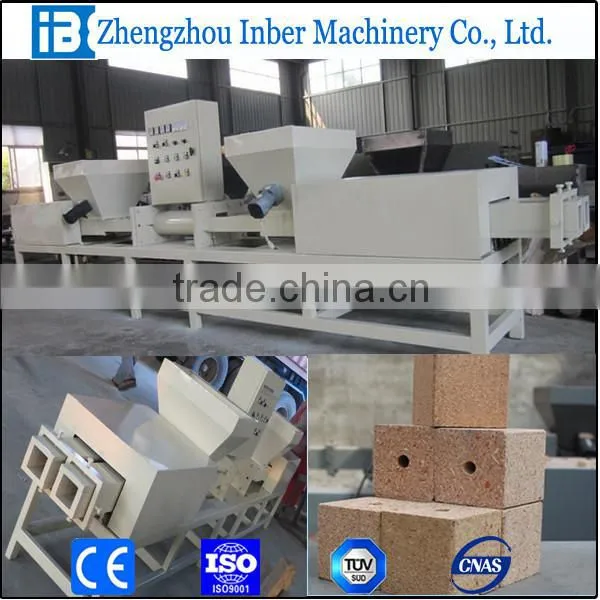

Whole machine

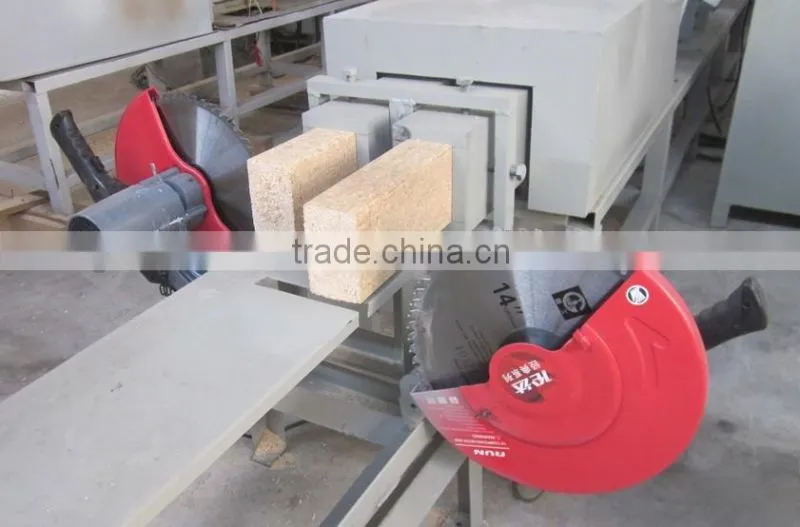

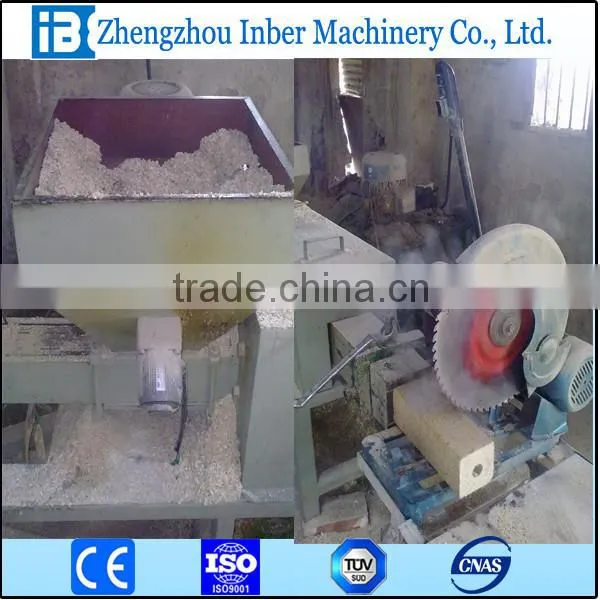

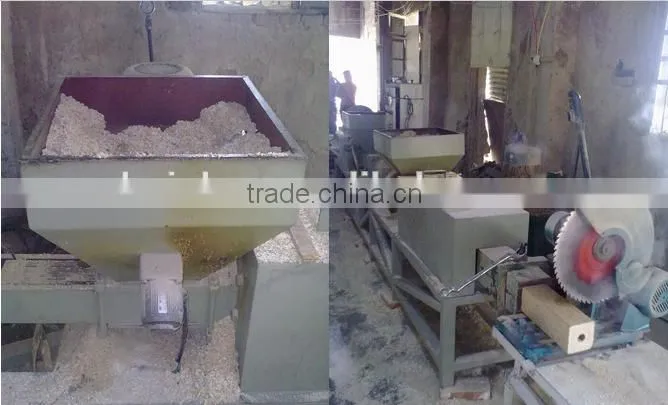

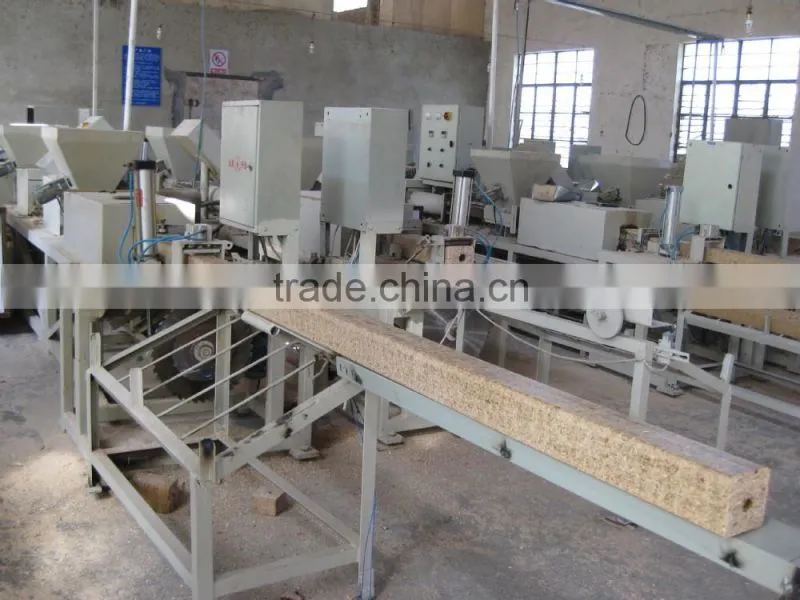

Working site

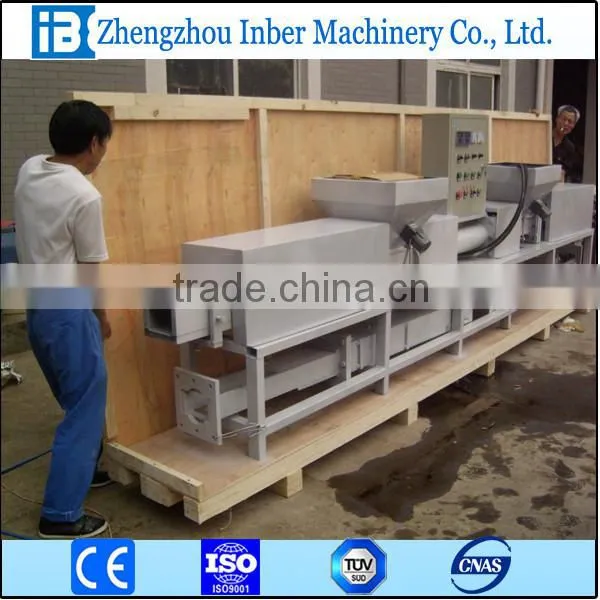

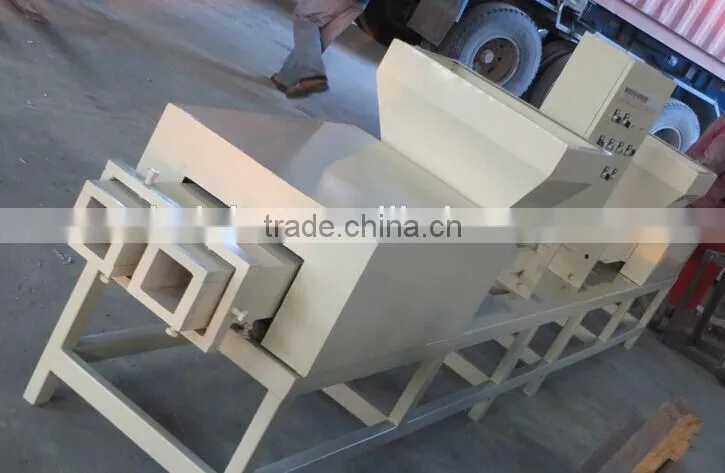

Machine in stock

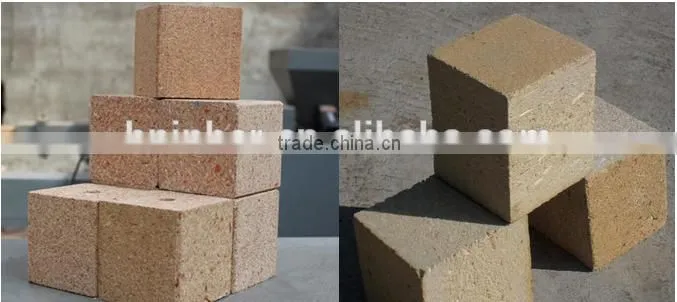

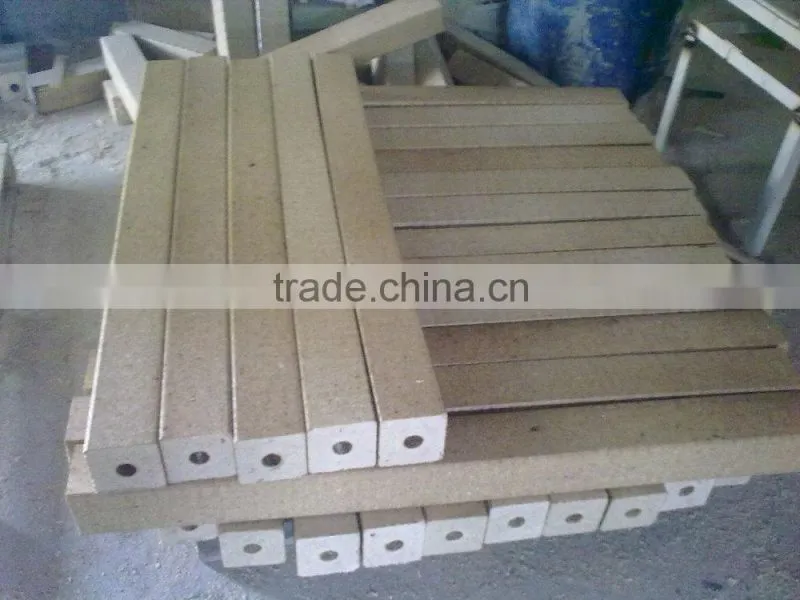

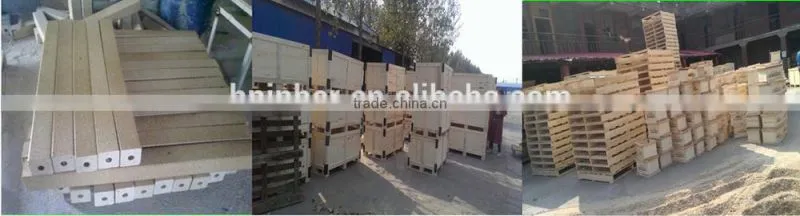

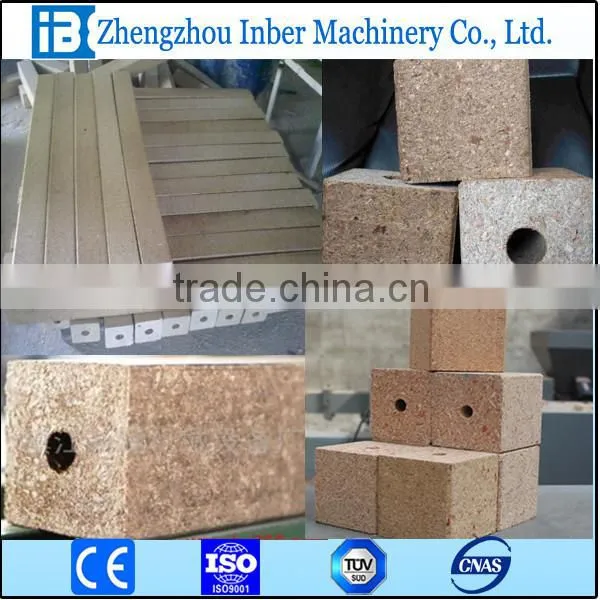

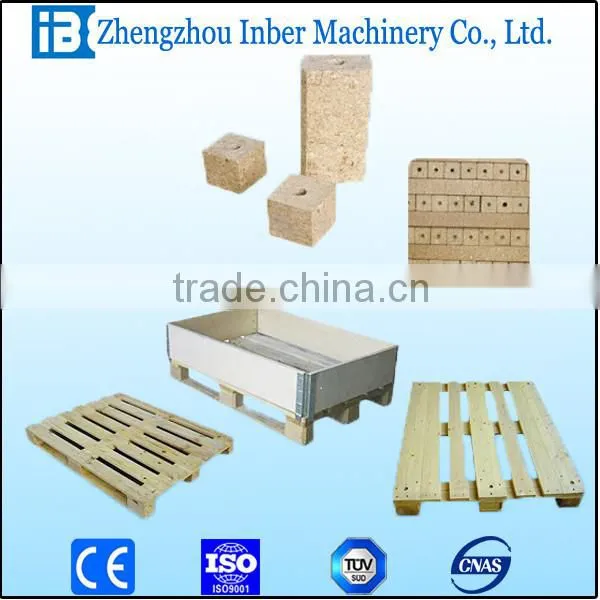

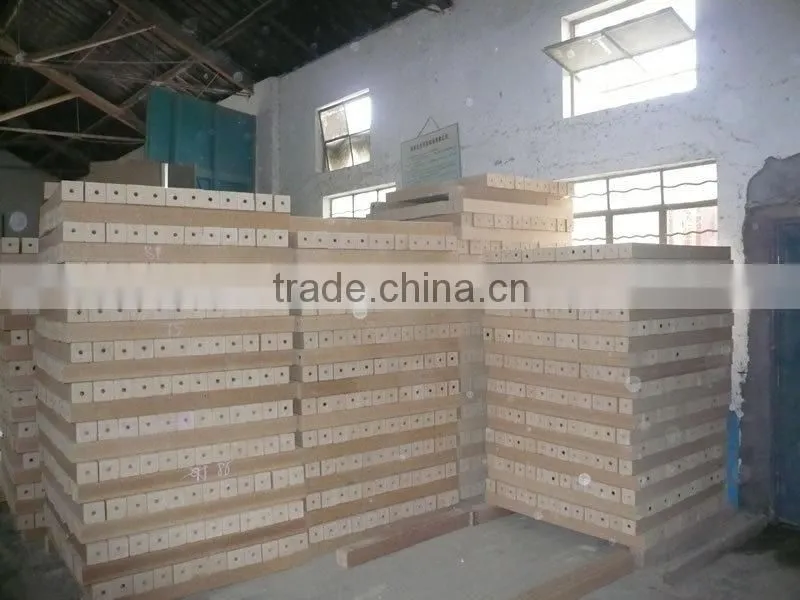

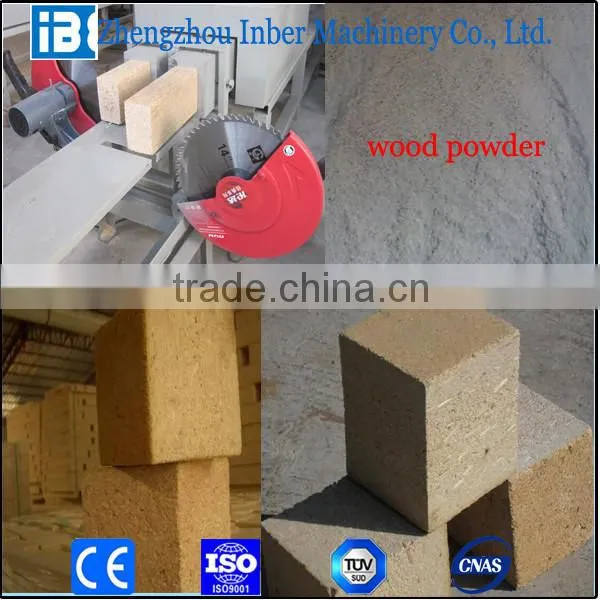

Final product
We could arrange shippment by sea, by air, by express.
If by express, could directly to your home. shipping time:3-5days
If by air, could ship to your destination airport,shipping time:5-7days
If by sea, could ship to your nearest seaport, shipping time is different based on your port details
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
30% By T/T asdeposit to start order.
70% as balance when offering copy B/L.
Any interest, pls contact with me freely.
