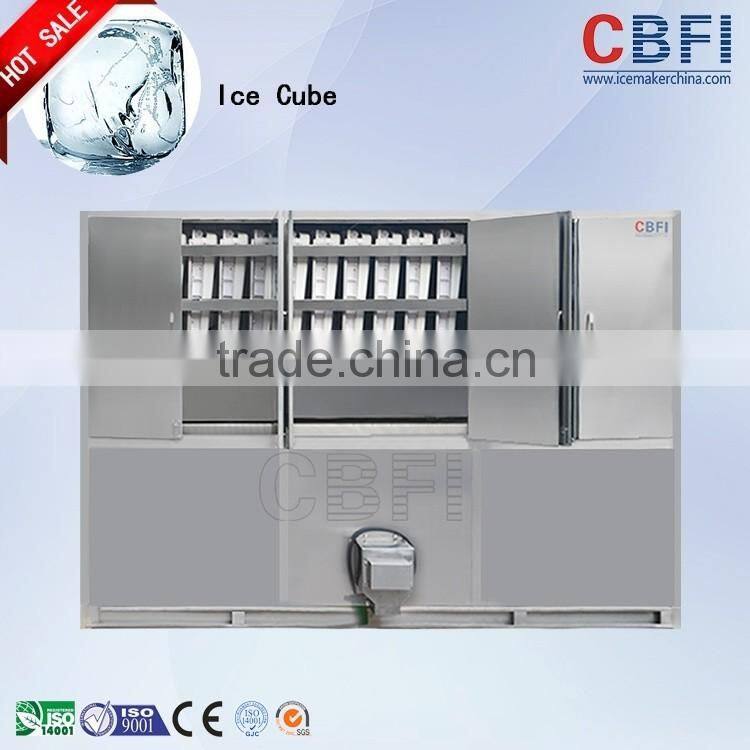

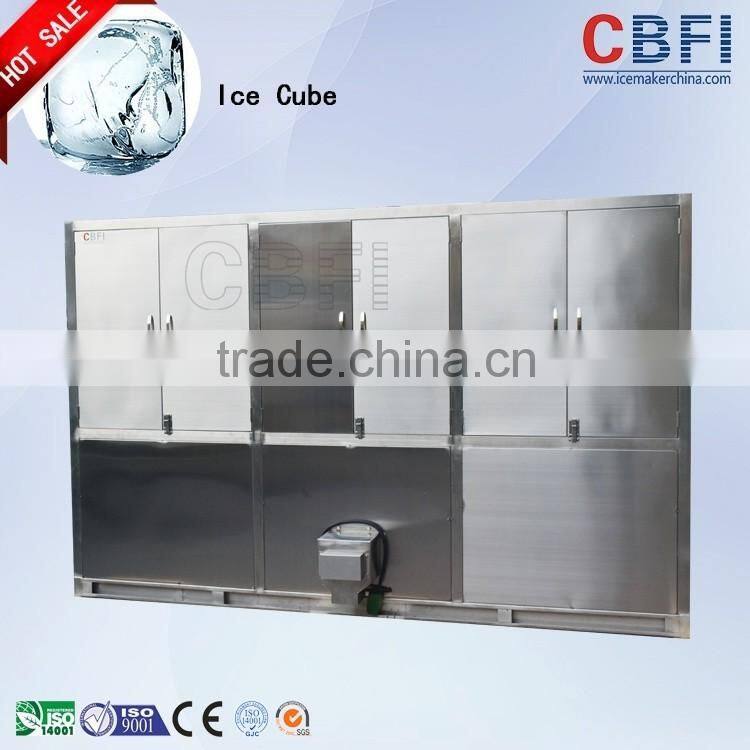

SUS304 Commercial Ice Cube Making Machine for South Africa Customer

SUS304 Commercial Ice Cube Making Machine for South Africa Customer photo-1
SUS304 Commercial Ice Cube Making Machine for South Africa Customer photo-2
SUS304 Commercial Ice Cube Making Machine for South Africa Customer photo-3

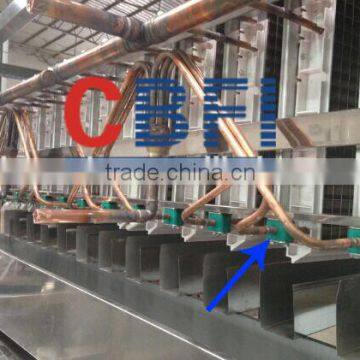

SUS304 Commercial Ice Cube Making Machine for South Africa Customer photo-4
SUS304 Commercial Ice Cube Making Machine for South Africa Customer photo-5
SUS304 Commercial Ice Cube Making Machine for South Africa Customer photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
5 tons / 24 hours
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
GZ Huangpu or Nansha Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Capacity 5 tons / 24 hours
Place of Origin Guangdong, China
Brand Name CBFI
Model Number CV3000
Ice Shape Other, ice cube
Voltage 380V/3P/50HZ
Power(W) 2.7kw - 124.3kw
Dimension(L*W*H) 1890*1200*1780mm
Weight 1200kg
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas
Product Description


Guangzhou Cube Ice Machinery

Cube Ice Application

Cube ice machines are widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops,etc.

Product Model

Model

Daily Production

Rated Power
Water Pump Power
Circulating
Water Pump Power
Cooling Water Pump Power
Machine Dimension
Machine Weight
NO.
TON/24H
KW
KW
KW
KW
W*H*L(MM)
KG
CV1000
1.0
3.69
0.37
1.5
0.37
1800*1000*1600
800
CV2000
2.0
7.11
0.37
1.5
0.55
1630*1600*1686
1000
CV3000
3.0
9.68
0.37
2.2
0.75
1980*1630*1686
1200
CV5000
5.0
18.84
0.55
2.2
1.5
2890*1780*1840
1600
CV8000
8.0
28.52
1.1
4
1.5
4820*1780*2000
2500
CV10000
10.0
37.68
1.1
4
1.5
5730*1780*2000
3000
CV15000
15.0
52.41
1.65
5.5
2.2
8620*1780*2000
4500
CV20000
20.0
75.36
2.2
8
3
11460*1780*2100
6000

Main Features

1)Two different cube ice for option:22mm*22mm*22mm or 29mm*29mm*22mm


2)High ice production: even in high temperature, our machine could ensure the production. The ice output rate ranges from 90% to 95% in summer, when the ambient temperature is lower than 23 ℃, ice output rate can reach 100% to 130%(for those samll cube ice machine, the ice output rate is 50% to 60% in summer.)


3)Low electric power consumption: 75~80 kw.h/ton of cube ice.


4)Automatic controll: adopt PLC intellient system. It can be remote controll by smart phone.


5)Space-saved: integrated design, machine structure is compact and convenient of shipping.


6)Leading technologies: flate plate heat exchange and circulating heat gas ice-dropping technology.

Certifications
Detailed Images

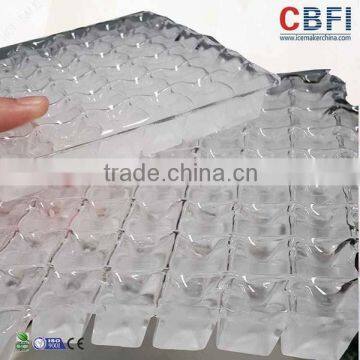

Cube Ice

Features:

1. Two sizes for optional:22mm * 22mm * 22mm, 29mm* 29mm *22mm.

2. Application:  widely used in hotels, bars, restaurants,  fast-food shops, supermarkets and cold drink shops,etc.

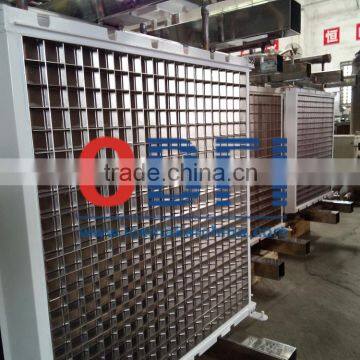

Nickeled Copper Ice Moulds

Features:

1. Adopting copper ice mould coated with Nickel, which can resist 60% concentrated nitric acid.

2. Long use life.


Heat Exchange

Features:

1. Heat exchange will cool down the passing refrigerant, making it flows into the expansion valve in a lower temperature that improves the refrigeration efficiency.
2. Some of return-refrigerant is liquid after making ice, and heat exchange make all refrigerant into
compressor is gas, that will ensure compressor running normally.


Touch Screen

Features:

1. Easy to operate.
2. Display the machine running situation clearly.
3. It can be designed to remote control machine by phone.

Our Service

1)Warranty: One year.

2)Manual book: Detail instruction book with clear drawing will be provided to tell you how to install and operate the machine.

3) If customer's technicians come to Guangzhou and visit our factory, we can train the customer's technicians to operate and install machines.

4) It is possible that customers need our technicians to install and train customers operating machines in their country. We have technicians who have been to many different countries to work.

5) If you are interested in our products, please contact us. We would be very glad to provide service for you.


Packing & Delivery
Packaging
Size
2990mm(L)*1880mm(W)*2040mm(H)
Weight
1.6T



Packaging Details

1.The normal package is wooden box.

2.Machine installed completely and strictly tested in our factory before shipping.

Delivery
20 feet container for 2 sets 5 ton cube ice machine
Related Products

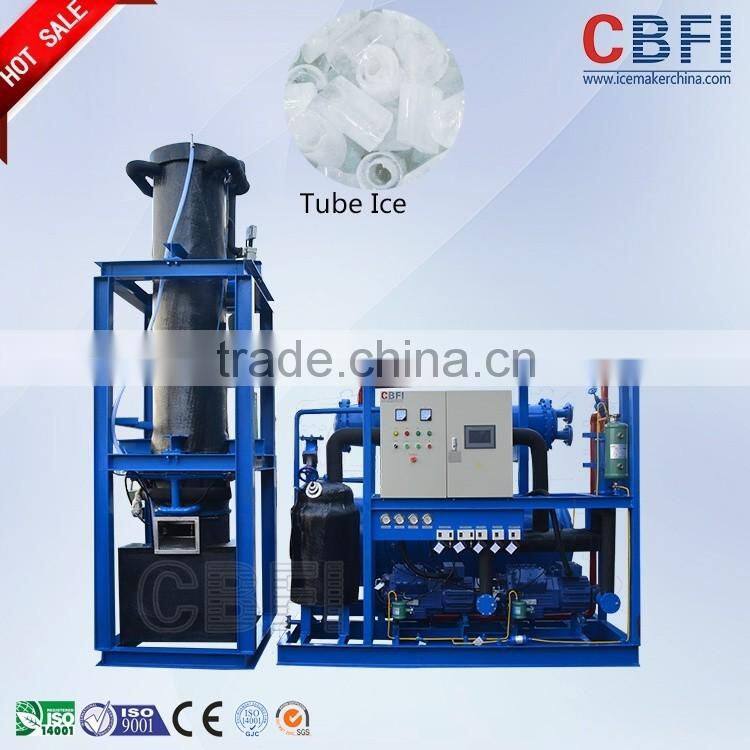

             tube ice machine

Click the image to view more

           block ice machine

Click the image to view more

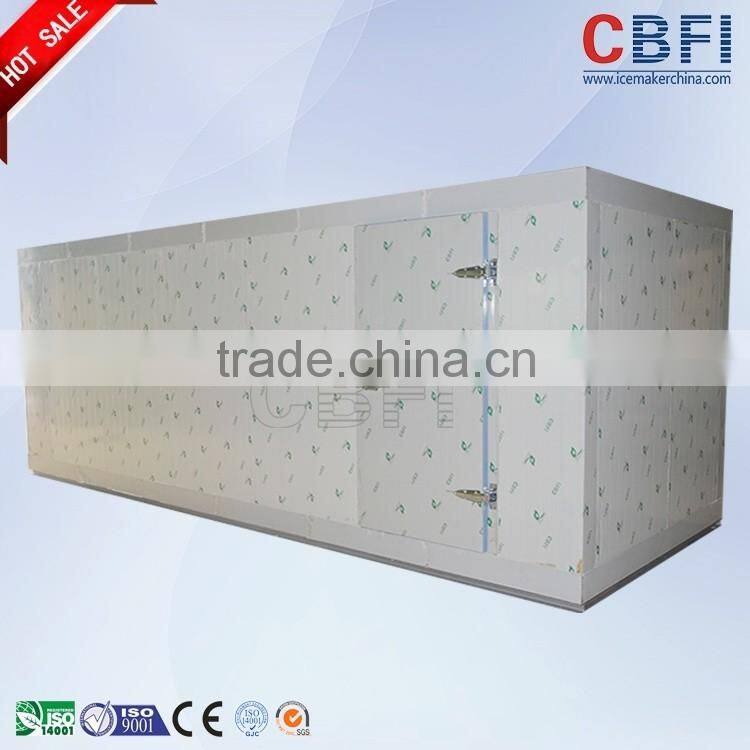

                   cold room
