Industrial Ice Cube Machine With Oversea Installation

Industrial Ice Cube Machine With Oversea Installation photo-1
Industrial Ice Cube Machine With Oversea Installation photo-2

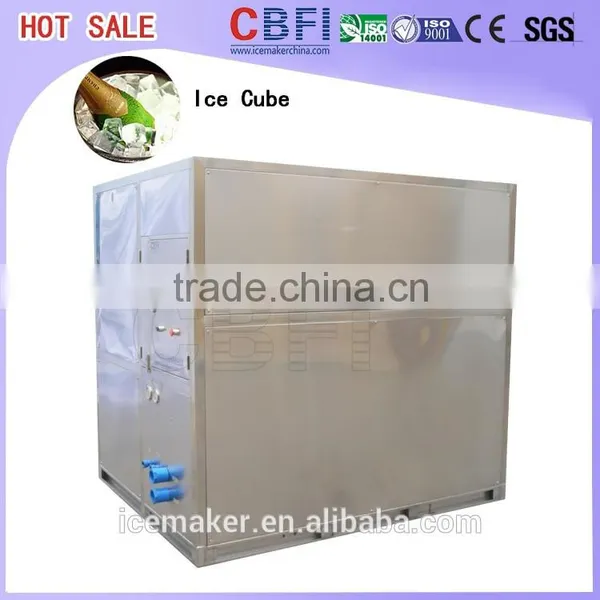

Industrial Ice Cube Machine With Oversea Installation photo-3
Industrial Ice Cube Machine With Oversea Installation photo-4
Industrial Ice Cube Machine With Oversea Installation photo-5
Industrial Ice Cube Machine With Oversea Installation photo-6
US$ 1 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
3000kg/24hours
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Capacity 3000kg/24hours
Place of Origin Guangdong, China
Brand Name CBFI
Model Number CV3000
Ice Shape Other, cube ice
Voltage 380V and other special power supply
Power(W) 9.68KW
Dimension(L*W*H) 1980mm*1630mm*1840mm
Weight 1200kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

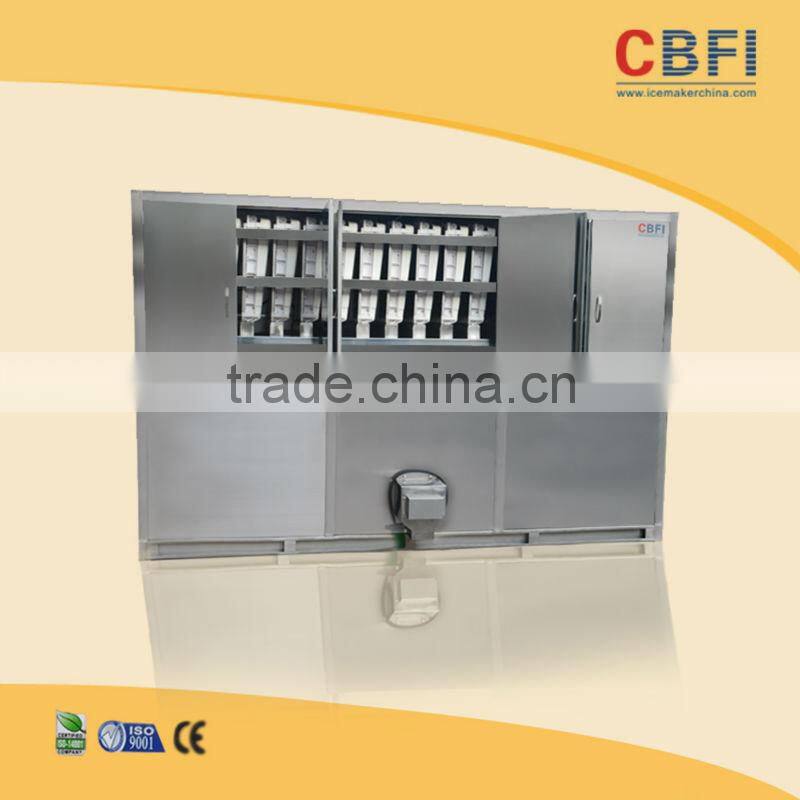

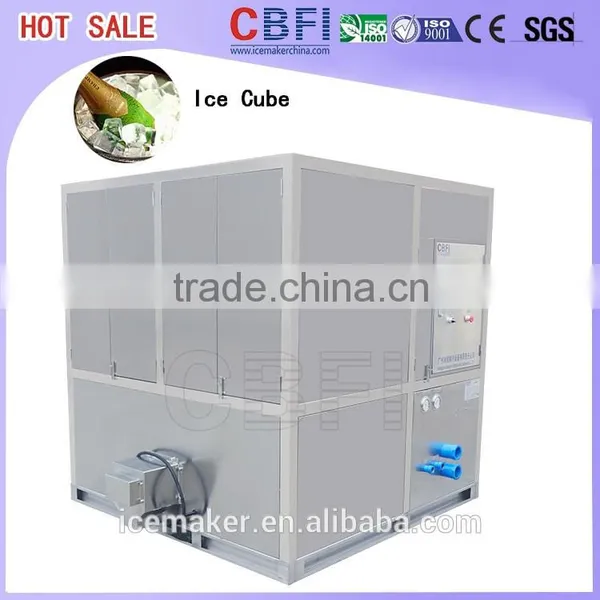

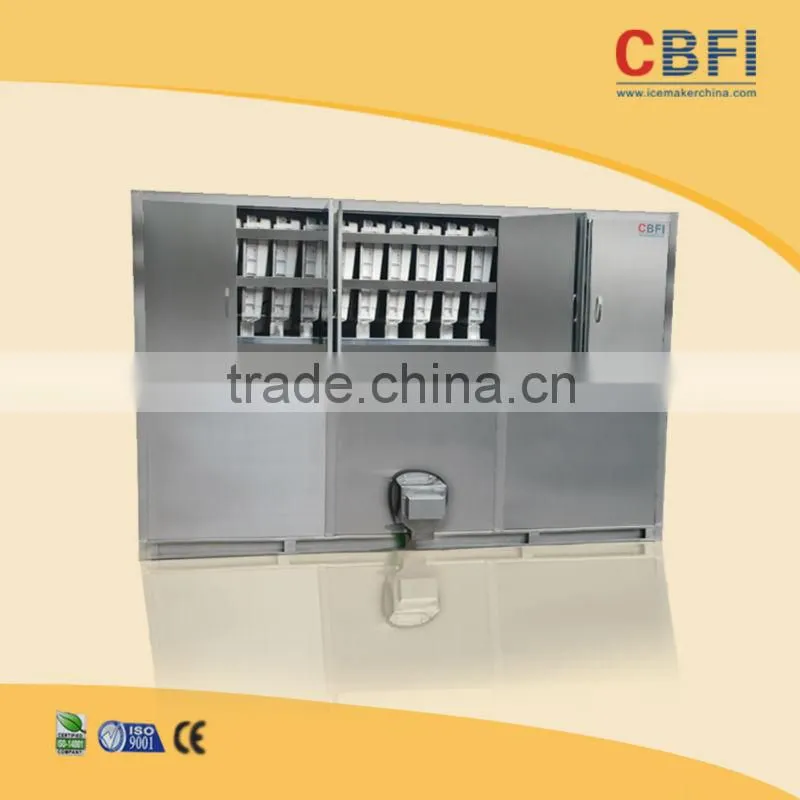

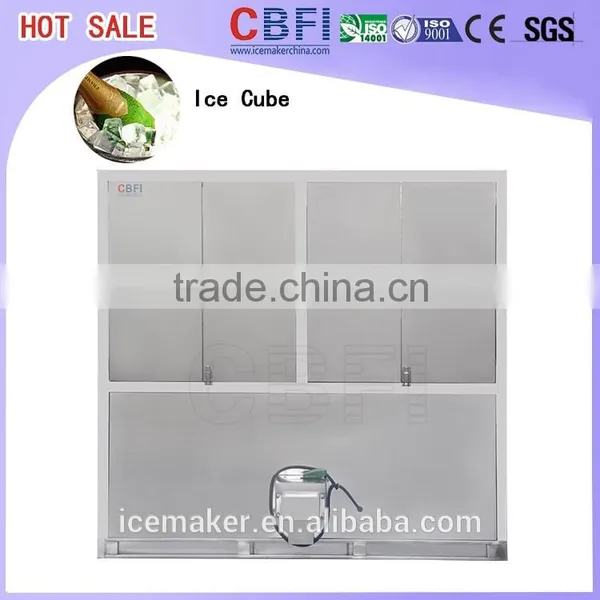

Industrial Ice Cube Machine
With Oversea Installation



Cube Ice Application

Cube ice machines are widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops,etc.

Product Model

Model

Daily Production

Rated Power
Water Pump Power
Circulating
Water Pump Power
Cooling Water Pump Power
Machine Dimension
Machine Weight
NO.
TON/24H
KW
KW
KW
KW
W*H*L(MM)
KG
CV1000
1.0
3.69
0.37
1.5
0.37
1800*1000*1600
800
CV2000
2.0
7.11
0.37
1.5
0.55
1630*1600*1686
1000
CV3000
3.0
9.68
0.37
2.2
0.75
1980*1630*1686
1200
CV5000
5.0
18.84
0.55
2.2
1.5
2890*1780*1840
1600
CV8000
8.0
28.52
1.1
4
1.5
4820*1780*2000
2500
CV10000
10.0
37.68
1.1
4
1.5
5730*1780*2000
3000
CV15000
15.0
52.41
1.65
5.5
2.2
8620*1780*2000
4500
CV20000
20.0
75.36
2.2
8
3
11460*1780*2100
6000

Features:

1.Low electrric power consumption: 75~80kw.h/ton cube ice.

2.High ice output rate:During summer, the ice output rate ranges from 90% to 95%; when the ambitent temperature is lower than 23℃, the ice output rate can reach to 100%-130%.

3)Feet button switch to control the ice outlet, hands free for ice collecting.

4)Integrated design, stable structure



Cube Ice


Features:

1.Two sizes for optional:22mm * 22mm * 22mm, 29mm* 29mm *22mm.


2. Cute ice shape and diamand grade edible ice

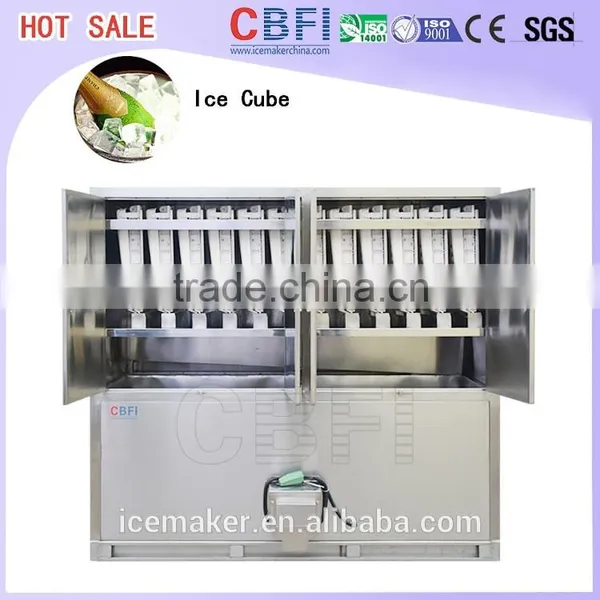

Nickeled Copper Ice Moulds

Features:

1. Adopting copper ice mould coated with Nickel.


2.Resistant to 60% concentrated nitric acid to clean and no erosion.

Heat Exchange

Features:

1.Heat exchange will cool down the passing refrigerant, make them flow into the expansion valve in a lower temperature which can improve the refrigeration efficiency

2.Heat exchange make all the refrigerant back into compressor in gas to ensure compressor working in good condition.


Touch Screen

Features:

1. Easy to operate like a smartphone.

2. Display the machine working condition clearly.

3.Malfunction information is available to see when there is a problem.



1)Warranty: warranty is one year. You can call us on phone and our technician can go to your country to service when there is a problem, you need to pay the cost.

2)Manual book: We will offer detail instruction book with clear drawing to tell you how to install and operate the machine.

3)We can teach the customer's technician how to operate and install machines if he come to our factory in Guangzhou.

4) It's possible for our technican to go to your country for the installation and they are experienced in installating the ice machine for customers in different countries.

5) If you are interested in our products, please contact us. We would be very glad to give you our best service.


Packaging
Size
2080mm(L)*1730mm(W)*1940mm(H)
Weight
1.2T



Packaging Details

1.The normal package is wooden box.

2.Machine installed completely and strictly tested in our factory before shipping.

Delivery
20 feet container
