Pipe Size
Product information:
1.Our factory is top three in China;
2.High quality and low price;
3. According to ASTM A888 standard;
4.Sizes: 1.5", 2", 3", 4", 5", 6", 8", 10", 12", 15"
5.Length: 10'
6 .Approval: UPC
7. Material: gray cast iron
8 .Applications: construction drainage, pollution discharge
9.Features: Flat and straight; High strength and density without defect; Easy to install and maintain; Long lifetime, fireproof and low noise rate.
Detailed data:
| STANDARD | ASTM A888 |
| ORIGIN | Hebei, China. |
| BRAND | DINGGIN |
| MATERIAL | grey cast iron |
| SIZE | 1.5''-15'' |
| LENGTH/PC | 3.048M |
| THICKNESS | 1.5'': 3.3-4.0mm 2'': 3.3-4.0mm 3'': 3.3-4.0mm 4'': 3.81-4.81mm 5'':3.81-4.81mm 6'': 3.81-4.83mm 8'': 4.32-5.84mm 10'': 5.59-7.44mm 12'': 5.59-7.44mm |
| INSIDE DIAMETER | 1.5'': 38.1+/-2.29mm 2'': 49.8+/-2.29mm 3'': 75.2+/-2.29mm 4'':100.08+/-2.29mm 5'': 125.48+/-2.29mm 6'': 150.88+/-2.29mm 8'': 201.68+/-3.3mm 10'': 254+/-3.3mm 12'': 303.28+/-2.29mm |
| OUTSIDE DIAMETER | 1.5'': 48.26+/-1.52mm 2'': 59.69+/-2.29mm 3'': 85.09+/-2.29mm 4'':109.98-113.54mm 5'': 133.55-136.91mm 6'': 158.75-162.31mm 8'': 210.56-216.15mm 10'': 268.22+/-2.29mm 12'': 317.50+/-2.29mm |
| PAINT | black bitumen paint |
| PACKING QTY | 1.5'': 82pcs/pallet 2'':66pcs/pallet 3'':58pcs/pallet 4'': 34pcs/pallet 5'': 20pcs/pallet 6'': 17pcs/pallet 8'': 14pcs/pallet 10'': 8 pcs/pallet |
| APPROVAL | UPC approval |
| MOQ |
1X40'GP |

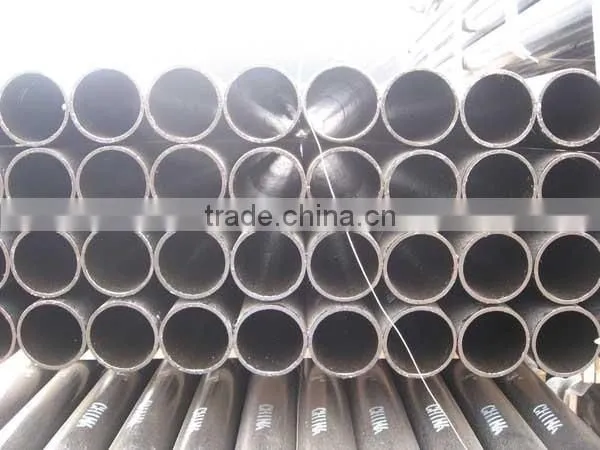

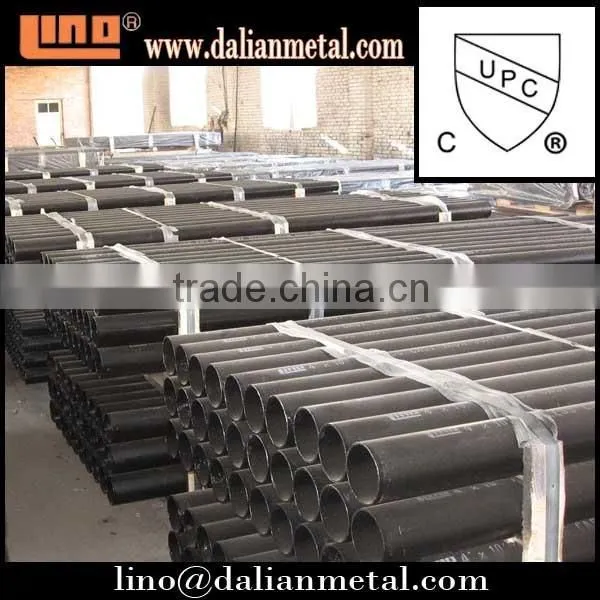

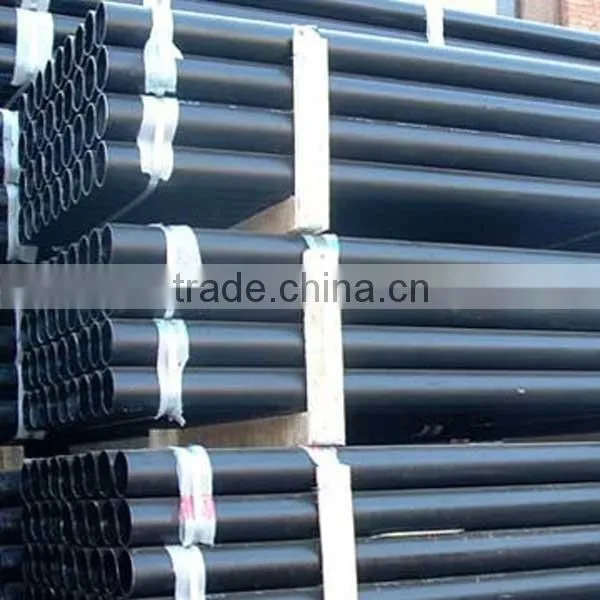

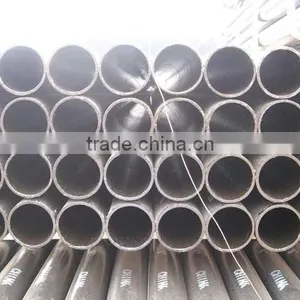

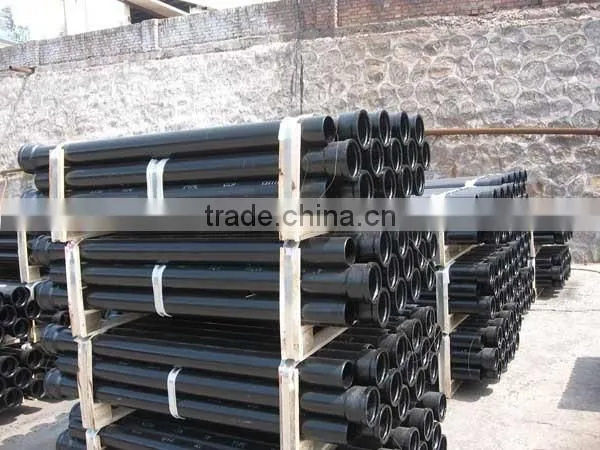

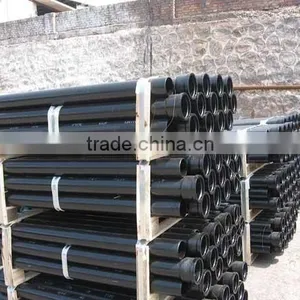

More Pictures of products:
Detailed information:
Our factory has the equipments and technologies, providing high quality products
Cast No-hub Iron Pipe of our products have UPC certification, sold in the North American market
All products undergo strict testing, with authoritative testing report
All fittings products have to undergo a rigorous inspection, worthy of purchasing
The following is the cast iron pipe size table
All the products are with high quality,you can rest assured to buy!
