Specifications
containerized mobile ice plant1. CE approved.
2.Convenient and installation.
3.Saving space and no need of plant.

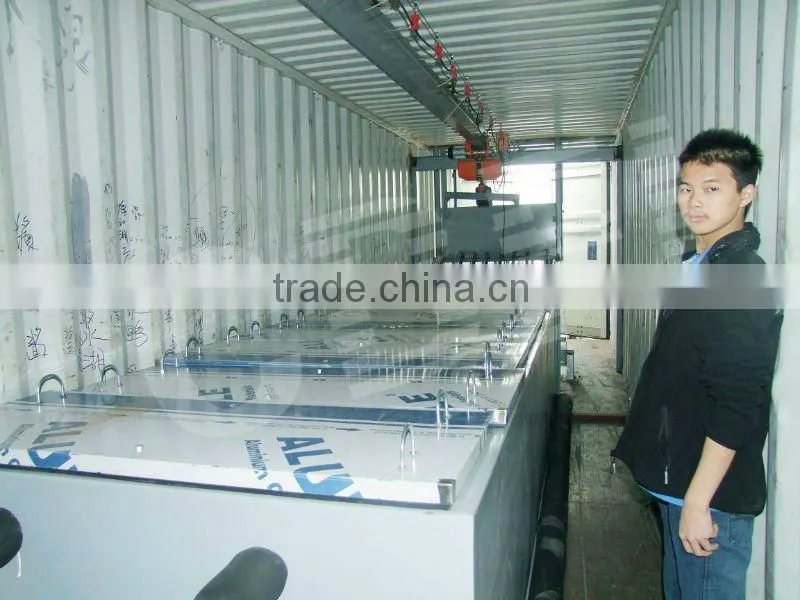

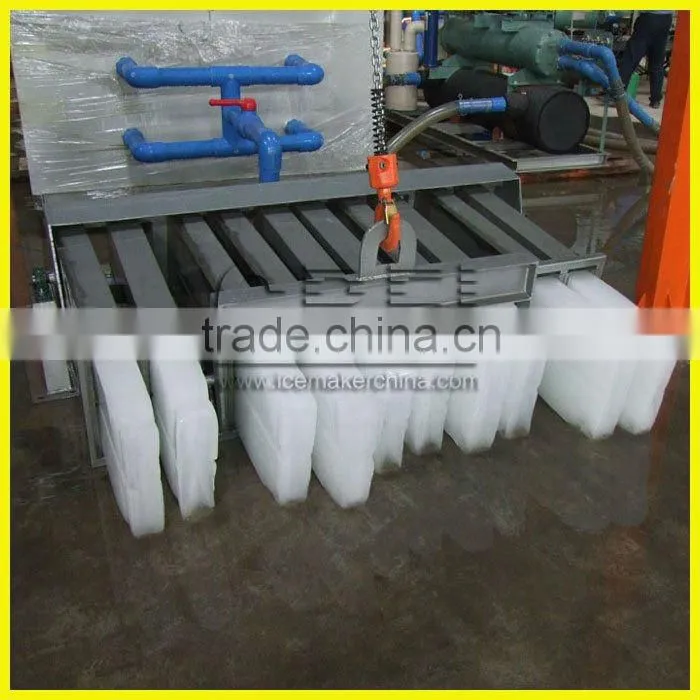

containerized mobile ice plant
Features of containerized mobile ice plant :
Containerized ice block machine is an integrity machine that fit for the mobile ice demand market, vehicle installed, shipping installed.
It is very easy for transportation and installation, if you don't have suitable place to put the machine, then we recommend you to make containerized one, because you don't need to re-build a factory again. Containerized ice block machine matched with the crane, ice pouring shelf for ice fetching.
containerized mobile ice plant for your reference:
The container used for containerized ice block machine is international standard container, 20 feet container and 40HQ container. In a 20 feet container, the maximum daily capacity is 5 tons and the maximum height of block ice is 700mm. In a 40HQ container, the maximum daily capacity is 10 tons and the maximum height of block ice is 900mm.
Model |
Capacity |
Compress Power |
Motor Power |
Voltage |
Frequency |
Outer Dimension(mm) |
||
No. |
Ton/24h |
KW |
KW |
V |
Hz |
L×W×H |
||
MB10 |
1.0 |
3.8 |
0.55 |
230/380/415 |
50/60 |
1200 |
1000 |
600 |
MB15 |
1.5 |
5.6 |
0.75 |
230/380/415 |
50/60 |
1600 |
1200 |
800 |
MB20 |
2.0 |
7.5 |
1.5 |
230/380/415 |
50/60 |
1800 |
1200 |
800 |
MB30 |
3.0 |
11.3 |
1.5 |
230/380/415 |
50/60 |
2100 |
1200 |
1000 |
MB40 |
4.0 |
15.0 |
1.5*2 |
230/380/415 |
50/60 |
3000 |
1470 |
1000 |
MB50 |
5.0 |
18.8 |
1.5*2 |
230/380/415 |
50/60 |
4200 |
1470 |
1200 |
MB60 |
6.0 |
22.5 |
1.5*2 |
230/380/415 |
50/60 |
4800 |
1470 |
1200 |
MB80 |
8.0 |
30.0 |
2.0*2 |
230/380/415 |
50/60 |
5700 |
1470 |
1200 |
MB100 |
10.0 |
37.5 |
2.0*2 |
230/380/415 |
50/60 |
7000 |
1680 |
1200 |
MB120 |
12.0 |
45.0 |
2.5*2 |
230/380/415 |
50/60 |
8500 |
1680 |
1200 |
MB150 |
15.0 |
56.3 |
3.0*2 |
230/380/415 |
50/60 |
9800 |
1680 |
1200 |
MB200 |
20.0 |
56.0 |
5.5*2 |
230/380/415 |
50/60 |
11800 |
1680 |
1500 |
