Ice block making machine worked in 40hq with fully automatic operation system
- 10 Set / Sets per Month
- Guangzhou
- T/T Credit Card
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 5 tons to 12 tons | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | MB series | Ice Shape: | Ice Block |
Voltage: | 380V/3P/50HZ | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
ice block making machine worked in 40hq:*crane system
*water filling device
*machine installed before shipping
*Easy operat
Ice block making machine worked in 40hq with fully automatic operation system

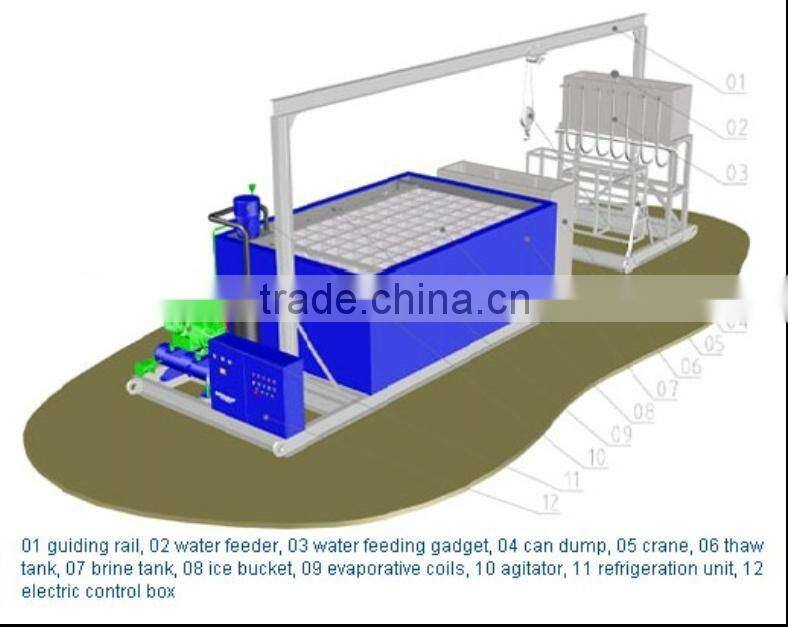

CBFI Containerized Commericial Ice Block Making Machine Workflow:
1. Feeding water in ice moulds.

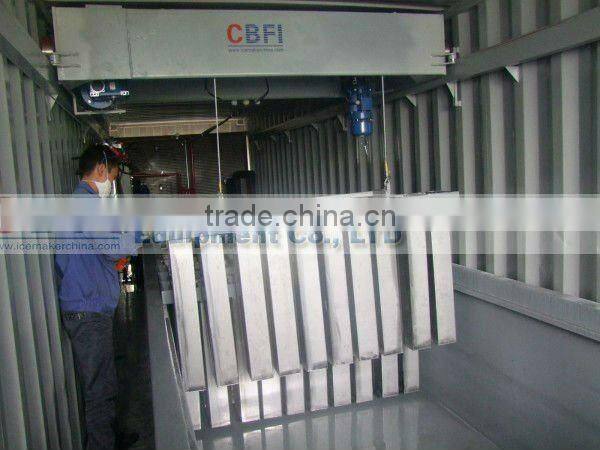

Each row of ice moulds is put to brine tank by ice crane, then the water feeder automatically fills the water in.
2. Salty water agitator makes the salty water flow cyclically.
3. Water in Ice moulds frozen.
Salty water in brine tank is cooled by refrigerator, which is running and cycling and makes the water in ice moulds frozen.
4. Melting block ice moulds.
The crane slings up block Ice moulds into ice thawing tank for melting.
5. Remove / harvest ice.
Damp the ice block from ice moulds with dumper, then store block ice.

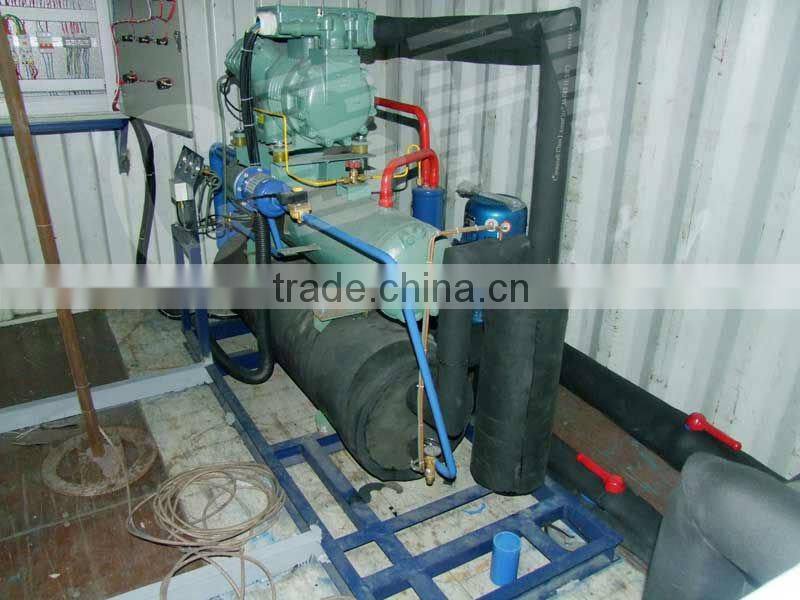

Mainframe Unit (Bitzer compressor, water cooling condenser, evaporator)

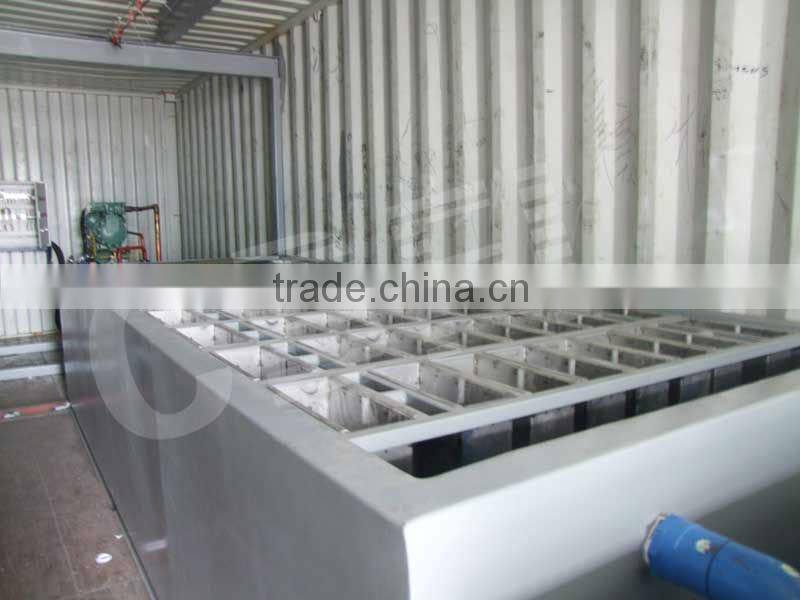

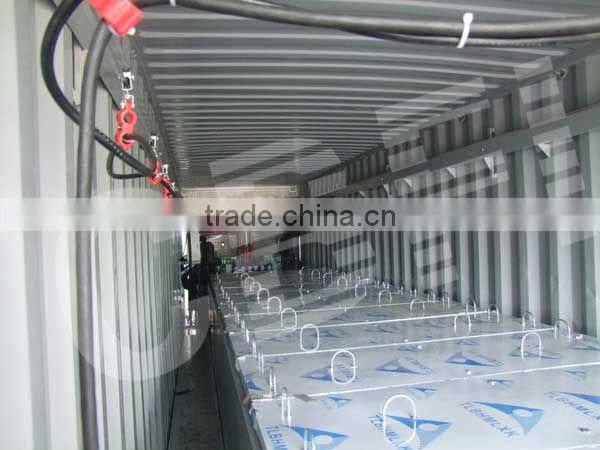

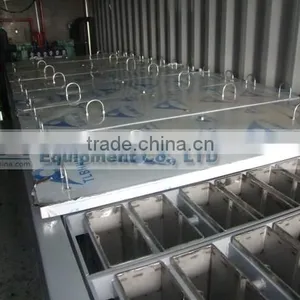

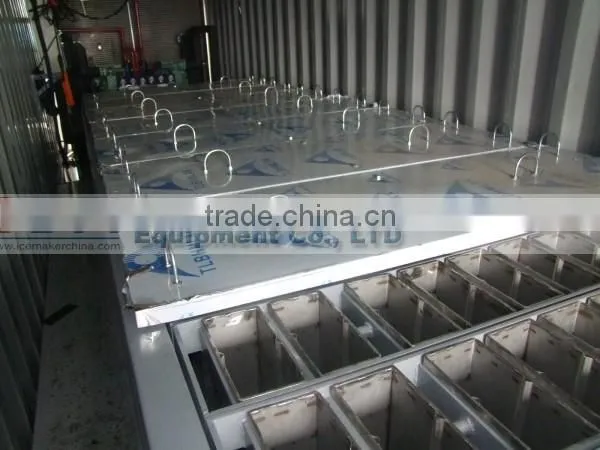

Brne Tank (SS304 Ice Moulds Inside)
Water Pump (anti-corrossion, connect with cooling tower and condenser)
Water Filling Device
CBFI Containerized Commericial Ice Block Making Machine Features:
1. CE approved.
2. Convenient transportation and installation.
3. Mobile ice blocks plant.
4. High quality. Bitzer compressor refrigeration system, Danfoss refrigeration components, Siemens PLC control panel.
5. High efficiency and power saving.
6. Maximum capacity in a 40HQ container is 12 tons per day.
7. Good craft work and customized, long service life.
8. Match with related ice fetching crane, easy operation and saving manpower.
9. One year warranty.
Containerized commercial block ice maker is an integrited machine that fit for the mobile ice demand market, vehicle installed, shipping installed. It is very easy for transportation and installation, if you don't have suitable place to put the machine, then we recommend you to make containerized one, because you don't need to re-build a factory again. Containerized commercial block ice maker is matched with the crane, ice pouring shelf for ice fetching, and the multi-tube water filling box for filling water automatically so that the whole operation is more convenient and reduce the manpower for the machine. Through the specialized processing for the container, the container has good anti-corrosion effect and anti-slide performance. And making a deleting sounds and sound-proof design for the refrigeration unit, it further improves the container’s working environment.
The container used for containerized commercial block ice maker is international standard container, 20 feet container and 40 feet container. In a 20 feet container, the maximum daily capacity is 5 tons and the maximum height of block ice is 700mm. In a 40 feet container, the maximum daily capacity is 12 tons and the maximum height of block ice is 900mm.
If you are interested in our ice block making machine worked in 40hq, please contact us. We will get back to you within 24hours after getting your inquiry.
Note: in your inquiry, pls kindly inform me the information below:
1. What's the daily production of the machine do you want? We can offer from 1ton to 100ton.
2. What's the weigght for each ice block? We can design at 2.5kg, 5kg, 10kg, 15kg, 20kg, 25kg, etc.
3. What's your voltage for running the machine? Our standard one is 380V/3Phase/50Hz.
Thanks.
