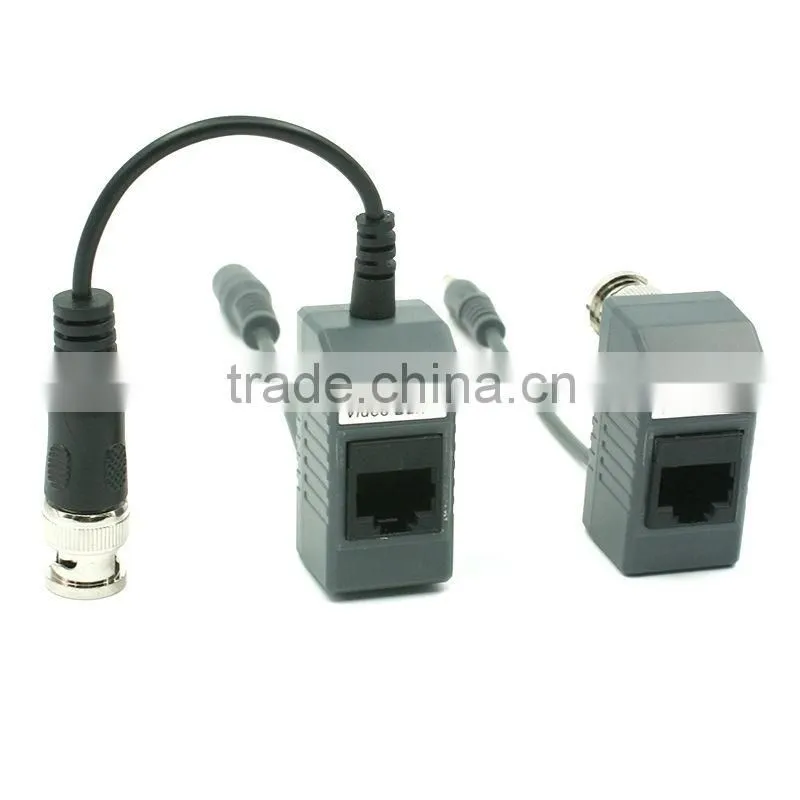

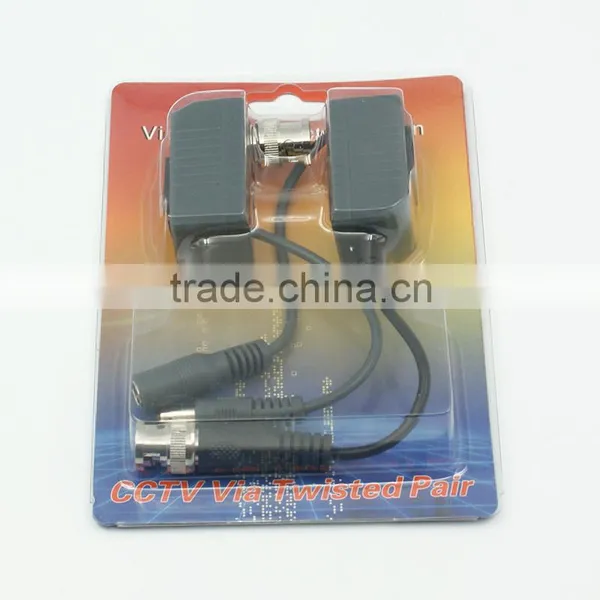

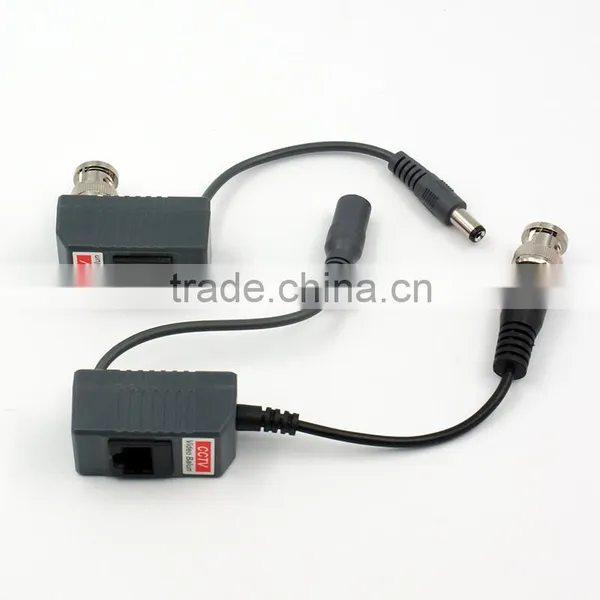

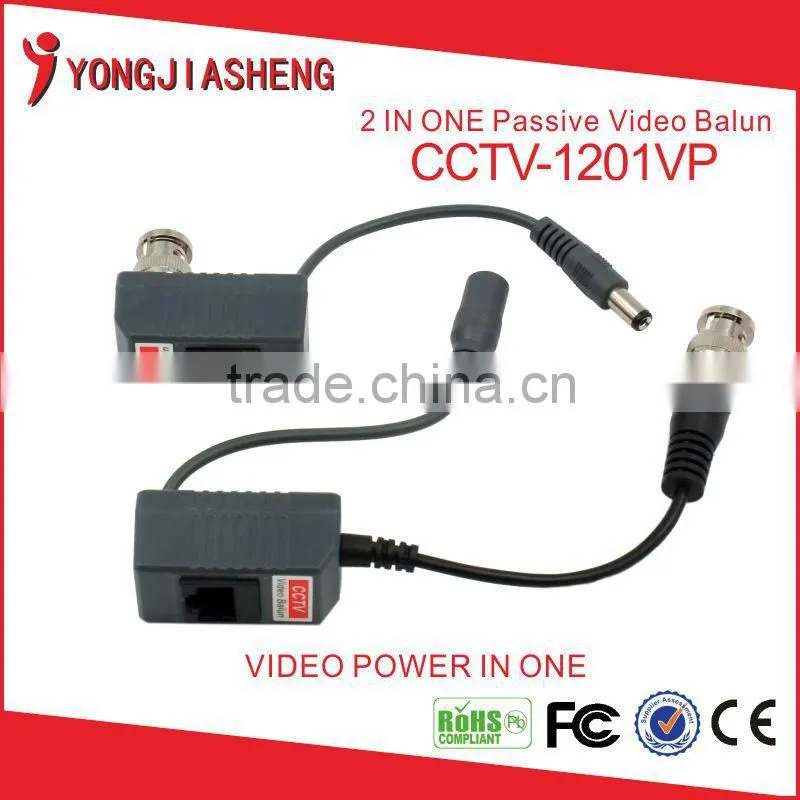

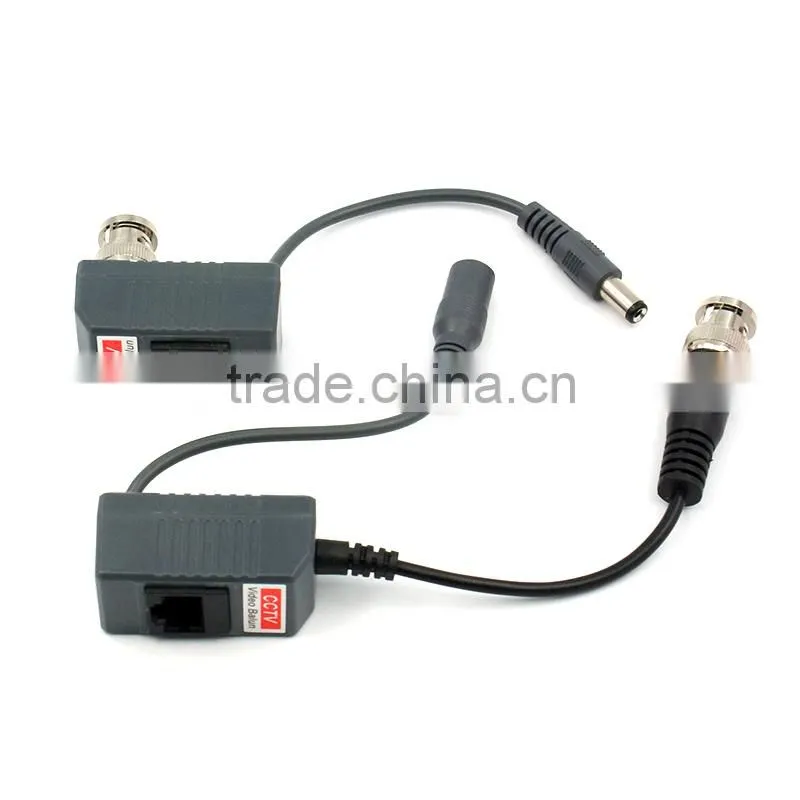

YJS-1201VP Video Balun 350-550 Meters RJ45 Interface Active Power
Features:
- NTSC,PAL&SECAM video format compatible
- Real time transmission
- Exceptional interference rejection
- Wave Filter Design,Anti-Static Design,Surge Protection
- Long-distance transmission and high-quality image
- Compact size and easy installation
- Cost-effective
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| Video Distance with passive | 350-550m |
| Power transmission distance | 300m |
| Video | |
| Video Format | PAL,NTSC,SECAM |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω |
| Terminal:100Ω | |
| Wire type | |
| Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| No External power required | No External power required |
| Protection | |
| Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |

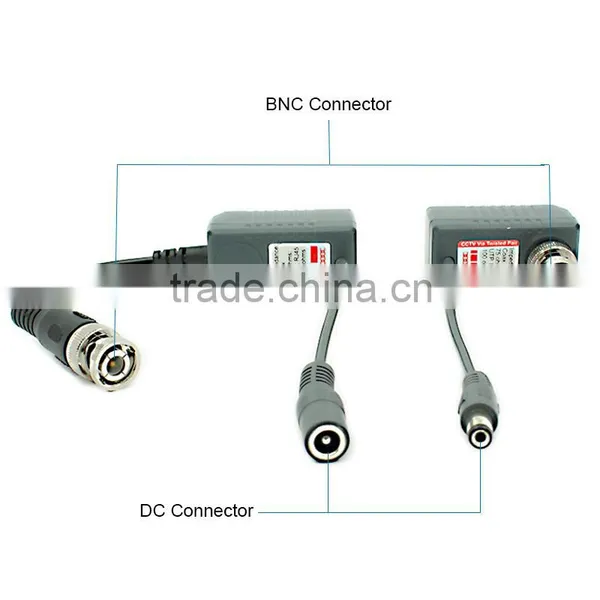

| Video input/output | Male BNC / RJ45 Port / DC Jack |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Gray |
| Dimensions | 145*100*24mm |
| Gross weight | 71g |
| Environment | |
| Operating Temperature | -20°C-70°C |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40°C-80°C |
1. We guarantee that all our items are "as stated" in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
2. Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
3. If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
The function of the CCTV Video Balun is to allow the traditional 75-ohm coaxial video cable to be replaced by Category 5E/6 (or better) twisted pair in the CCTV security and surveillance environment, thereby allowing CCTV camera and monitoring equipment to be deployed more cost-effectively using structured cabling techniques.
