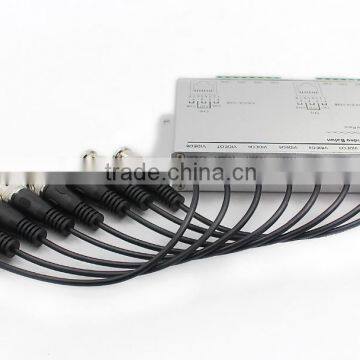

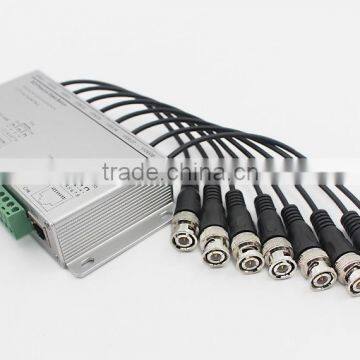

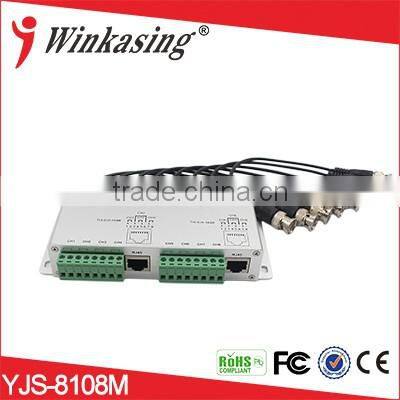

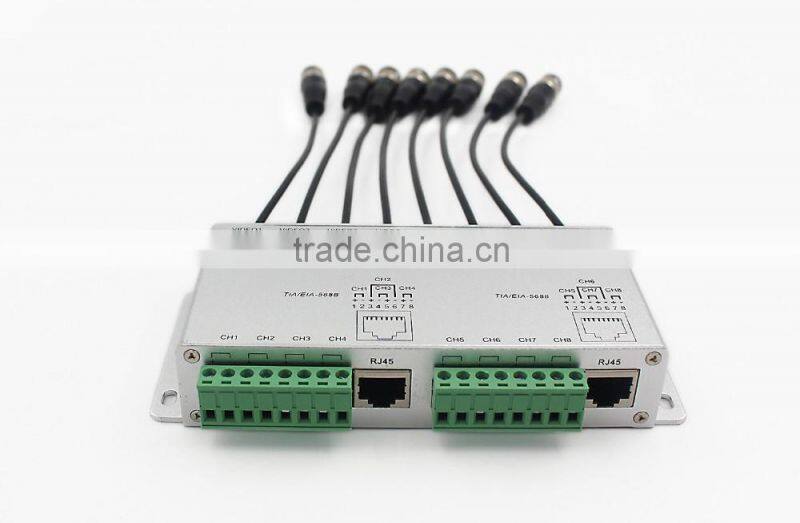

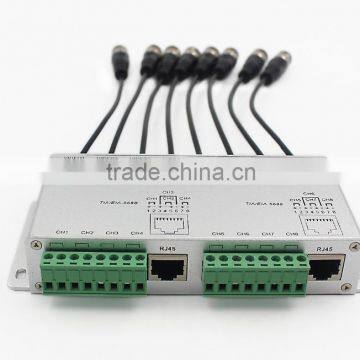

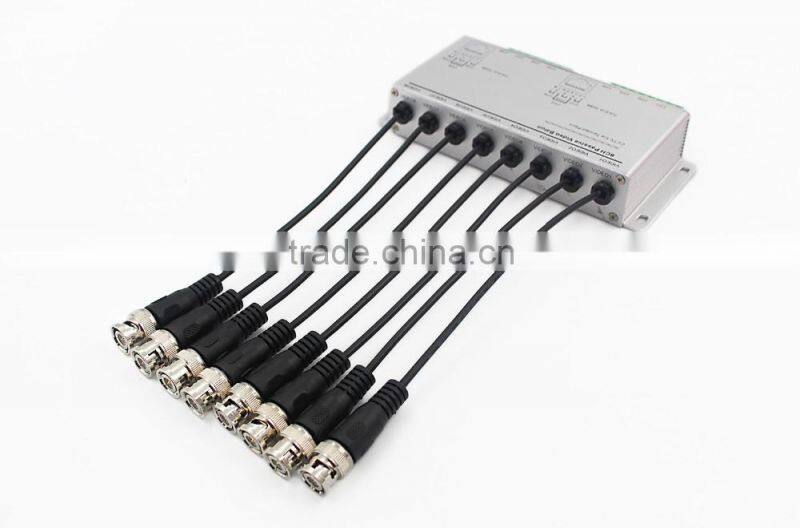

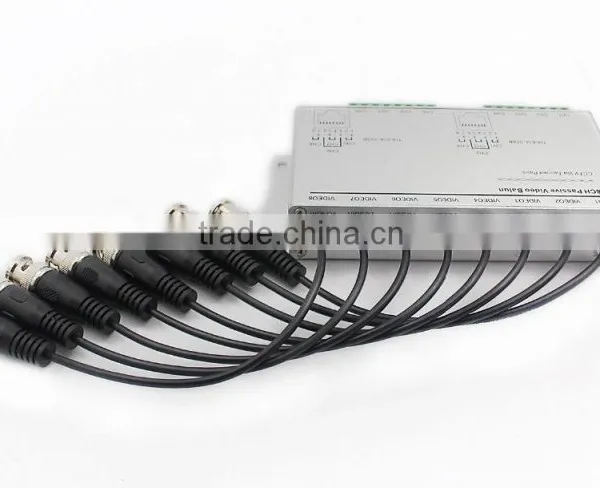

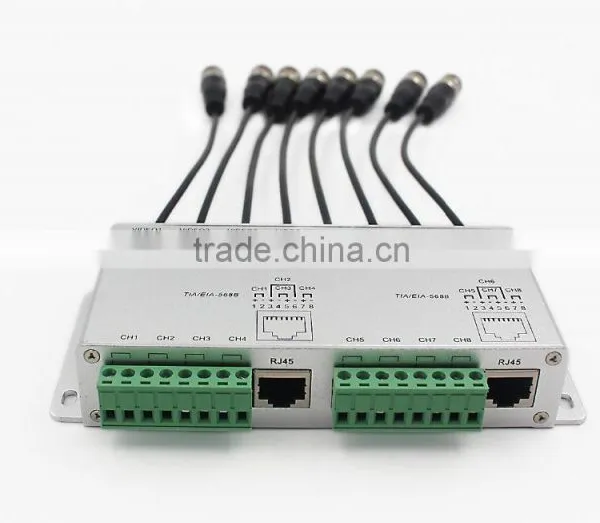

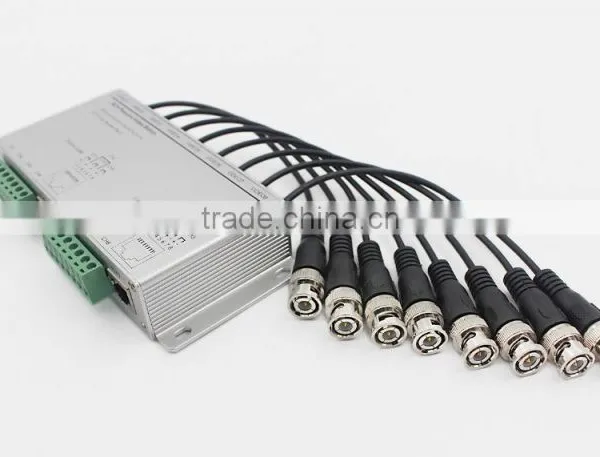

Popular product YJS-8108HD 8CH AHD Passive Vedio Balun 350-600 Meters
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| Transmission Distance with passive | 350-600m |
| Video | |
| Video Format | PAL,NTSC,SECAM |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Female BNC 75Ω |
| Terminal:100Ω | |
| Wire type | |
| Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| No External power required | No External power required |
| Protection | |
| Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Female BNC / Push-Pins / RJ45 |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Silver |
| Environment | |
| Operating Temperature | -20°C-70°C |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40°C-150°C |
1. We guarantee that all our items are "as stated" in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
2. Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
3. If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
The function of the CCTV Video Balun is to allow the traditional 75-ohm coaxial video cable to be replaced by Category 5E/6 (or better) twisted pair in the CCTV security and surveillance environment, thereby allowing CCTV camera and monitoring equipment to be deployed more cost-effectively using structured cabling techniques.
1.We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
2.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
3.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.
