Coil Pipe Evaporater Ice Block Maker In Africa With Exclusive Licence

Coil Pipe Evaporater Ice Block Maker In Africa With Exclusive Licence photo-1
Coil Pipe Evaporater Ice Block Maker In Africa With Exclusive Licence photo-2
Coil Pipe Evaporater Ice Block Maker In Africa With Exclusive Licence photo-3
Coil Pipe Evaporater Ice Block Maker In Africa With Exclusive Licence photo-4
Coil Pipe Evaporater Ice Block Maker In Africa With Exclusive Licence photo-5
Coil Pipe Evaporater Ice Block Maker In Africa With Exclusive Licence photo-6
US$ 1000000.00 - 1000000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
20000kg/24h
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Capacity 20000kg/24h
Place of Origin Guangdong, China
Brand Name CBFI
Model Number BBI200
Ice Shape Ice Block
Voltage 380v/50hz/3p special power also can do
Power(W) 71.5kw
Dimension(L*W*H) 11560*4200*1565mm
Weight 4700kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Coil Pipe Evaporator Ice Block Maker In Africa With Exclusive Licence

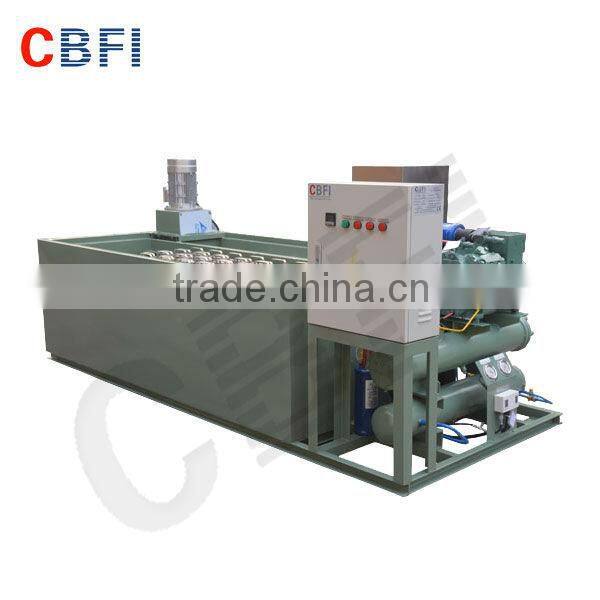

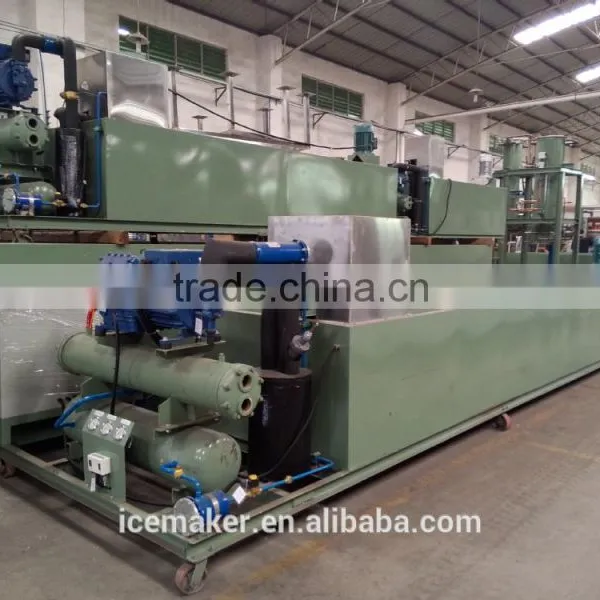

BBI Series Ice Block Machine

BBI Series Ice Block Machine is the SECOND GENERATION  ice block machine developed by CBFI, adopting coil pipe evaporator. For its high efficiency, low power consumption and more “fool” typed installation, the BBI ice block machine has enjoyed its popularity around the world.

SPECIFICATIONS FOR 5 TON ICE BLOCK MACHINE

Working Conditions
Power Supply
380V/50Hz/3P
Refrigerant
R22/R404A
Cooling Way
Water Cooling/Air Cooling

Temperature
Supply Water Temperature
+23℃
Condenser Temperature
+40℃

Compressor
Brand
Germany Bitzer/Germany Bock/America Copeland
Type
Semi-Hermetic Piston

Cooling Tower
Brand
CBFI
Size
Φ 1650mm*1845mm

Agitator
Brand
Siemens
Power
2.2kW

Main Features

1) More "fool" typed installation, less space needed and convennient to move.

2) Energy saving, ice macking power consumption is only 74kW·h/ton block ice.

3) Adopting coil pipe evaparator, no need worrying about ice forming inside the evaporator.

4) Using agitator with better heat exchange effet, no need worrying about the high cost for repairing the water pump.

Detailed Images

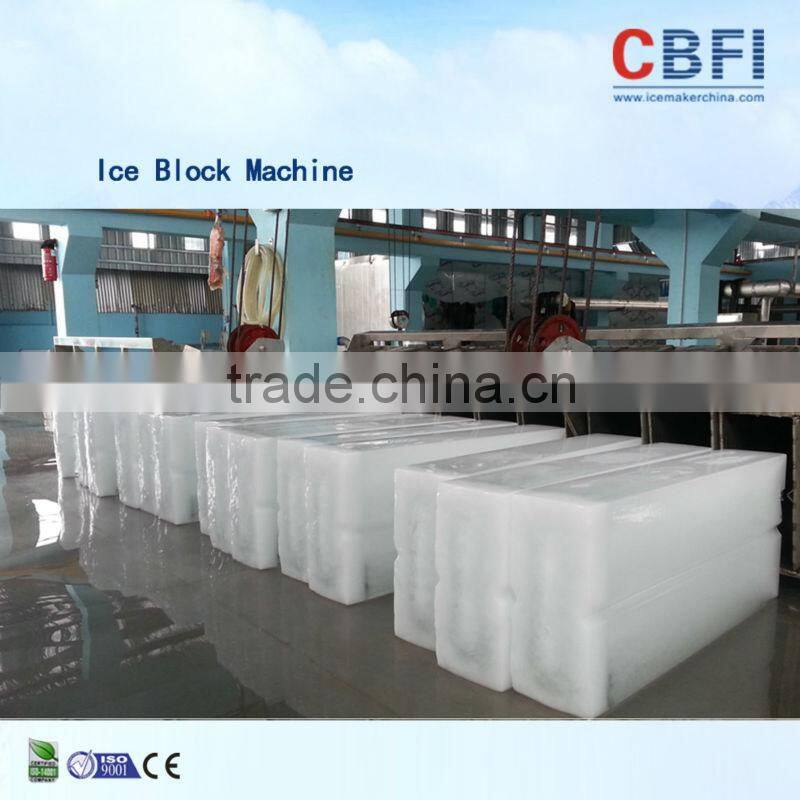

Block Ice


Application

1.Fresh keeping.

2.Food preservation.
3. Distance transportation.

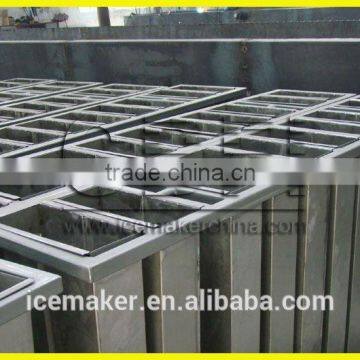

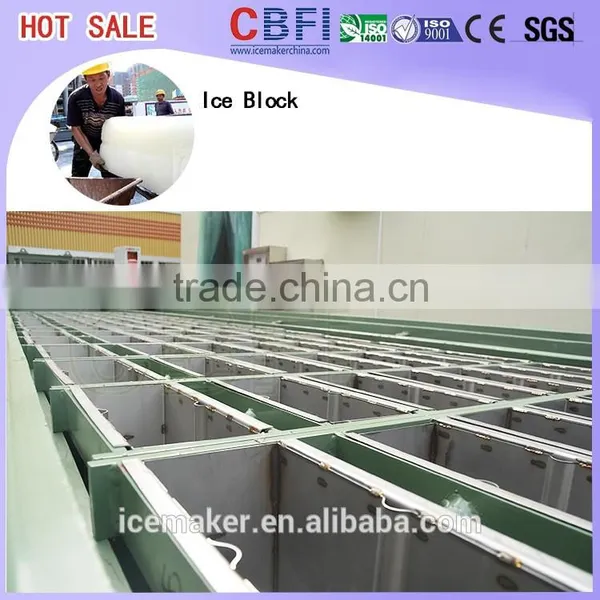

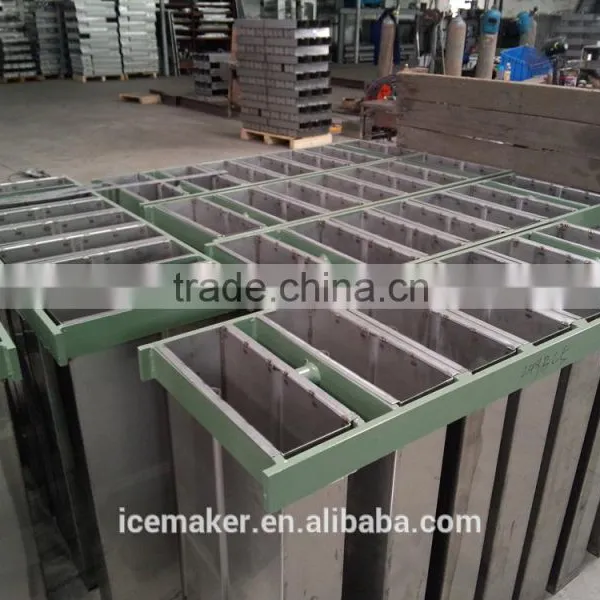

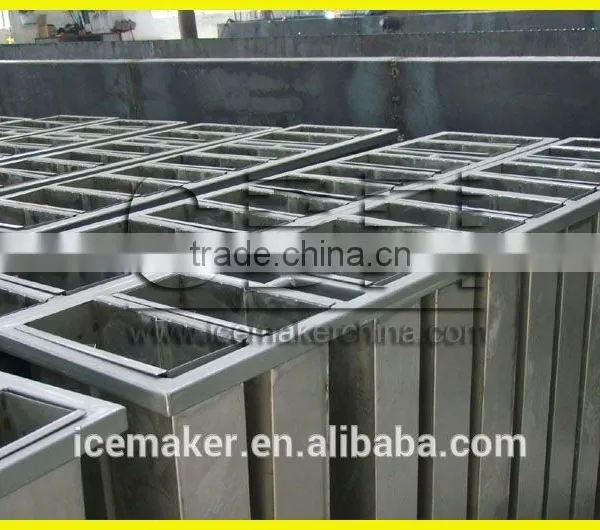

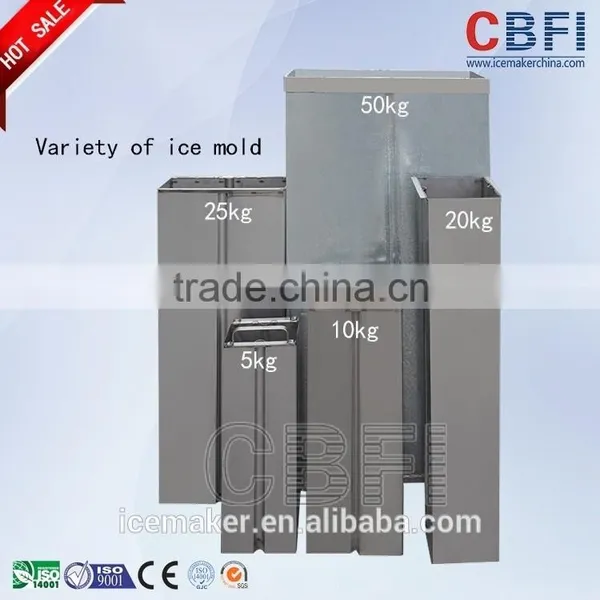

Ice Moulds

Features:

1.Stainless Steel 304 materials making block ice clean.
2.Unique groove design at the middle of the mould reduce ice pressure to the mould.

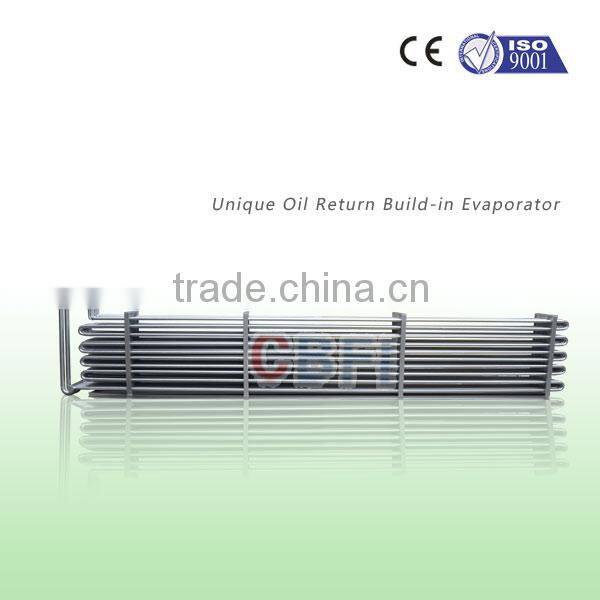

Coil Pipe Evaporator

Features:
1.Large heat exchange area of evaporator make the brine water cooling fast and ice freezing fast.
2.Unique oil return design ensures the compressor life.

3.Coil Evaporator was put inside the brine water tank directly, it's very convenient to clean the scale.
4.Hydraulic pipe bending technology reduces the welding point greatly.

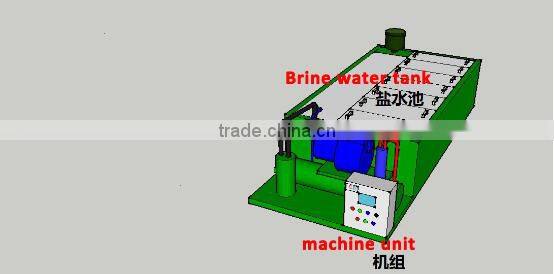

Brine Tank

Construction:

1.A tank.

2.An agitator.
3.An evaporator.
4.Ice moulds.
5.Ice mould shelves.

Our Service

1)Warranty: warranty is one year. You can call us on phone and our technician can go to your country to service when there is a problem, you need to pay the cost.

2)Manual book: We will offer detail instruction book with clear drawing to tell you how to install and operate the machine.

3)We can teach the customer's technician how to operate and install machines if
he come to our factory in Guangzhou.


4) It's possible for our technican to go to your country for the installation and they are experienced in installating the ice machine for customers in different countries.

5) If you are interested in our products, please contact us. We would be very glad to give you our best service.


Packing & Delivery
Packaging
Size
6790mm(L) * 2080mm (W) * 950mm (H)
Weight
1.7 T



Packaging Details
1.The normal package is wooden box.

2.Containerized design no need packing

3.Machine installed completely and strictly tested in our factory before shipping.

Delivery
30 working days
Certifications
