Ice Block Making Price
1.About Industrial Block Ice Machine:
1. Ice block machine have brine design, containerized design and direct evaporate design (use aluminum make ice cans).
2. Ice block machine for produce big block ice, can design each ice block as 2.5kg, 5kg, 10kg, 15kg, 20kg, or 25kg......
3. It is big ice so can keep for long time. For some country, specially, Africa country the power supply is not steady, so need big ice keep fresh for food or some other things or chilling drinks and water.
4. Daily capacity of ice block machine can be from 1ton to 100tons.
2.Industrial Block Ice Machine Different Model:
Item |
Production |
Rated Power |
Circulating Water Pump Power |
Cooling Water Pump Power |
Cooling Fan Power |
Machine Dimension |
Weight of Machine |
No. |
Ton/24H |
KW |
KW |
KW |
KW |
L*W*H |
KG |
MB10 |
1.0 |
3.92 |
2.2 |
1.5 |
0.37 |
2820*1410*965 |
900 |
MB20 |
2.0 |
7.11 |
2.2 |
1.5 |
0.55 |
1700*750*1500 2220*1440*1065 |
1100 |
MB30 |
3.0 |
9.68 |
2.2 |
2.2 |
0.75 |
1800*750*1500 3000*1380*1065 |
1300 |
MB40 |
5.0 |
12.56 |
4 |
2.2 |
0.75 |
2000*800*1600 3110*1470*1075 |
1500 |
MB50 |
8.0 |
14.6 |
4 |
2.2 |
1.5 |
2000*800*1600 4560*1380*1150 |
1700 |
MB60 |
6.0 |
18.84 |
4 |
2.2 |
1.5 |
2000*800*1600 5340*1380*1150 |
1900 |
MB80 |
8.0 |
21.30 |
4 |
4 |
1.5 |
2000*1000*1800 7720*1950*1150 |
2300 |
MB100 |
10.0 |
26.60 |
5.5 |
4 |
2.5 |
2500*1200*2000 6360*3710*1565 |
2700 |
MB150 |
15.0 |
48.30 |
7.5 |
5.5 |
3.5 |
3100*1200*2000 9280*2260*1560 |
3700 |
MB200 |
20.0 |
63 |
7.5 |
7.5 |
4.5 |
3500*1500*2200 11560*4200*1565 |
4700 |
|
Note: Dimension of machine for reference only, its real size according to after final confirm size of each ice block and quantity of ice block cans. | |||||||
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation.
It didn mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition: water temperature: 23Centi degree, evaporate temperature:-20Centi degree, condensing temperature 40Centi degree, reference valve under 50Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
3.The pictures of products show :

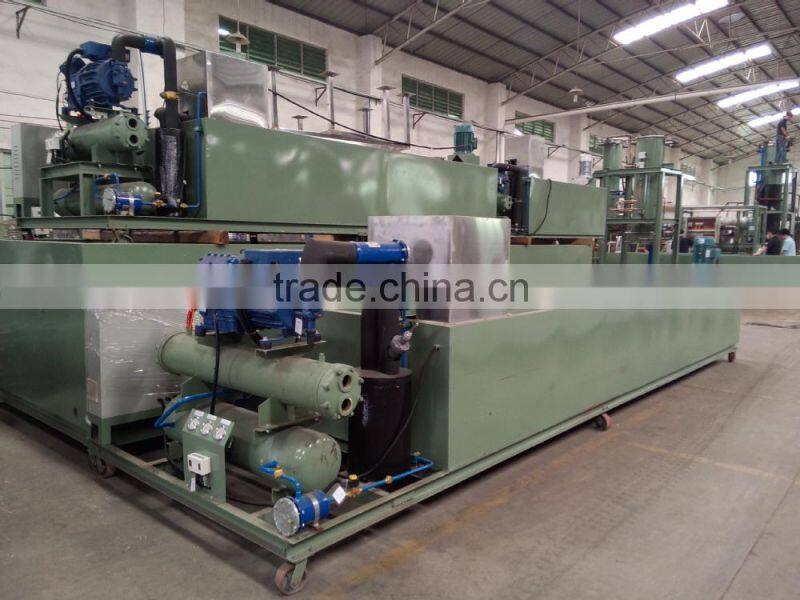

The refrigerating unit of the block ice machine

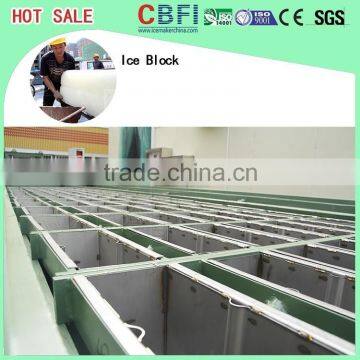

Block ice moulds
Cooling Tower

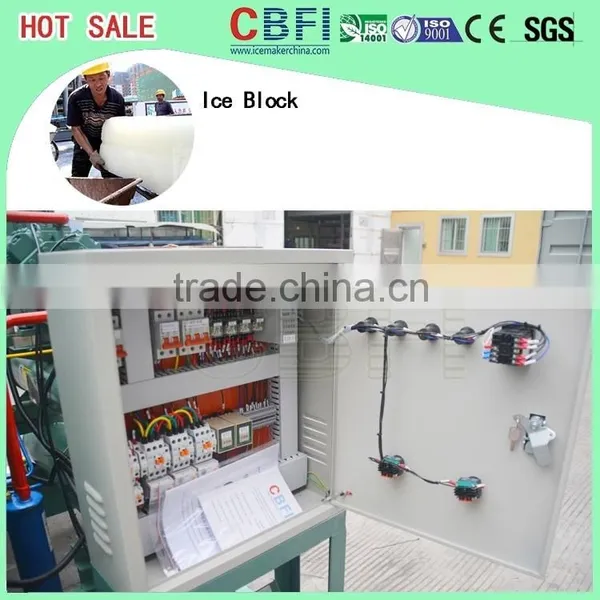

Stainless steel Electric Box
The worker was taking the block ice from ice moulds.
t
Block ice and ice mould
1. Our factory is located in Guangzhou city, China. It is near the Baiyun International Airport and it is closed two famous port of south China, Huangpu Port and Nansha Port. It is convenient
for load and transport goods and for customers to come to visit our factory.
2. We started in researching, developing and selling all kinds of ice machines since 2004.
3. Our main products are: cube ice machine, tube ice machine, block ice machine, plate ice
machine, flake ice machine and cold room.
4.We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand,
Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico,
Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon,
Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
YOU AND WE
Welcome more and more customers come to us, visit our
factory and give us suggestion, let us make progress,
thanks!
1. We have a large aftersale service team. All the technicians are very experienced, they
always go to different countries to serve customers like you.
2. The warranty of the whole machine is 12 months.
1. Standard wooden case.
2.Completely ice machine contain: ice machine, cooling tower, water pump, water pipes
and water pipe fittings.
3. Machine come into use, customers only need prepare power for the machine.
4. All required components for installing the machine will be provided.
1.Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2.Q:do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3.Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
4.Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
