Commercial automatic block ice machine for Africa
- 20 Set / Sets per Month
- GZ Huangpu or Nansha Port
- T/T Credit Card
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 1000kg/ 24 hours | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | ABI10 | Ice Shape: | Ice Block |
Voltage: | standard power 380V/50Hz/3P | Power(W): | 4.28KW | Dimension(L*W*H): | 2500*1300*2200mm |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Daily capacity:1-10 tons.2. Containerized type, maximum 3 tons in 20ft & 10 tons in 40HQ.
3. Edible ice.
4. PLC control.
Commercial automatic block ice machine for Africa
Compared to traditional brine system block ice machine, Guangzhou Icesource Automatic Block Ice Machine has the following advantages:
1. Edible block ice. The biggest feature of automatic block ice machine is that there is no need salt water or other refrigerating medium in the process of ice freezing. And the ice is more sanitary and can be edible for human directly. But the traditional brine system block ice machine use brine as refrigerating medium and it is not safe to human eating.

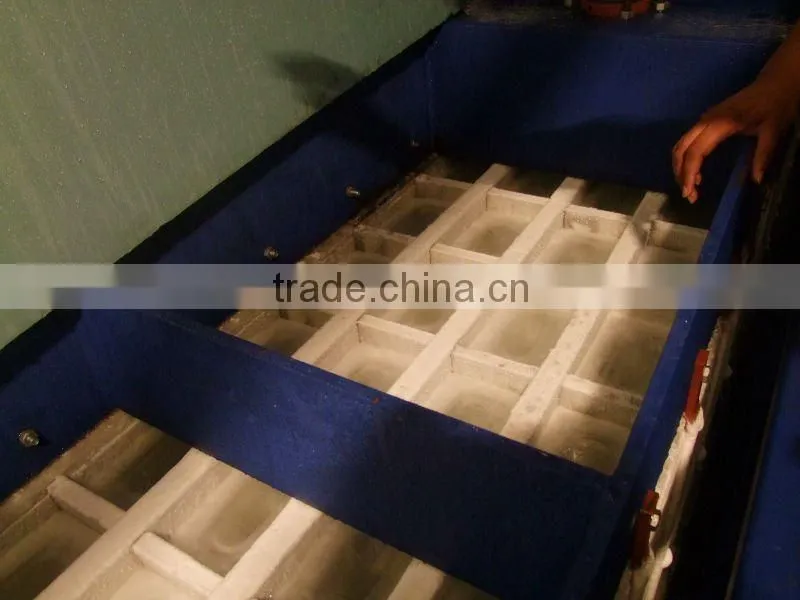

2. Material. The material of automatic block ice machine is aluminum alloy plate. The whole process of ice forming is sanitary and clean and it can reach the edible standards on the condition that the supplying water is edible.
3. Faster ice falling. On ice falling, automatic block ice machine is 1.5 times faster than brine system, ice can fall off within 25-30 minutes.

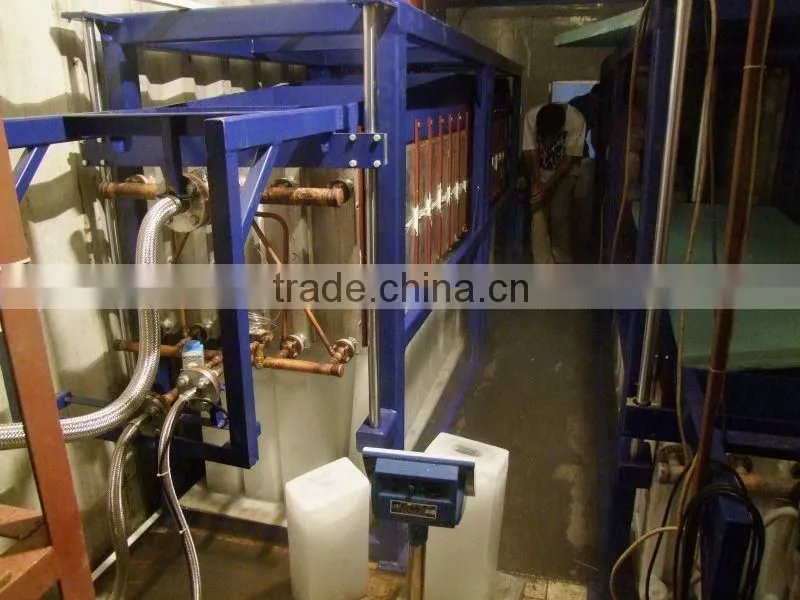

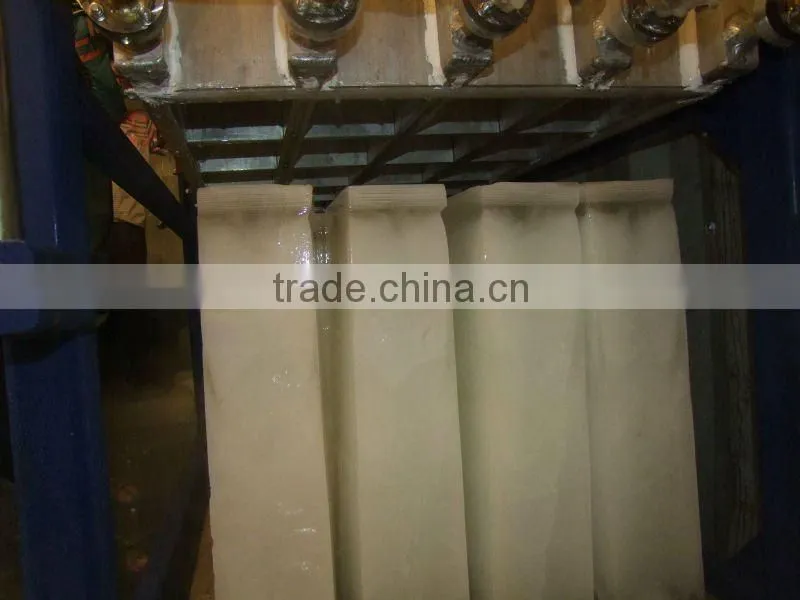

4. Convenient ice fetching. When ice block formed, it will automatically drop on a special ice contact convey device from the ice molds. It needn't crane or other hoist equipment to fetch ice. So it reduces the investment cost and save more space.
5. Power saving. Automatic block ice machine can save at least 10% electricity compared to brine system.
6. Long service life. Automatic block ice machine is corrosion resistant and low maintenance. And it can use beyond 30 years.
With regards to block ice weight, we can design 2kg, 3kg, 4kg, 5kg, 10kg, 15kg per piece, or customized.

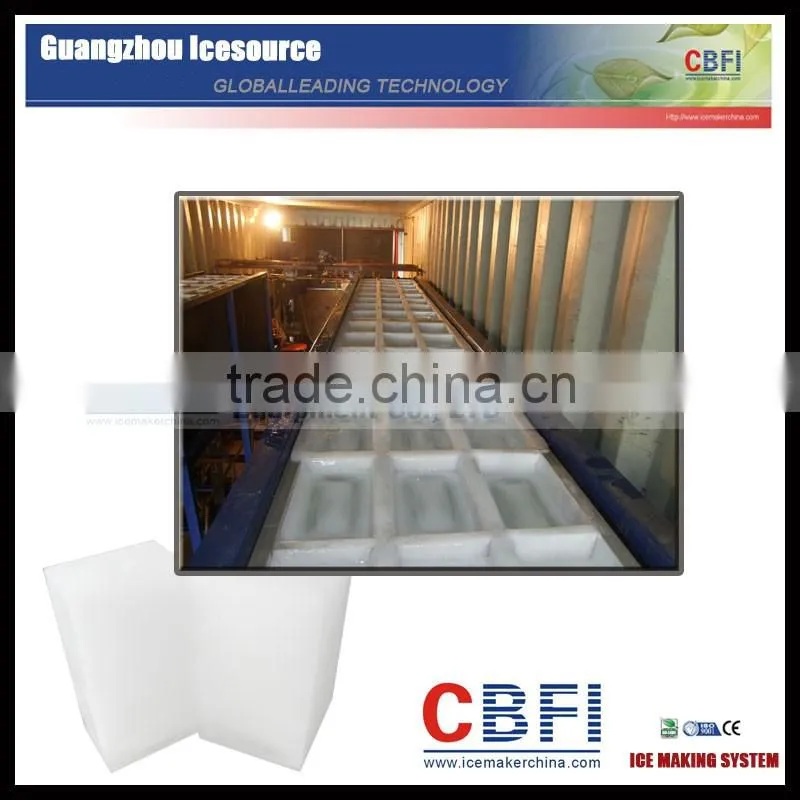

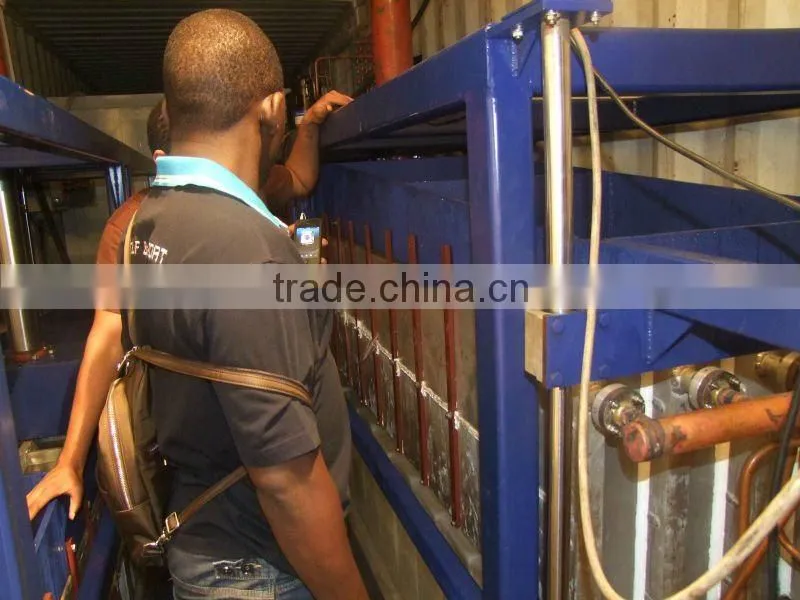

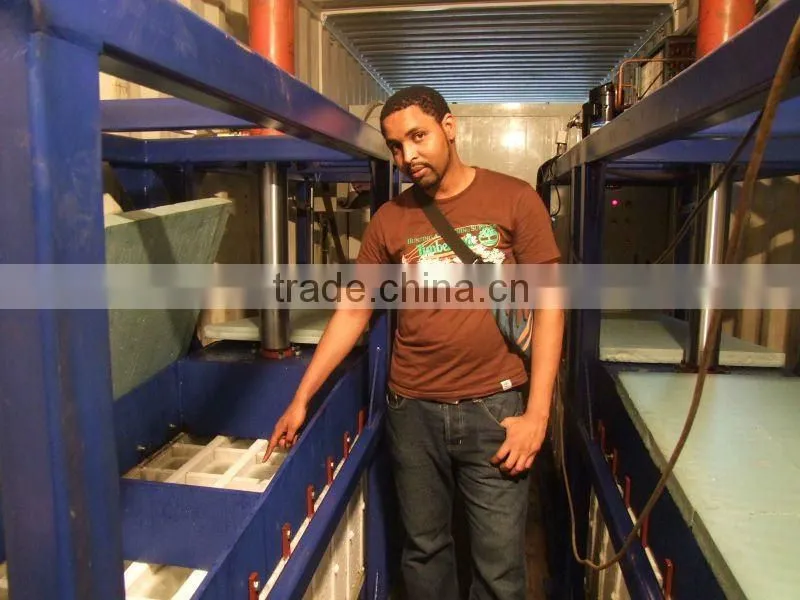

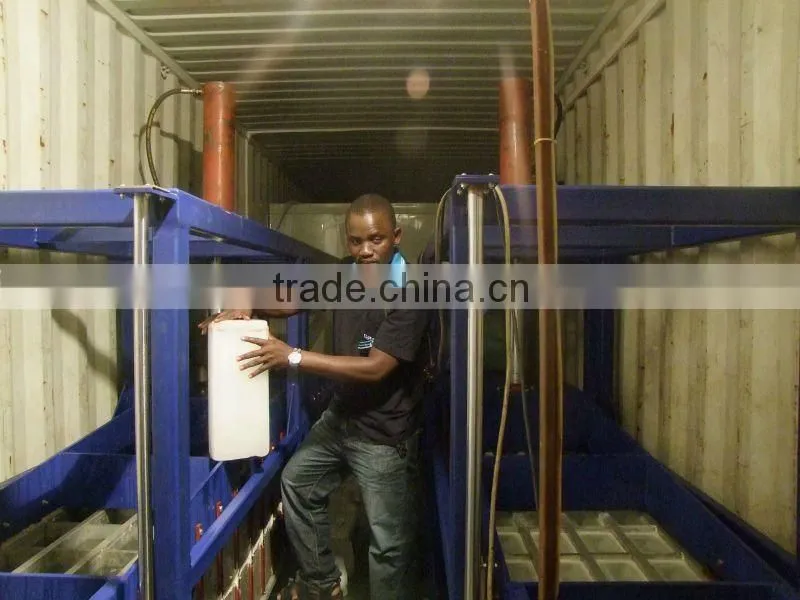

In addition, automatic ice block making machine also can be containerized as follows:
1) The biggest capacity containerized type in a 20' container is 3ton/24 hours.
2) The biggest capacity containerized type in a 40 HQ container is 10ton/24 hour.

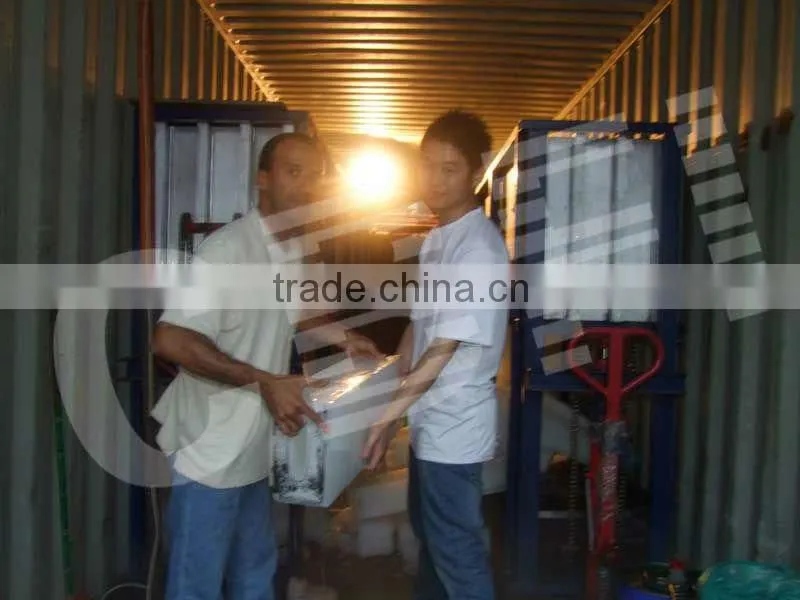

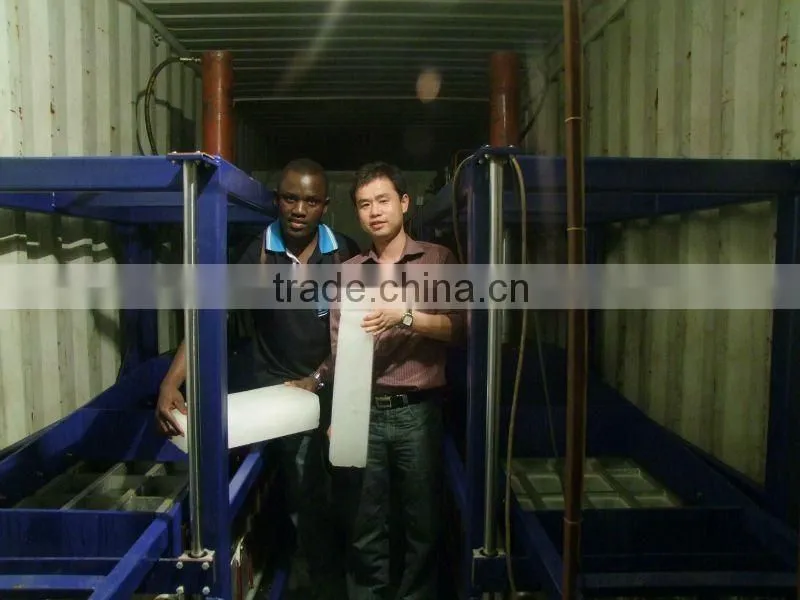

For containerized automatic block ice machine, it is very easy for transportation and installation, if you don't have suitable place to put the machine, then we recommend you to make containerized one, because you don't need to re-build a factory again.

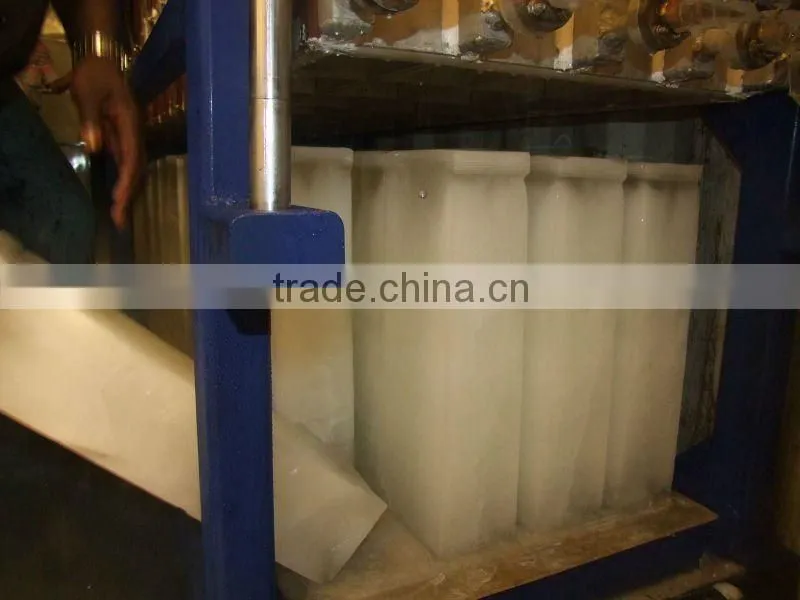

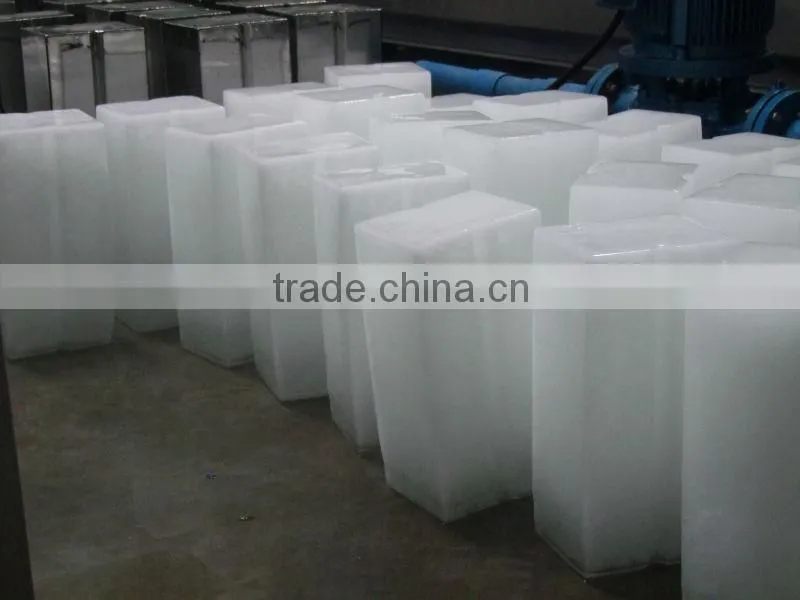

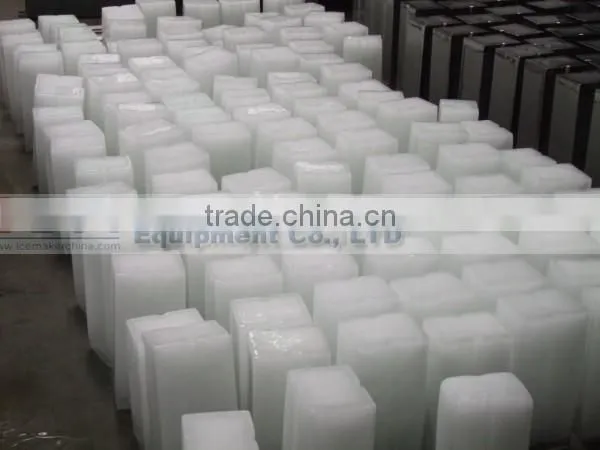

5kg block ice
10kg block ice
Automatic Ice Block Machine Models:
Model | Capacity | Compressor Power | Cooling water pump power | Cooling fun power | Outer dimension |
NO. | Ton/24h | KW | KW | KW | L*W*H(mm) |
ABI10 | 1 | 4.28 | 1.1 | 0.18 | 2200*2500*1300 |
ABI20 | 2 | 7.77 | 1.5 | 0.37 | 3300*2200*1600 |
ABI30 | 3 | 12.33 | 1.5 | 0.56 | 3800*2200*1600 |
ABI50 | 5 | 16.04 | 2.2 | 0.75 | 5800*2200*2200 |
ABI80 | 8 | 25.1 | 4 | 1.5 | 8800*2200*2200 |
ABI100 | 10 | 29 | 4 | 1.5 | 10800*2200*200 |
If you are interested in our products, please contact us. We would be very glad to be on service for you. As the most professional ice machine manufacture in China, we are pleased to do our best offer to open a good market for you. We are definitely to contact you within 24 hours after getting your enquiry.
