Specifications
Block Ice Maker1.daily capacity of machine 6.0tons/24h
2.ice block weight designable
3.ice block can is stainless steel
Ice Block Machine is a highly efficient refrigeration unit, which mainly aim at the area such as Africa, Middle East and Oceania where has a big demand in ice. Commercial block ice machine adopts integrated design, having easy installation, just connecting the power and water pipe to use.
MB Series Block Icee Machine:
For producing big block ice, as 2.5kg, 5kg, 10kg, 15kg, 20kg, or 25kg.
Daily capacity can be from 1ton to 20tons.
It is big ice, so can keep for a long time. For some country, specially, Africa country the power supply is not steady, so need big ice keep fresh for food or some other things or chilling drinks and water.
Ice block machine models for your reference:
Model |
Capacity |
Compress Power |
Motor Power |
Voltage |
Frequency |
Outer Dimension (mm) |
No. |
Ton/24h |
KW |
KW |
V/HZ/P |
Hz |
L×W×H |
MB10 |
1.0 |
3.8 |
0.55 |
230/380/415 |
50/60 |
1200*1000*600 |
MB15 |
1.5 |
5.6 |
0.75 |
230/380/415 |
50/60 |
1600*1200*800 |
MB20 |
2.0 |
7.5 |
1.5 |
230/380/415 |
50/60 |
1800*1200*800 |
MB30 |
3.0 |
11.3 |
1.5 |
230/380/415 |
50/60 |
2100*1200*1000 |
MB40 |
4.0 |
15.0 |
1.5*2 |
230/380/415 |
50/60 |
3000*1470*1000 |
MB50 |
5.0 |
18.8 |
1.5*2 |
230/380/415 |
50/60 |
4200*1470*1200 |
MB60 |
6.0 |
22.5 |
1.5*2 |
230/380/415 |
50/60 |
4800*1470*1200 |
MB80 |
8.0 |
30.0 |
2.0*2 |
230/380/415 |
50/60 |
5700*1470*1200 |
MB100 |
10.0 |
37.5 |
2.0*2 |
230/380/415 |
50/60 |
7000*1680*1200 |
MB120 |
12.0 |
45.0 |
2.5*2 |
230/380/415 |
50/60 |
8500*1680*1200 |
MB150 |
15.0 |
56.3 |
3.0*2 |
230/380/415 |
50/60 |
9800*1680*1200 |
MB200 |
20.0 |
56.0 |
5.5*2 |
230/380/415 |
50/60 |
11800*1680*1500 |
1. Standard wooden case for packing main frame of block ice machine. Containerized design no need packing.
2. Machine installed completely and strictly tested in our factory before shipping.
3. Completely machine: icee machine, cooling tower, water pumps, water pipes, water pipe fittings.
4. Customer only need prepare power and water for running the machine. All required components for install the machine will be provide
Note: the size of machine for reference only, for different block ice size design, machine's size will be different. Kindly confirm your requirement for each ice block design and power form of the size for install and use the machine.
2tons ice block machine
Our factory was located in Panyu District of Guangzhou, Guangdong Province, it is near two famous port of South China Huangpu Port and Nansha Port, and not far from Baiyun airport. It is convenient for load and transport goods and for customers come to visit our factory.
Our company is specialize in research, design, produce and sell large production ice cube machine, ice block machine, ice plate machine, ice tube machine and shaved ice machine, and its accessory equipment, for example cold room, crane, ice crushing machine and so on. Machine's output design can start from single small ice machine for produce 1ton ice per day to large scale completely ice making system for produce 50tons ice per day. All components from choosing raw material to processing and finished products, all pass strict inspection, strict quality control, ensure completely ice system with excellent quality. The products are widely applied to different fields, such as food industry, large chain supermarket, retail, aquatic product, chemical industry, water conservancy, power plant, health care, large public project, mine cooling, chemical industry, etc.
Independent research and design is the source of technology to update, our company has owned two patented technologies: flat-plate heat exchange and circulating heat gas for ice dropping. These two patents have greatly improved the stability and safety of our ice making machine and ensure machine prominently energy saving, its energy saving rate is more than 30%.It start new generation of energy saving product. Icesource products have passed ISO9001, ISO14001 and CE certificate. We have been keep tracking service condition of our products, have record for more than 400customers in more than 30countries from Africa, Middle East, Southeast Asia, Australia and South America. It bring us rich experience and and valuable data to improve our products for different environment condition.
Icesource take "painstakingly created high quality products and wholehearted service" as company tenet, keep developing and perfecting our sales system and after-sale service system, Combined with own advantages, continuous learning foreign mature sales experience and cater to domestic and international market trends and demands. Company adhere to the principle of equal emphasis on social and economic benefits. We will try our best offer customer timely and comprehensive service and support.
Icesource adhere“people oriented, technology first"corporate ideas, view customer's practical needs, improving people life quality and environment for human being existing as a duty. Gathering strong technology, professional talent, and advanced facilities, continuously improve making ice technology, to be leader of ice machine industry.

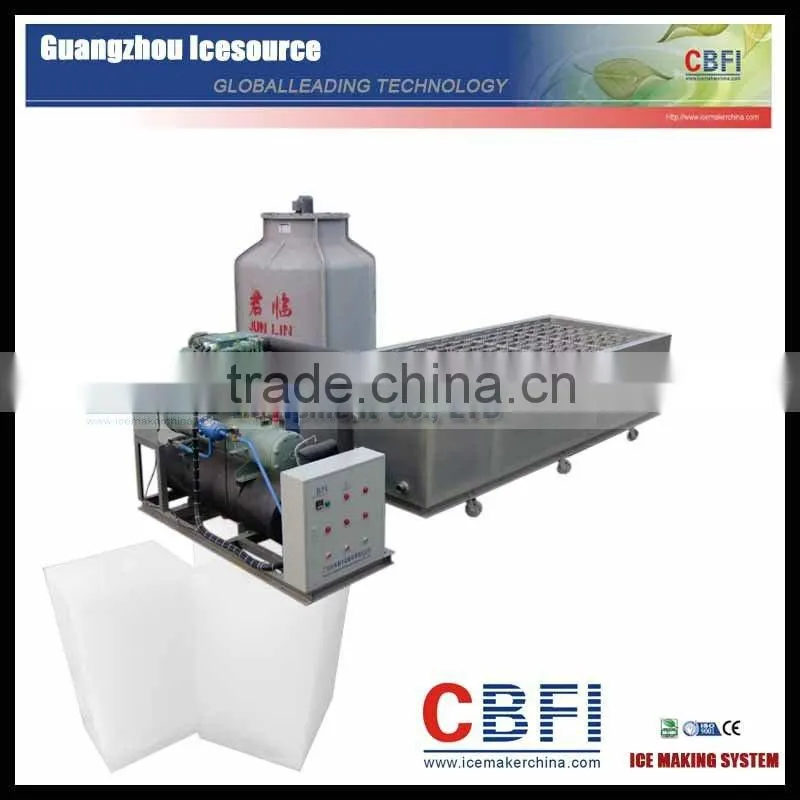

Refrigeration unit

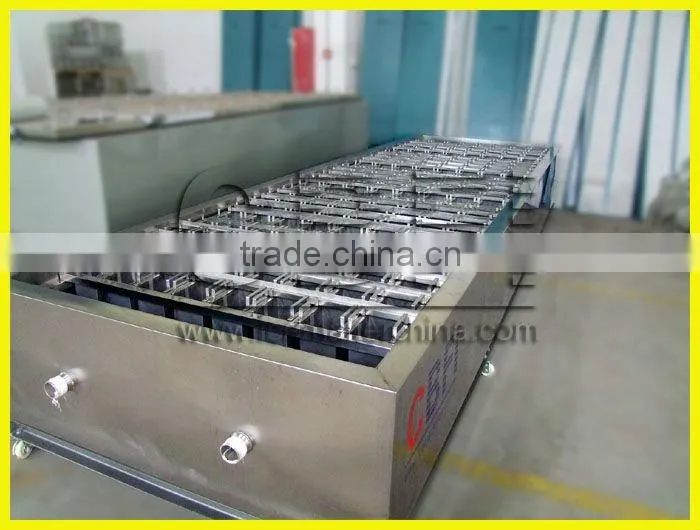

Stainless steel brine tank

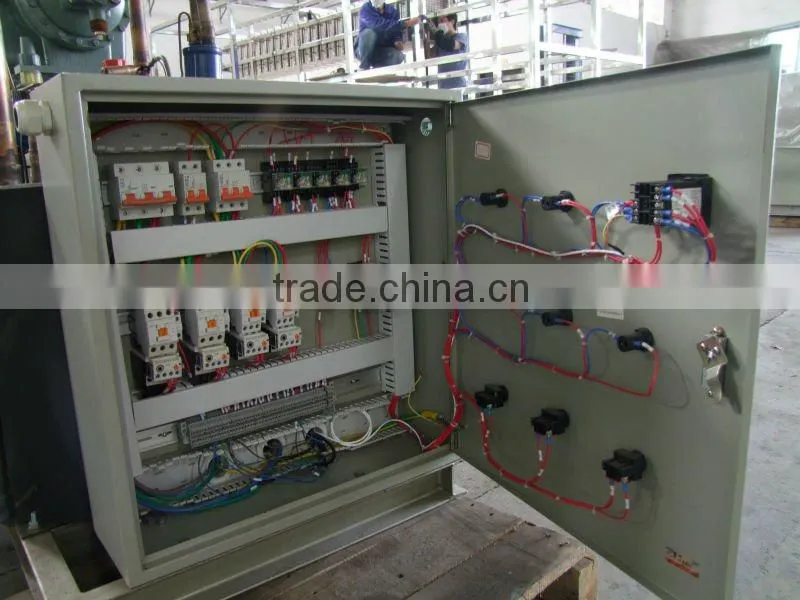

control box of ice block machine
Brine tank of ice block machine

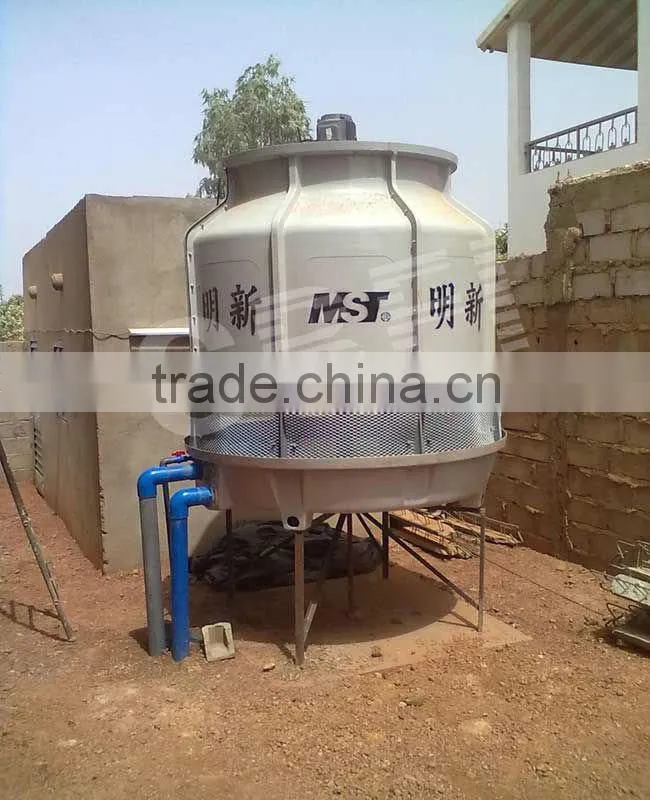

Cooling tower for ice block machine

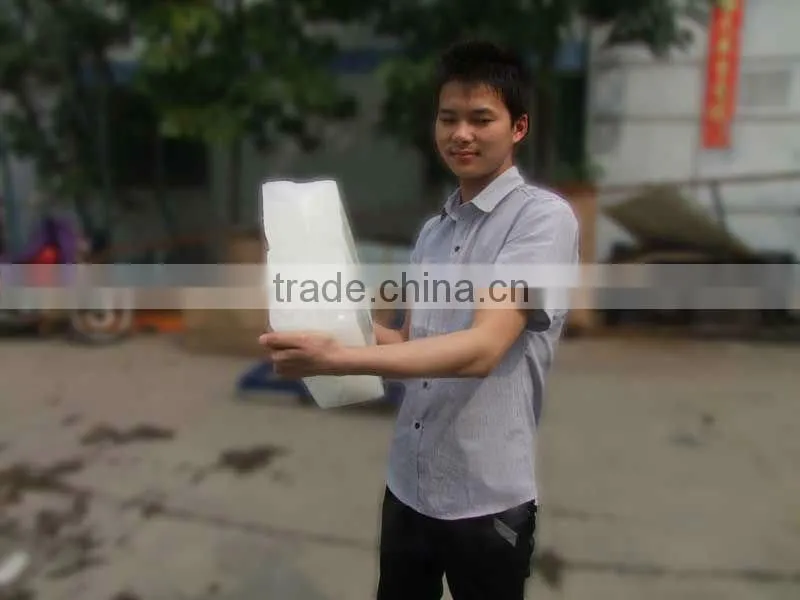

10kg ice block per piece
Crushed ice with ice crusher
