Specifications
Block Ice Maker1.Block ice is widely used in meat, fruits and vegetables fresh keeping
2.Daily capacity:1ton to100tons
Large block ice machine is a highly efficient refrigeration plant, which mainly aims at the area such as Africa, Middle East and Oceania where has a big demand for ice. Large block ice machine adopts coil tube evaporator, which has a large heat exchange area and high performance of heat transfer.The brine is circulated by a agitator to cool down the water temperature to -12~-15 °C, then the water will form into ice gradually. It has the following features:
1.Ice making tank adopts 80mm thickness polyurethane insulation material and has good stickiness and effect in heat insulation.
2. As for coil tube evaporator type block ice machine, we use big power water agitator to replace the common water pumps. It faster the brine flowing so that shorten the ice freezing time and improve the refrigeration effect of the whole machine.
3. The linear design for the ice plant, such as put the refrigeration unit, ice making tank, crane system, ice pouring shelf, water filling box and cold room in a line, will maximize the investment on manpower and reduce the whole cost.
Brine system block ice machine structure and application:
(1)Brine system block ice machine structure: refrigeration unit, brine tank (ice making tank), cooling tower/ air cooling fan, and necessary components. We will prepare the three in unit, you need to connect the power, water pipes for the cooling system and refrigeration pipes from coil tube evaporator to compressor suction line. Pleas see the picture in the attachment.
(2)Daily production: 1 ton per day to 100 tons per day. And if the capacity is more than 20 tons per day, it cannot ship the whole machine in container. So we do the local installation and construction in your place.
(3)Weight of block 20kg,25kg,30kg,50kg,100kg, also can be done as your requirement.
(4)Power supply: 380V/50HZ/3P, Refrigerant R22/R404a.
(5)Application: the block ice is used to reduce temperature, especially in Africa country where the power is not stable and the climate temperature is high. When the power is off, people use the block ice to cooling the drinking and beverage. And block ice is also used to keep fish fresh or crushed into small pieces to fresh vegetable and fruit.

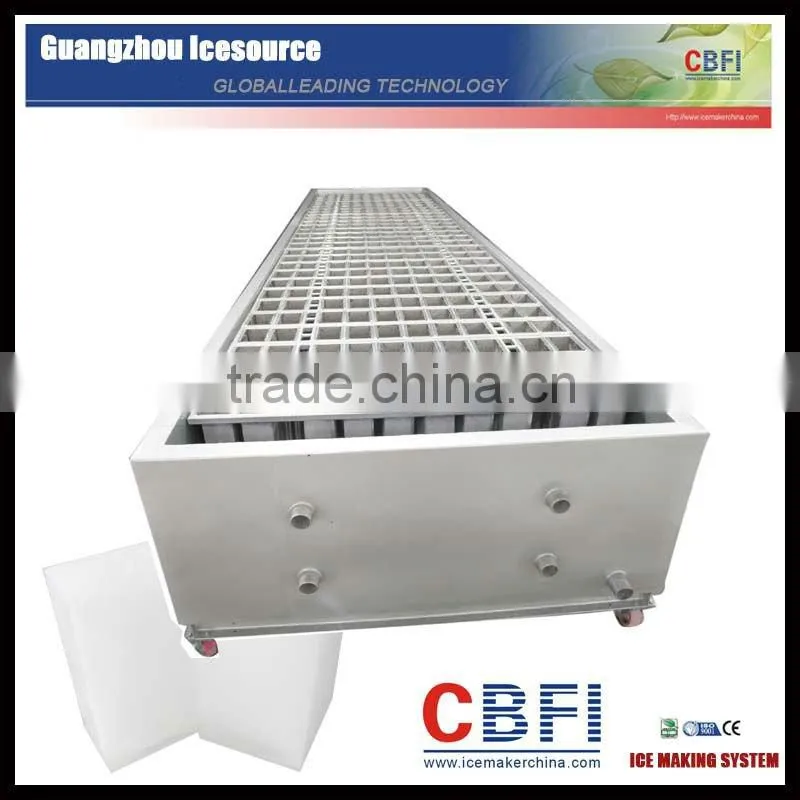

12tons/24hours block ice machine-- brine tank
12tons/24hours block ice machine--refrigeration unit
12tons/24hours block ice machine-- coil tube evaporator
12tons/24hours block ice machine-- SUS304 ice can

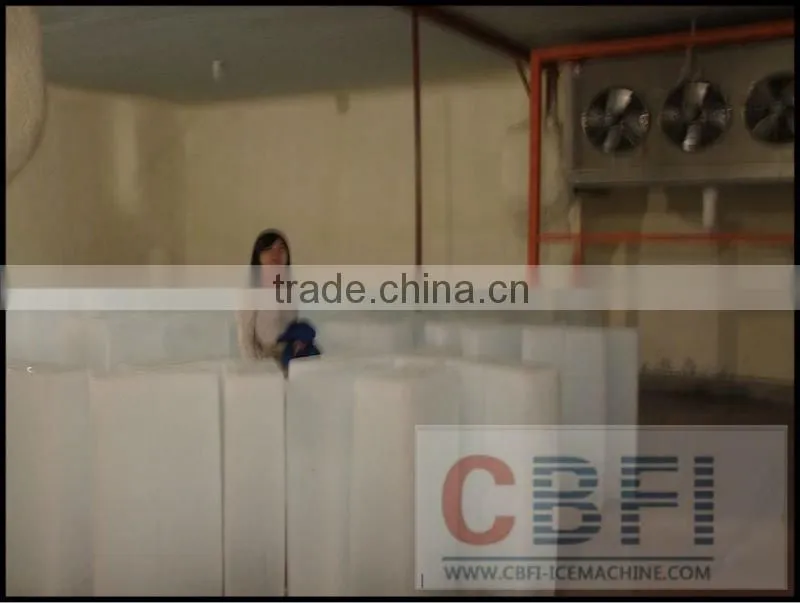

block ice

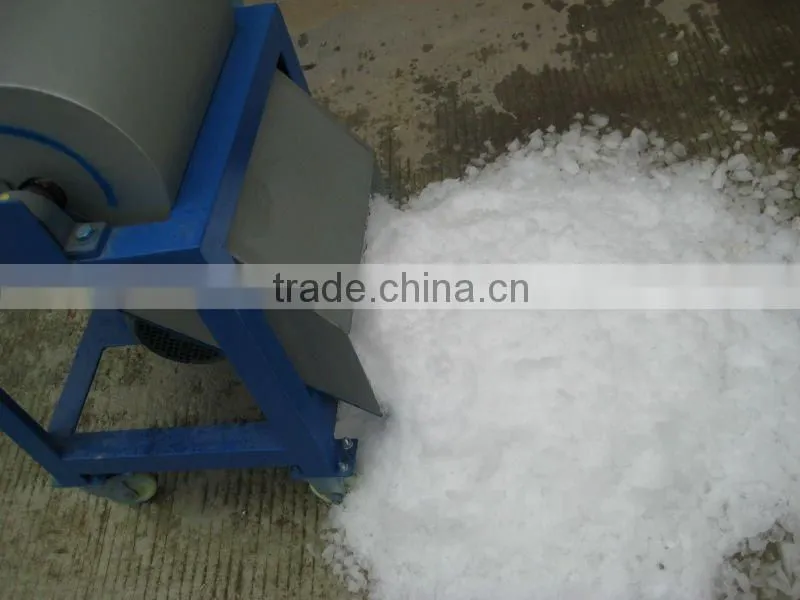

ice crusher to cut the block ice into small pieces

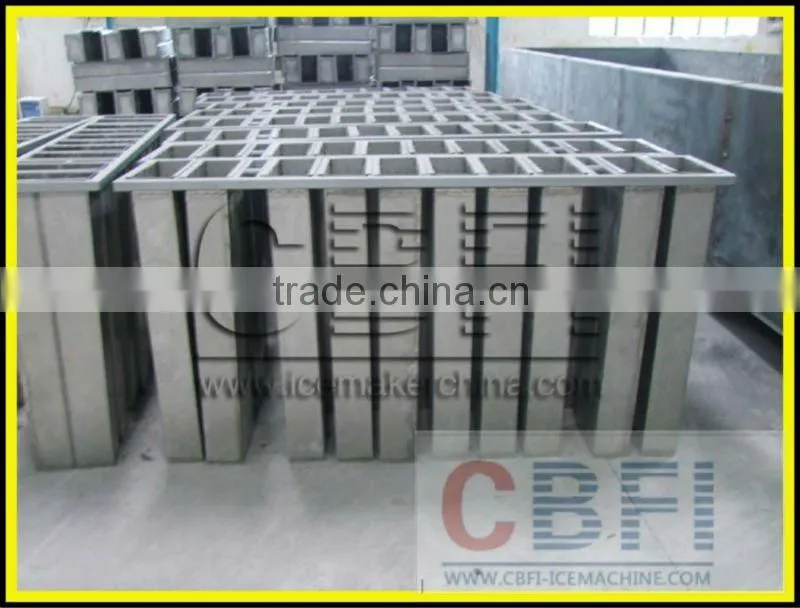

ice can frames with ice cans
