Specifications
Hot selling 10/100M poe network switch
1.Factory
2.ODM/OEM
3.Fast delivery
4.RoHS,FCC,CE
best selling POE switch 10/100M poe adapter

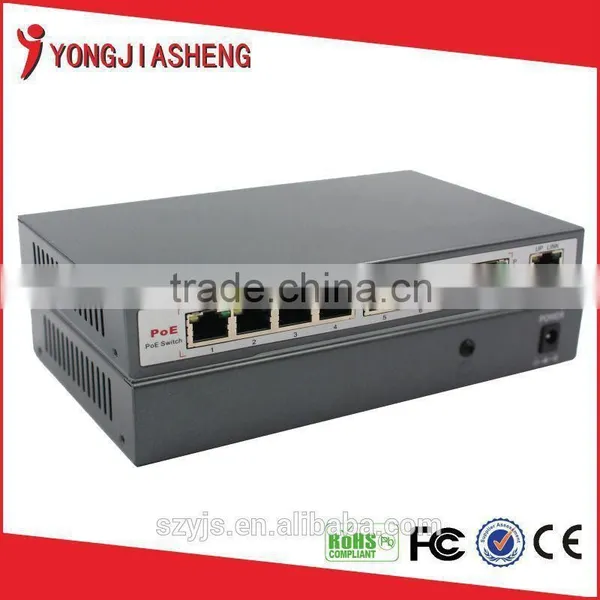

Product:POE-2508
Type:9-PORT 10/100M SWITCH WITH 8-PORT POE,IEEE 802.3af,PoE Power Output:15.4Watts,PoE Budget:120Watts
Power Pin Assignment:Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
Specification
- IEEE 802.3af power on up to 8 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 10/100 Mbps Ports with AutoUplink
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 105W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the PoE Switch POE31008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
Product |
9-PORT 10/100 SWITCH WITH 8-PORT POE |
Type |
POE31008P |
Network Ports |
9 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
Power Pin Assignment |
Data provided over pairs over 1/2and 3/6 ,Power over |
PoE Distance |
100m |
Transmission Method |
Store-And-Forward |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
|
Performance Specifications |
Bandwidth:1.6 Gbps Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission Buffer memory:96 KB embedded memory per unit Address database size:1,000 media access control (MAC) addresses per system Addressing:48-bit MAC address Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) Acoustic Noise: 0 dB |
Network Protocol and Standards |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af |
Status LEDs |
System: Power, PoE Maximum Power Per Port: Link, Activity, Speed, PoE Active, PoE Fault |
Power Supply |
Total Power Consumption: 120 W maximum PoE Watt budget: 110W IEEE802.3af Power Consumption: 110W maximum (Ports 1 – 8) 48VDC, 2.5A power output; plug is localized to country of sale |
Physical Specifications |
Dimensions (H x W x D):190 x 103 x28mm |
Environmental Specifications |
Operating temperature: 0 to 55°C Storage temperature: -20 to 75°C Operating humidity: 90% maximum relative humidity, non-condensing Storage humidity: 95% maximum relative humidity, non-condensing Operating altitude: 10,000 ft (3,000 m) maximum Storage altitude: 10,000 ft (3,000 m) maximum |
Electromagnetic Emissions |
CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
Safety |
CE Mark ,commercial CE/LVD EN60950 |
Shenzhen Yongjiasheng Technology Co.,Ltd. is a direct supplier of security cameras (CCTV, network IP, and AHD), video surveillance systems, and CCTV equipment (Closed Circuit Television) for home, business and government. In addition to CCTV cameras and systems, we also manufacture network IP cameras, AHD cameras, and hundreds of video surveillance accessories. Surveillance cameras and DVR systems with remote Internet viewing is our specialty. Most of our surveillance systems include DVR viewer software for Windows and Mac PCs, as well as mobile surveillance viewer apps for iPhone, iPad, and Android devices. We offer many complete systems that are pre-configured and easy to install.
Our security cameras provides the best customer service & technical support in the industry. We also strive to provide the most competitive pricing possible on surveillance systems, security cameras, surveillance equipment, and DVR cards.
If you are interested in our product,pls feel free to contact us, we are glad to establish bussiness relations with you.
Website: / (Chinese Website)
https://img13.fr-trading.com/ (English Website)
Email : sales8 @szyjskj.com
Skype : sales8 @szyjskj.com
Trade Manager: cn1512083282
Mobile : 0086- 137 6080 2995
Tel : 0086-0755- 88606011
Whatsapp: +8613760802995
Sales Representative: Jack Wong
