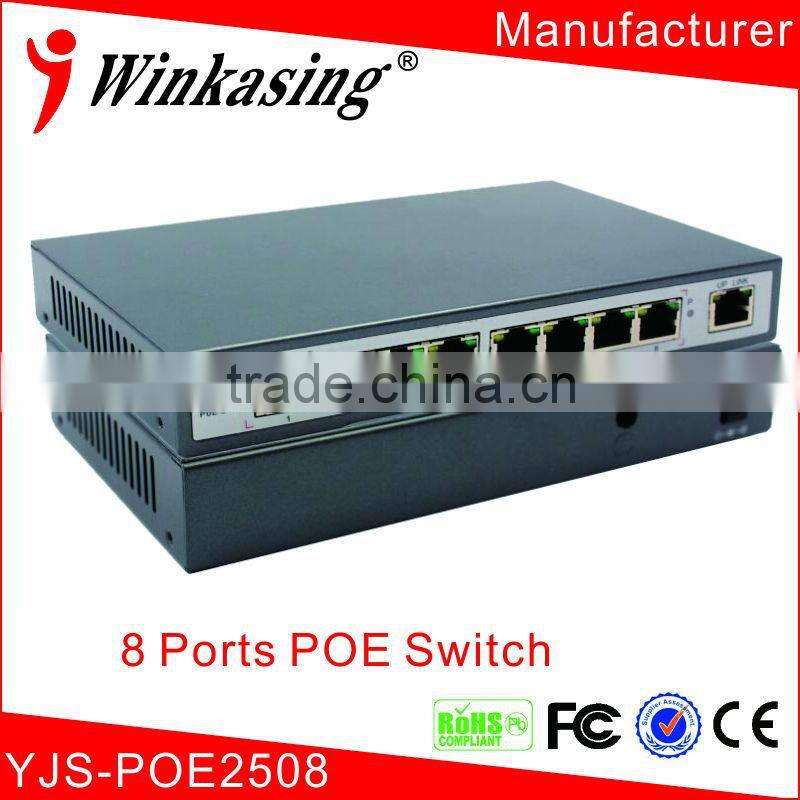

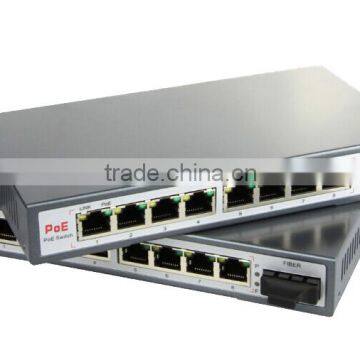

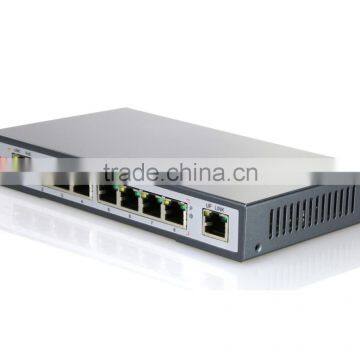

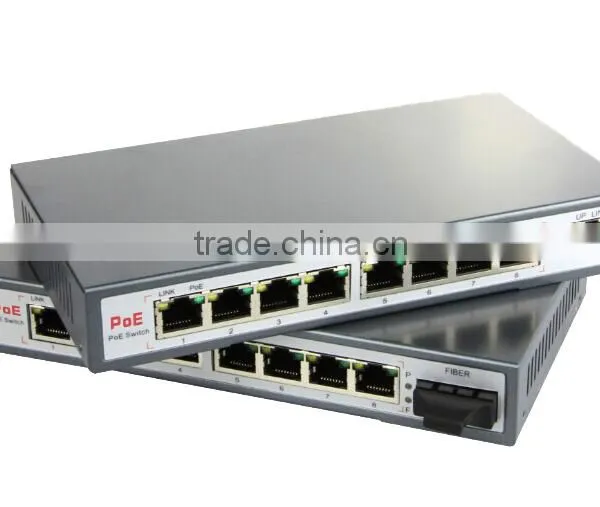

8+1 Port POE Fast Ethernet Fiber Switch Power Supply Security CCTV Camera
Product features:
IEEE 802.3af power on up to 8 ports

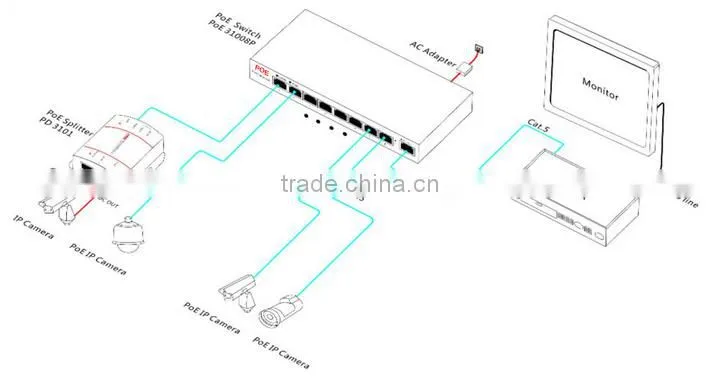

Supply power to wireless access points and surveillance cameras over Cat-5 cabling
9 10/100 Mbps Ports with AutoUplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 130W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch YJS-POE2508 with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Specifications:
| Product | 8 PORT 10/100 SWITCH WITH 8 PORT POE |
| Type | POE31008P |
| Network Ports | 8 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Power Pin Assignment | Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-) |
| PoE Distance | 100m |
| Transmission Method | Store-And-Forward |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| Performance Specifications | Bandwidth:1.6 Gbps |
| Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
| Buffer memory:8M embedded memory per unit | |
| Address database size:8,000 media access control (MAC) addresses per system | |
| Addressing:48-bit MAC address | |
| Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) | |
| Acoustic Noise: 0 dB | |
| Network Protocol and Standards | IEEE 802.3i 10BASET |
| IEEE 802.3u 100BASETX | |
| IEEE 802.3x Flow Control | |
| IEEE 802.1af DTE Power via MDI | |
| IEEE 802.3af | |
| Status LEDs | System: Power, PoE Maximum Power |
| Per Port: Link, Activity, Speed, PoE Active, PoE Fault | |
| Power Supply | Total Power Consumption: 130W maximum |
| PoE Watt budget: 120W | |
| IEEE802.3af Power Consumption: 120W maximum (Ports 1 – 16) | |
| AC110~265V 50Hz | |
| Physical Specifications | Dimensions (H x W x D):44 x315 x 440mm |
| Weight:2.25kg | |
| Environmental Specifications | Operating temperature: -20 to 55°C |
| Storage temperature: -20 to 75°C | |
| Operating humidity: 90% maximum relative humidity, non-condensing | |
| Storage humidity: 95% maximum relative humidity, non-condensing | |
| Operating altitude: 10,000 ft (3,000 m) maximum | |
| Storage altitude: 10,000 ft (3,000 m) maximum | |
| Electromagnetic Emissions | CE mark, commercial |
| FCC Part 15 Class B | |
| VCCI Class B | |
| EN 55022 (CISPR 22), Class B | |
| Safety | CE Mark ,commercial |
| CE/LVD EN60950 | |
| Warranty | 1 years for PoE Switch |
| 2 years for power supply | |

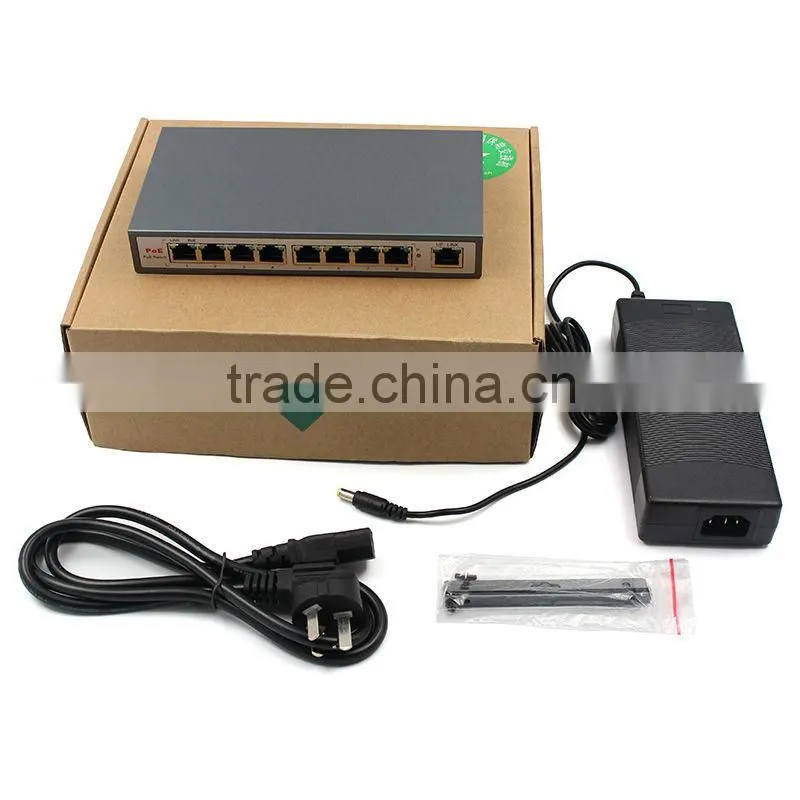

| Package Contents | 8 PORT 10/100 SWITCH WITH 8 PORT POE |
| AC power line | |
| Installation guide | |
| Warranty/Support Information card |
