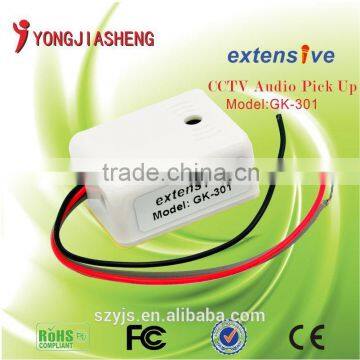

Adjustable high sensitivity cctv microphone 100 Square Meters of Range GK-301
| Specification | |
| Input | |
| Type of microphone | Electret |
| Nominal voltage | DC9-12V |
| Operating current | 25mA |
| Connection |
Audio female RCA jack Female DC power plug |
| Features | |
| Range | 262ft (80m) |
| Tranmission distance | 3281 (1000m) |
| Output signal | 2.5Vpp / -25db |
| Response frequency | 100-5500HZ |
| Output impedance | 600Ω |
| Sensitivity | -60dB |
| Signal to noise ration (SNR) |
60dB (1m 40dB sound source) 50dB (10m 40dB sound source) |
| Direction | Omnidirectional |
| Max SPL (sound pressure level) | 80dB SPL (1KHz, THD 1%) |
| Dynamic range | 35dB (1KHz at max dB SPL) |
| Physical Appearance | |
| Material | Plastic and PVC |
| Color | White |
| Product Dimensions | D:28.98mm L:60mm |
| Product Weight | 29.3g/11.1g |
| Additional Information | |
| Warranty | 1 year |
| Standards/Certifications | CE/FCC/RoHS |
| Operating Temperature | -4°F-104°F (-20°C-40°C) |
| Storage Temperature | -22°F-122°F (-30°C-50°C) |
| Relative Humidity | 95% or less (non-condensing) |
| Package dimensions | 98*98*28mm |
| Package weight | 47.4g/29.2g |
| 1.Particular and small design | |
| 2.High sensitivity and High fidelity | |
| 3.Low noise processing chips | |
| 4.Built in micro processing chip and automatic gain control(AGC)circuit | |
| 5.Long transmitter distance | |
| 6.Meeting DCC,CE standard and specifications | |
1. Item will be shipped within 1-3 business days.
2. Delivery Time:
Via Express: Generally 3-10 working days.
Via Air Mail: Generally 10-30 working days.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
5. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
6.The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Customer satisfaction is our final goal!
1. We guarantee that all our items are "as stated" in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
2. Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
3. If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
Shenzhen Yongjiasheng Technologies Co., Ltd. is a manufacturer of security products with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used
in security industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic
and social needs.
We welcome new and old customers to contact us for future business relationships and mutual success!
1.Q: Are you a factory or trading company?
A: We are manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen Bao’an airport directly, and we
will pick you up. Welcome to visit our factory.
3.Q: How can I get some samples?
A: We are honored to offer you samples, pls contact our staff and leave detailed contact information, we promise to keep your information confidential.
4.Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
5.Q:What can you do?
A:1.All of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2.Support imprint your logo on products and let your logo shine anywhere. 3.OEM/ODM orders are warmly welcomed!
6.Q:Warranty and return:
A:1.All products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
CCTV video baluns, also known as UTP baluns, allow traditional coax cable to be replaced by category 5 and other forms of twisted pair wire in CCTV video camera & surveillance installations. Video baluns allow installers to use more cost effective structured cabling techniques to wire security cameras. By using video baluns, UTP wire such as cat-5 can be run over longer distances easier than coax cable and for less money. Active balun transceivers enable UTP wires for cameras to be run distances up to 5,000 feet. If you are new to the idea of using baluns for video, check out our video balun installation videos. We believes that we supply the best UTP video baluns on the market.
