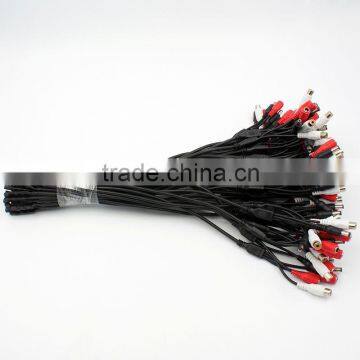

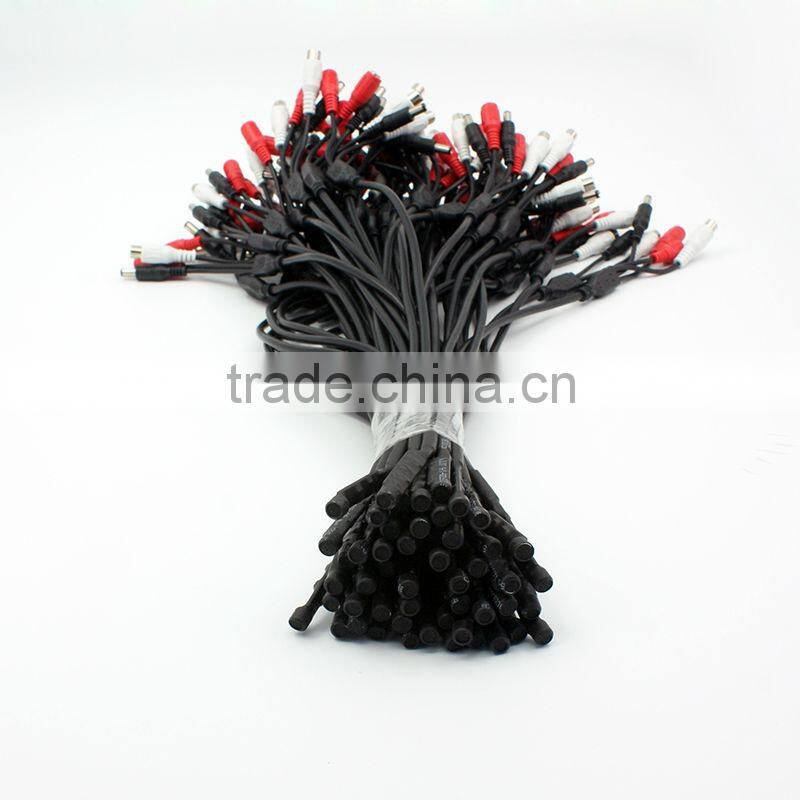

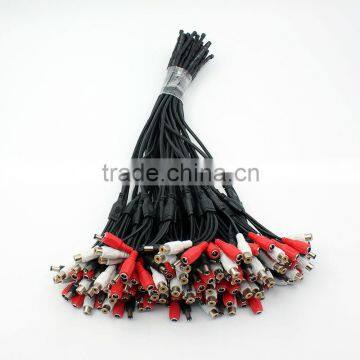

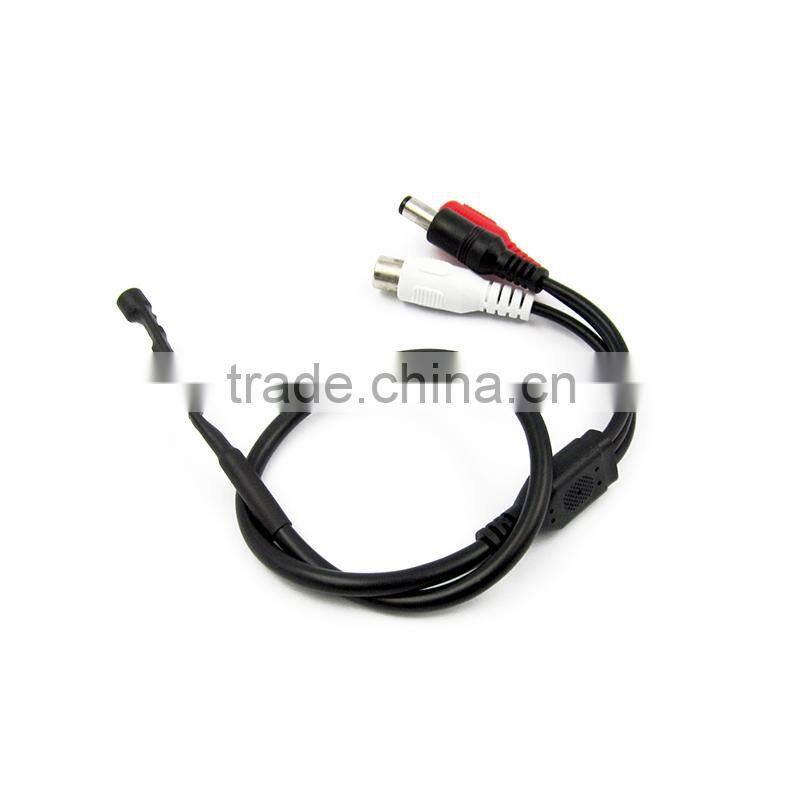

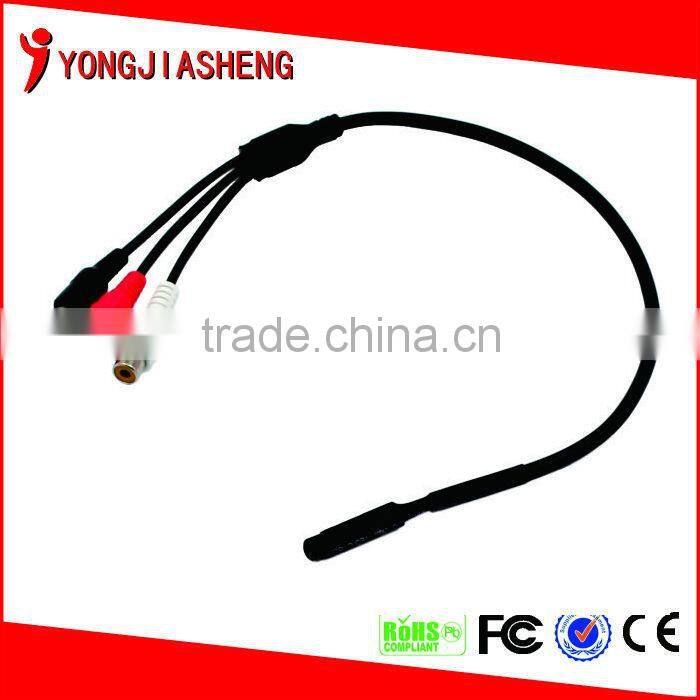

Three connectors Hidden cctv microphone for cctv system GK-601AP
| Specification | Specification | Specification | |||
| Input | Input | Input | |||
| Type of microphone | Electret | ||||
| Nominal voltage:DC9-12V | Nominal voltage:DC9-12V | Nominal voltage:DC9-12V | |||
| Operating current:25mA | Operating current:25mA | Operating current:25mA | |||
| Connection | Audio female RCA jack Female DC power plug | ||||
| Output(601AP) | |||||
| Connection |
Male DC power plug |
||||
| Features | |||||
| Range | 262ft (80m) | ||||
| Tranmission distance | 3281 (1000m) | ||||
| Output signal | 2.5Vpp / -25db | ||||
| Response frequency | 100-5500HZ | ||||
| Output impedance | 600Ω | ||||
| Sensitivity | -60dB | ||||
| Signal to noise ration (SNR) |
60dB (1m 40dB sound source) 50dB (10m 40dB sound source) |
||||
| Direction | Omnidirectional | ||||
| Max SPL (sound pressure level) | 80dB SPL (1KHz, THD 1%) | ||||
| Dynamic range | 35dB (1KHz at max dB SPL) | ||||
| Physical Appearance | |||||
| Material | Plastic and PVC | ||||
| Color | Black | ||||
| Product Weight | 20.2g/2g/7.6g | ||||
| Additional Information | |||||
| Warranty | 1 year | ||||
| Standards/Certifications | CE/FCC/RoHS | ||||
| Operating Temperature | -4°F-104°F (-20°C-40°C) | ||||
| Storage Temperature | -22°F-122°F (-30°C-50°C) | ||||
| Relative Humidity | 95% or less (non-condensing) | ||||
| Package weight | 20.5g/2.3g/7.9g | ||||
| 1.Simple design | |||||
| 2.Wide frequency ,broad range,rich and clear sound | |||||
| 3.Built in DSP(Digital signal processor)and automatic gain control(AGC)circuit | |||||
| 4.With dynamic noise reduction function | |||||
