High frequency YK series Circula Vibrating Screen machine with ISO 9001circular vibrating screen
Hysan Road Bridge Mechanical
Product Description
Circular vibrating screen is a high-efficiency type that can sand vibrate with multi-decks. This series of circular vibrating screen are with high screening efficiency and large capacity, widely used in quarry screening aggregate, also available in coal, mining, mineral processing, building materials, electricity and chemical industries for product grading. It has the advantages of stable structure, powerful vibration, working in a high-efficiency speed, lower noise, and solid, lower repairing fee etc. Adjustable amplitude, long material screening line, multi-layer screening, clear separating effect and high efficiency is another advantage for YA series of vibrating screen.
Excellent Feature of our circular vibrating screen :
1. Low energy consumption, low noise,
2. High screening accuracy, large capacity, simple structure.
3. Fully enclosed structure, good sealing,automatic discharge
4. Screen body parts are good, strong and reliable.
5. The design of the machine is dedicated and easy to assemble, one person can operate the machine.
6. High capacity and screening efficiency
7. Advance designed and high durability screen deck
8.Screen plate can be replaced
9. Rigid in structure of screen box, no vibration cracking
Product Technical Data
Model |
Screen Deck |
Deck Size(m2) |
Mesh Size |
Screen Specification (mm) |
Vibration Frequency (r/min) |
Double Amplitude (mm) |
Capacity(T/h) |
Motor Power(Kw) |
2YK1860 |
2 |
10.8 |
5-80 |
1800*6000 |
740 |
8 |
50-280 |
18.5 |
3YK1860 |
3 |
10.8 |
5-80 |
1800*6000 |
740 |
8 |
50-300 |
18.5 |
4YK1860 |
4 |
10.8 |
5-100 |
1800*6000 |
740 |
8 |
80-320 |
22 |
2YK2160 |
2 |
12.8 |
5-80 |
2100*6000 |
740 |
8 |
100-330 |
30 |
3YK2160 |
3 |
12.8 |
5-100 |
2100*6000 |
740 |
8 |
100-380 |
30 |
4YK2160 |
4 |
12.8 |
5-150 |
2100*6000 |
740 |
8 |
120-430 |
37 |
2YK2270 |
2 |
15.4 |
5-150 |
2200*7000 |
740 |
8 |
170-500 |
37 |
3YK2270 |
3 |
15.4 |
5-150 |
2200*7000 |
740 |
8 |
170-500 |
45 |
2YK2460 |
2 |
14.4 |
5-150 |
2400*6000 |
740 |
8 |
100-380 |
37 |
3YK2460 |
3 |
14.4 |
5-150 |
2400*6000 |
740 |
8 |
160-450 |
45 |
4YK2460 |
4 |
14.4 |
5-150 |
2400*6000 |
740 |
8 |
160-450 |
45 |

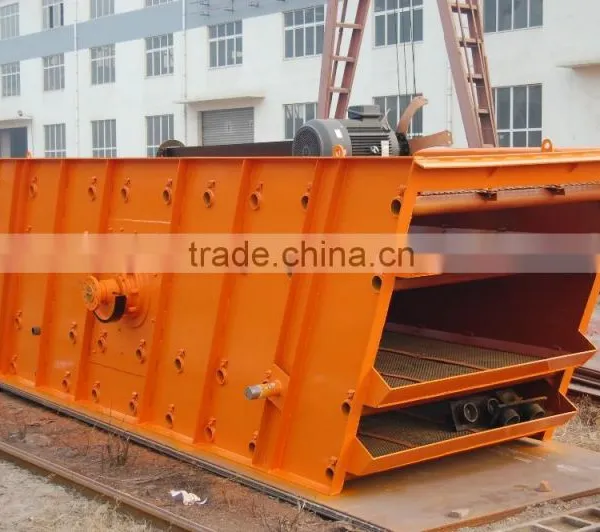

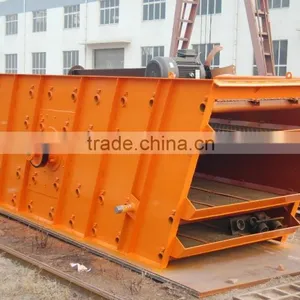

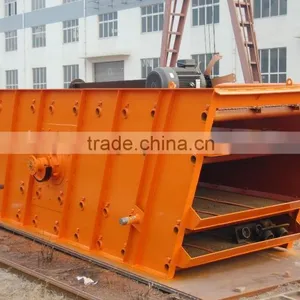

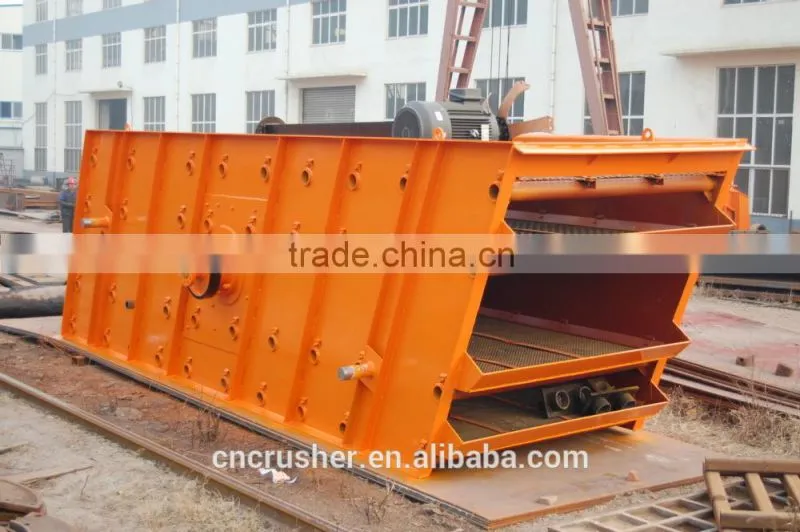

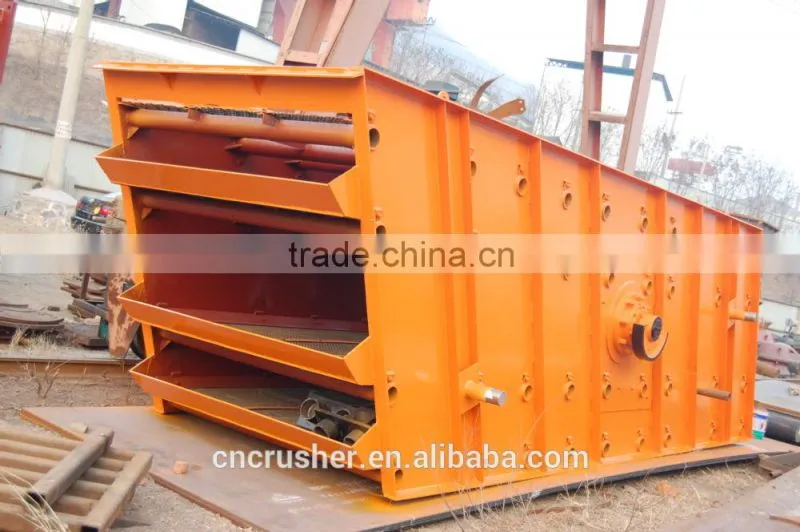

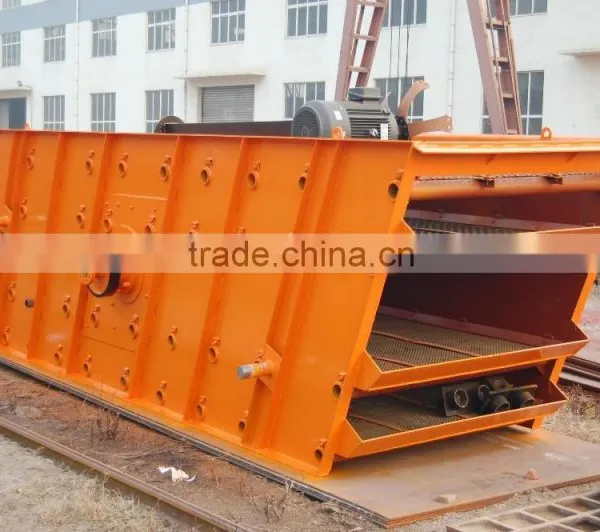

circular vibrating screen Images
circular vibrating screen Working Principle
circular vibrating screen uses regular motor to drive vibrator, and make the screen body contemporary
move along with the direction of vibration force. The materials will make circular movement on the screen to realize sieving. Circular vibrating screen consists of vibration source, screen body, screen mesh, shock absorbing device, base support etc. It has the features of reasonable structure and long durability.
FAQ
♥ How to choose the type of circular vibrating screen ?
Our circular vibrating screen can be designed into single,double and three decks,according to your requirement,we will choose a suitable type for you.
♥ What kind of mesh plate do you have?
We have punching,weaving,polyurethane or bar type mesh plate,you can choose the type you want.
♥ Where should we to put the motor ?
You can put the motor on the screen body's left or right,they are both ok.
♥ Can we have receiving hopper with the circular vibrating screen ?
Our circular vibrating screen is an individual product,but if you want to use the receiving hopper,we can design for you according to your requirement.
