Help CenterDVB-S2 Digital HD Satellite Receiver MPEG4 for PAY-TV System
Related Products
-
MPEG4 HD Set Top Boxes DVB-S2 for PAY-TV Satellite ServicesUS$ 19.8 - 25.1MOQ: 1 Piece -
CATV Mstar MSD 5029 H.264 HD STB Cable Receiver,DVB-C MPEG4 STBUS$ 18 - 25MOQ: 500 Pieces
-
CAS HD Digital Cable Receiver DVB-C for Catv Digital Headend Quality ChoiceUS$ 18 - 25.5MOQ: 1 Piece
-
Compatible With Major CA Systems Cable STB Digital MPEG4 HD DVB Receiver, DVB-C HD Quality ChoiceUS$ 17.5 - 26MOQ: 500 Pieces
-
High Definition MPEG4 HD DVB C Receiver, STB DVB C for CAS ConaxUS$ 20.1 - 25.1MOQ: 1 Piece
Set top box:
√ MPEG-4 HD & SD DVB-C/ T (MMDS)
√ MPEG-4 HD & SD DVB-T2
√ MPEG-4 HD & SD DVB-S2
√ MPEG-4 HD DVB-C + T2 Combo
√ MPEG-4 HD DVB-T2 + S2 Combo
√ MPEG-4 HD ISDB-T
Value added-ons Service:
√ CAS Porting Service;
√ Software development in Middleware
Being the strategic partner of some CAS vendors, We have integrated CAS like:
Dexin, NSTV, ABV, Conax, Engima, CryptoGuard, Topreal
√ Our main objective now is for PAY-TV operator market.
√ Our product is compatible with major CA systems and supports advanced security.
For high quality CAS porting service you may need, contact us today.

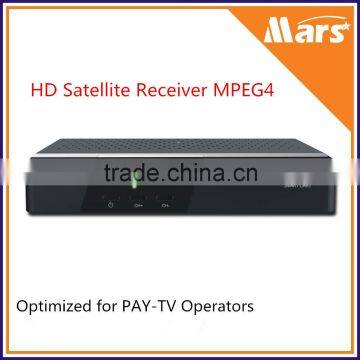

It is an Cost-effective High definition Satellite Receiver DVB-S2. It is compatible with the major CAS systems. By designed for pay-TV satellite service, it has been embedded CAS including NSTV (Novel supertv), Dexin, Conax, Cryptoguard, Enigma, Topreal, ABV and so on.
It provides standard and high definition reception based on MPEG4 (H.264)/MPEG2 and Satellite Receiver DVB S2 standards. With HDMI interface, PVR , OTA software upgrade to ensures high quality contents to an HD-ready TV set.

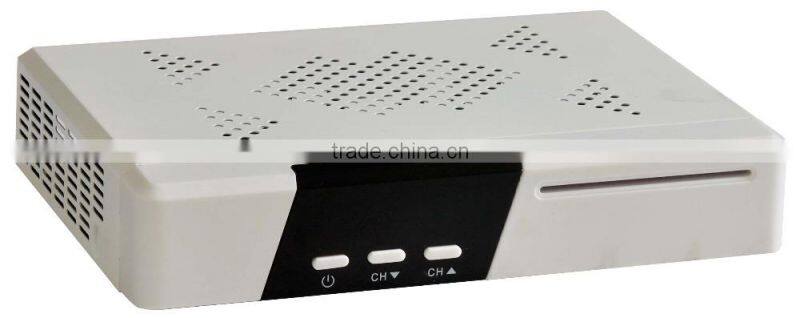

picture of Satellite Receiver
DVB-S2 digital HD Satellite Receiver MPEG4
√ HD DVB-S2 compatible
√ Cost-effective HD Satellite Receiver
√ Main Processor: (Montage M88CS6001)
√ CAS Embedded, optimized for pay-TV Satellite services
√ Embedded in CAS
√ USB, PVR, OTA upgrading
Features of Satellite Receiver
USB 2.0 Host Support (PVR, MP3 Player & Picture Viewer) |
| Recording & Playback with External USB 2.0 Devices |
| Time Shift with External USB 2.0 Devices |
| Recording and Time shift simultaneously |
| 7 Days Electronic Program Guide (EPG) |
| H.264/MPEG-2/MPEG-4/AVS HD & Fully DVB Compliant |
| Favorite Service group |
| Powerful service control by Favorites, Lock, Skip, Move, Rename and Delete |
| Service Sorting by LCN, Service ID, Network ID and Service Name |
| Multi-Language Supported (OSD & Menu) |
| Tele text, Subtitle (VBI & OSD) Support |
| Powerful Edit (Favorite, Lock, Skip, Move, Sort, Delete, Rename) |
| Game ( Othello, Tetris) |
| Proram memorize function when shut down and circuit break |
| Software & Service Database Transfer via USB 2.0 interface and by OTA |
Specification of Satellite Receiver
Tuner & Channel
| Input Connector: | F-type, IEC 169-24, Female |
| Loop through Out: | F-type, IEC 169-24, Male |
| Frequency Range: | 950MHz-2150MHz |
| Demodulation: | QPSK, 8PSK, 16APSK, 32APSK |
| FEC: | 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 |
Transport Stream A/V decoding
| Transport Stream: | MPEG-2 ISO/IEC 13818, ITU-Th.264 |
| Profile Level: | MPEG-2 MP & ML, H.264 Main Profile and High Profile & Leve14.0 |
| Input Rate: | Max. 20Mbit/s |
| Video Resolution: | 4:3 LetterBox 4:3 PanSacn, 4:3 Full Screen, 16:9 |
| Audio Decoding: | MPEG-1, MPEG-2(Layer I & II), MP3, AC3, DD+, AAC-LC, HE-AAC |
| Audio Mode: | Stereo/ Joint Stereo/Mono |
| Sampling Rate: | 16, 22, 05, 24, 32,44,1KHz and 48KHz |
Transport Stream A/V Decoding
| Transport Stream | MPEG-2 ISO/ IEC 13818, ITU-Th H.264 |
| Profile Level | MPEG-2: MP ML, H.264: Main and High profile Level 4.0 |
| Input Rate | Max.20Mbit/s |
| Video Resolution | 4:3 LetterBox, 4:3 PanSacn, 4:3 Full Screen, 16:9 |
| Audio Decoding | MPEG-1, MPEG-2 (Layer I & II), MP3, AC-3,DD+AAC-LC, HE. AAC |
| Audio Mode | Stereo / Joint Stereo/ Mono |
Main System:
| Main Processor: | M88CS6001 (Montage) |
| Memory: | FLASH-ROM 4M/ 8Mbytes | DDR2: 64Mbytes |
Audio / Video & Data In / Out:
| HDMI: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080P |
| RCA: | CVBS Video, Audio L, R Output |
| USB: | USB2.0 Host Support |
Front Panel
| Slot: | 1 Smart Card Slot |
| Buttons: | 3 Buttons (Standby, CH UP / DOWN) |
| Display: | None |
| Indicators: | 1 LED |
Multimedia Format Supported:
| Video: | mpg,mpeg,dat,ts,trp,tp,m2ts,m2t1,vob,mov,rmvb,rm,mkv,avi,flv,3gp |
| Audio: | MP3, OGG, AC3, M4A/AAC, WMA/ASF |
| Photo: | JPG, JPEG, JPE, BMP, PNG |
Power Supply:
| Input Voltage: | DC 12V/1.25A |
| Type: | SMPS |
| Power Consumption: | Max.15W |
| Standby Power: | Max. 1W |
| Protection: | Separate Internal Fuse & Lighting Protection |
Physical Specification:
| Size (W x D x H): | 168mm * 116mm *36mm |
| Operating Temp.: | 0℃- + 45℃ |
| Storage Temp.: | -40℃- - + 65℃ |
Similiar Products
Customized your own HD and SD DVB ( DVB-C, DVB-T2, DVB-S2 ) from our strong R & D team
With a team of experienced software engineers on staff, we are constantly researching and providing Receiver DVB-C, DVB-T2, DVB-S2 the lastest and better
We are an R & D-oriented supplier, specializing in DVB (HD & SD DVB-C, DVB-T2/T, DVB-S2) Research & Development, Production.
Strong R & D capability is the key reason behind our success. All software & hardware are designed by our self high-quality technical team that why we're able to make product customization according to customer's needs, as well as continuously supplying technical supports & services to customers.
Strong R & D Strength behind Your Orders:
Our R & D technician develop our own DVB in-house. The software development team can handle almost every aspect of DVB software stack starting from bottom most layers to top most layers, allowing us to smoothly integrate just what features you require.
Our main objective now is for PAY-TV operator. Our DVB boxes (DVB-C/T2/S2) have made their way into hundreds thousand of homes throughout Europe, the Americas, Asia, and Africa through our client base of over 90 operators in 25 countries and regions. To support the volume requirements of these buyers, we produce up to 100,000 DVB receivers monthly.
Service:
√ We provide 1 year warranty of products and shipment with 1% spare parts.
√ During the warranty period, repair or replace the faulty boxes and software maintains
and upgrades for free. We can discuss for any additional requirements from customers.
√ After the warranty, we only charge material cost fee for hardware and spares. Fixing
minor bugs of software is free. The charges will be negotiated for large changes in design.
Buy from China’s Satellite Receiver expert, contact us today!
