Self-Propelled Hydraulic Elevating Platform
Self-Propelled Hydraulic Elevating Platform can automatically fast and slow walk and turn in different work conditions,which do not need artificial traction, do not need external power supply, and move Flexibly and conveniently. It make aerial work more convenient and efficient.
Features:
1. SJY series self-propelled lift platform is two-phase of thress-phase. The control has two ways:manual and electric.
2.The control button is put on the ground pane but they can be changed onto the platform or controlled by remote controller .
3. At the moment , manual pump is equipped for the use in case power is cut off .
4. It is convenient and flexibility to aerial work . Mainly used for factory maintaining or lamp installation , fixing or house decorating or other aerial work .
Elevator configuration:
Lifting height : 4m , 6m , 8m , 10m , 12m ,14 m ,16m
Load weight : 300kg , 500kg , 800kg , 1000kg
Installation guide: Installation guide fixed
Table-board Material: With 3mm pattern steel plate.
The Pumping Station: anshan pumping station (Made in Liaoning Anshan Pumping Station)
Oil Tank: high precision wearable hydraulic oil tank with double seals
Hydraulic Pipe: high pressure pipe with double expanded metal inside.
Hydraulic Oil: DTE 32 Hydraulic
Power driven : the usual power supply is connection variety of 220v ,240v , 380v
Supporting power: 1.5kw , 2.2kw , 3kw , 4kw
Technical specifications:
| Models | SJPTZX 065C | SJPTZX 08C | SJPTZX 08B | SJPTZX 10B | SJPTZX 08A | SJPTZX 10A | SJPTZX 12A | SJPTZX 14A |
| Working height maximum m( A) | 6.5 | 7.8 | 8 | 10 | 8 | 10 | 11.75 | 13.75 |
| Platform height maximum m (B) | 4.5 | 5.8 | 6 | 8 | 6 | 8 | 9.75 | 11.75 |
| Level extensions maximum m (G) | 0.9 | 0.9 | 0.91 | 0.91 | 0.91 | |||
| Lift capacity Kg | 270 | 230 | 350 | 230 | 500 | 450 | 320 | 320 |
| Lift capacity— Kg | 110 | 110 | 120 | 120 | 120 | |||
| Platform(L*W) m(D*E) | 1.64X0.75 | 2.25X0.75 | 2.3X1.17 | |||||
| Length*Width-stowed m(J*K) | 1.85X0.75 | 2.42X0.8 | 2.47X1.18 | |||||
| Platform height stowed m(H1) | 1.88 2.03(CE) | 1.98 2.13(CE) | 2.2 | 2.3 | 2.03 | 2.13 | 2.3 | 2.57 |
| Height-stowed: platform folded m | 1.88 1.68(CE) | 1.98 1.78(CE) | 1.73 | 1.86 | 1.4 | 1.55 | 1.82 | 2.1 |
| Wheelbase m(F) | 1.32 | 1.32 | 1.85 | 1.85 | 1.85 | |||
| Hydraulic system capacity L | 15 | 15 | 15 | 15 | 20 | 20 | 25 | 25 |
| Gradeability -stowed | 30% | 30% | 30% | 30% | 25% | 25% | ||
| Ground clearance—center m | 0.06 | 0.1 | 0.1 | |||||
| —with pothole guards deployed m | 0.02 | 0.019 | 0.019 | |||||
| Turning radius—inside m | 0 | 0 | 0 | |||||
| Turning radius—outside m | 1.56 | 2.12 | 2.3 | |||||
| Maximum platform occupancy | 2 | 2 | 3 | 3 | 2 | 2 | ||
| Raise/Lower speed (sec) | 15/16 | 20/24 | 27/29 | 28/30 | 45/35 | 50/35 | 60/45 | 70/55 |
| Drive speed—stowed km/h | 3.4 | 3.4 | 3.5 | |||||
| Drive speed—raised km/h | 0.7 | 0.7 | 0.8 | |||||
| Power source | 24V DC (four 6V 225AH batteries) | |||||||
| Tires—solid non—marking | 12X4.5X8 in | 15X5X11 in | 15X5X11 in | |||||
| Weight (CE)KG | 1235 | 1490 | 1830 | 2010 | 2000 | 2447 | 2810 | 3200 |
| Weight (American -Standard) KG | 1164 | 1225 | 1690 | 2010 | 1804 | 2245 | 2490 | 2910 |

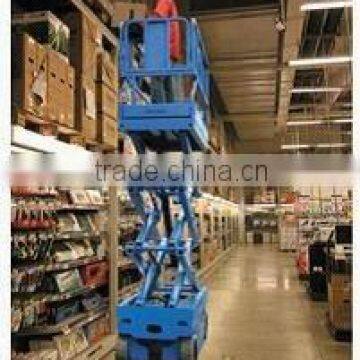

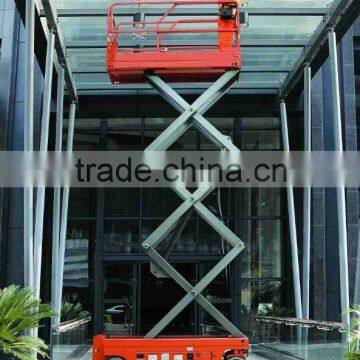

More product picture:
