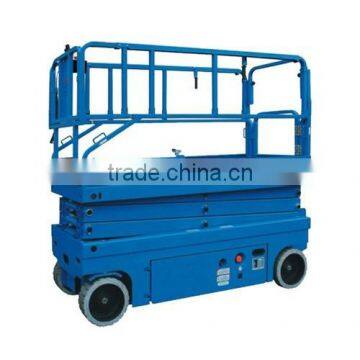

Self-Propelled Hydraulic Elevating Platform
Self-propelled hydraulic elevating platform can walk fast and slow automaticallyand adapt to different work conditions, move flexibly and conveniently without artificial traction, or external power supply. It makes aerial work more convenient and efficient.
Features:
1. SJY series self-propelled lift platform can be manually moved,and its ascending and descending can be powered by two-phase or three-phase supply. There are two controlling methods:manual and electric.
2.The control button is put on the ground pane , but it can be altered onto the platform or controlled by remote controller .
3. As well , manual pump is equipped for use in case power is cut off .
4. It is suitable for aerial works ,such as factory maintaining or lamp installation , house decorating and so on .
Elevator configuration:
Lifting height : 4m , 6m , 8m , 10m , 12m ,14 m ,16m
Load weight : 300kg , 500kg , 800kg , 1000kg
Installation guide: Installation guide fixed
Table-board Material: With 3mm pattern steel plate.
The Pumping Station: anshan pumping station (Made in Liaoning Anshan Pumping Station)
Oil Tank: high precision wearable hydraulic oil tank with double seals
Hydraulic Pipe: high pressure pipe with double expanded metal inside.
Hydraulic Oil: DTE 32 Hydraulic
Power driven : the usual power supply is connection variety of 220v ,240v , 380v
Supporting power: 1.5kw , 2.2kw , 3kw , 4kw
5kw , 2.2kw , 3kw , 4kw
Technical specifications:
| Models | SJPTZX 065C | SJPTZX 08C | SJPTZX 08B | SJPTZX 10B | SJPTZX 08A | SJPTZX 10A | SJPTZX 12A | SJPTZX 14A |
| Working height maximum m( A) | 6.5 | 7.8 | 8 | 10 | 8 | 10 | 11.75 | 13.75 |
| Platform height maximum m (B) | 4.5 | 5.8 | 6 | 8 | 6 | 8 | 9.75 | 11.75 |
| Level extensions maximum m (G) | 0.9 | 0.9 | 0.91 | 0.91 | 0.91 | |||
| Lift capacity Kg | 270 | 230 | 350 | 230 | 500 | 450 | 320 | 320 |
| Lift capacity— Kg | 110 | 110 | 120 | 120 | 120 | |||
| Platform(L*W) m(D*E) | 1.64X0.75 | 2.25X0.75 | 2.3X1.17 | |||||
| Length*Width-stowed m(J*K) | 1.85X0.75 | 2.42X0.8 | 2.47X1.18 | |||||
| Platform height stowed m(H1) | 1.88 2.03(CE) | 1.98 2.13(CE) | 2.2 | 2.3 | 2.03 | 2.13 | 2.3 | 2.57 |
| Height-stowed: platform folded m | 1.88 1.68(CE) | 1.98 1.78(CE) | 1.73 | 1.86 | 1.4 | 1.55 | 1.82 | 2.1 |
| Wheelbase m(F) | 1.32 | 1.32 | 1.85 | 1.85 | 1.85 | |||
| Hydraulic system capacity L | 15 | 15 | 15 | 15 | 20 | 20 | 25 | 25 |
| Gradeability -stowed | 30% | 30% | 30% | 30% | 25% | 25% | ||
| Ground clearance—center m | 0.06 | 0.1 | 0.1 | |||||
| —with pothole guards deployed m | 0.02 | 0.019 | 0.019 | |||||
| Turning radius—inside m | 0 | 0 | 0 | |||||
| Turning radius—outside m | 1.56 | 2.12 | 2.3 | |||||
| Maximum platform occupancy | 2 | 2 | 3 | 3 | 2 | 2 | ||
| Raise/Lower speed (sec) | 15/16 | 20/24 | 27/29 | 28/30 | 45/35 | 50/35 | 60/45 | 70/55 |
| Drive speed—stowed km/h | 3.4 | 3.4 | 3.5 | |||||
| Drive speed—raised km/h | 0.7 | 0.7 | 0.8 | |||||
| Power source | 24V DC (four 6V 225AH batteries) | |||||||
| Tires—solid non—marking | 12X4.5X8 in | 15X5X11 in | 15X5X11 in | |||||
| Weight (CE)KG | 1235 | 1490 | 1830 | 2010 | 2000 | 2447 | 2810 | 3200 |
| Weight (American -Standard) KG | 1164 | 1225 | 1690 | 2010 | 1804 | 2245 | 2490 | 2910 |

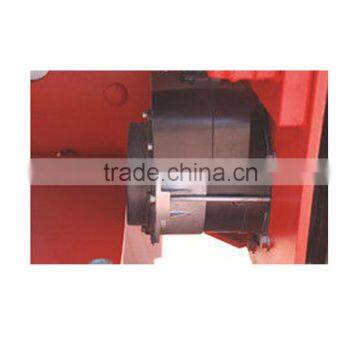

More product picture:
Company Info:
As an professional manufacture, we can make it according to buyer's inquirements . Our Jinding hydraulic machinery company aim to "People is first , consumer is highest , quality is first " principle , we can provide best pice and quality . Relying on four basic parameter ( lift height , load weight , table size , power).
Jinding hydraulic machinery is dedicated in designing & researching, manufacturing, sale of various aerial work platforms(AWP), including hydraulic rail lift machine, mobile elevating platform, self-propelled articulated boom lift, self-propelled telescopic boom lift, self-propelled scissor lift, mobile ramp and fixed hydraulic lifting platform etc. The company has successfully passed three management system certifications of ISO9001, ISO14001 and OHSAS 18001, and obtained the Manufacture License of Special Equipment. We sincerely welcome the customers from the world to our company for visiting and cooperation!
