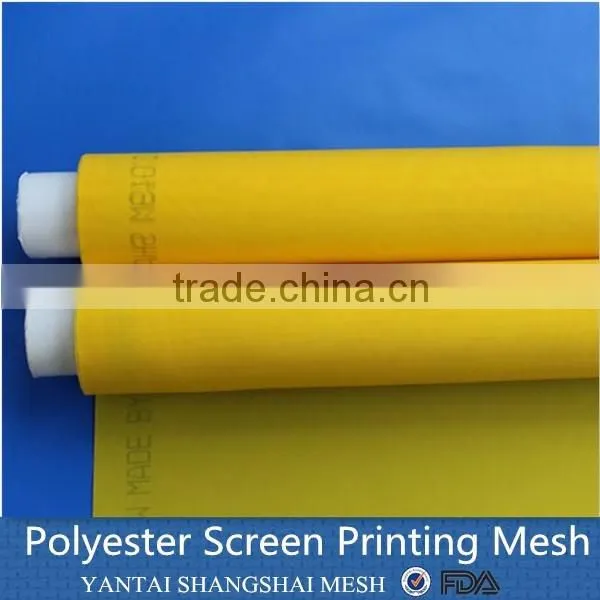

Direct Factory Polyester Printing Mesh

Name: Direct Factory Polyester Printing Mesh
Brand: Shangshai
SKU: 120575667
Availability: InStock

US$ 0.25 - 20 MOQ: 50 Square Meters

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Shangshai

Model Number:

Filter mesh

Yantai Shangshai Wire Mesh Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin or other ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Shangshai

Model Number Filter mesh

Usage Liquid Filter

Type Filter Elements

Material Polyester

Hole Shape Square

Filter Rating 21%-56%

Thickness 85-1000um

Length customized

Width cunstomized

direct factory polyester printing mesh

When the amount is more than $1,000. you can place the order by Alibaba directly.

We do top quality nylon mesh. test every meter and guarantee thread diameter

Polyester mesh:

Material	100% polyester
Weave	Plain
Mesh Count	18-420mesh/inch(7-165T)
Thread Diameter	31-350um
Mesh Opening	25-1100um
Width	1150mm,1270mm,1580mm, 1650mm,2600mm,3200mm,3650mm(Max)

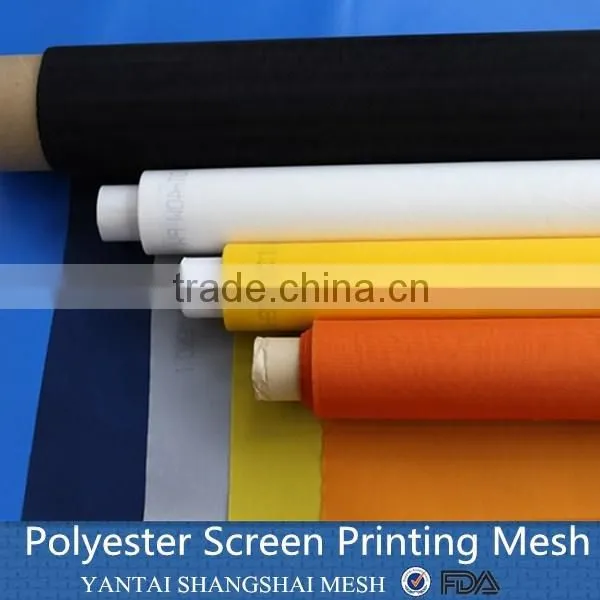

Color	White, Yellow, Orange, Black

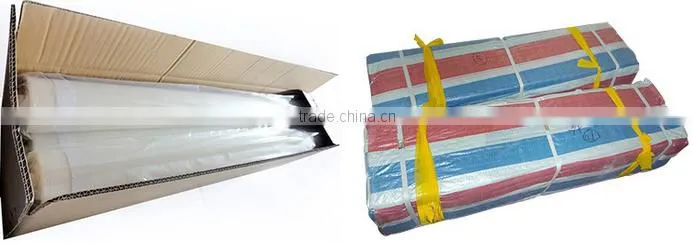

size, shape, packing can be customized

Features:

1.smooth surface, good ink permeability

2.good abrasion resistance

3.high flexibility and easy cleaning

4.long service life

Techincal specifications of nylon mesh:

Spcification(/cm)	Mesh count(mesh/inch)	Thread Dimeter(um)	Mesh opening(um)	Aperture ratio(%)	Thickness(um)	Amount of theoretical ink(cm³/m2)
4	10	550	1931	60	1100	251
5	13	500	1500	56	1000	308
6	15	400	1267	58	840	228
7	18	350	1079	57	640	209
8	20	350	900	52	645	232
9	24	200	911	67	370	92
9	24	250	861	60	460	145
9	24	300	811	53	570	205
10	25	250	750	56	530	148
12	30	300	533	41	495	256
14	35	200	514	52	380	135
16	40	200	425	46	400	155
16	40	250	375	36	420	240
17	42	200	388	44	380	160
18	45	220	366	37	400	207
20	50	200	300	36	375	190
24	60	150	267	41	305	130
28	70	150	207	34	278	150
30	76	120	213	41	230	105
32	80	100	213	46	240	77
36	90	100	178	41	195	86
40	100	100	150	36	192	95
44	110	100	127	31	175	105
48	120	80	128	38	150	73
56	142	60	120	44	110	48
59	150	60	110	42	98	50
64	163	60	96	38	120	55
72	183	50	89	41	90	44
80	203	50	75	36	93	48
88	224	40	74	42	65	34
96	244	40	64	38	76	37
100	254	40	60	36	78	39
104	264	40	56	34	79	40
120	305	40	43	27	80	46
130	330	40	34	20	85	29
140	355	38	33	21	85	28
