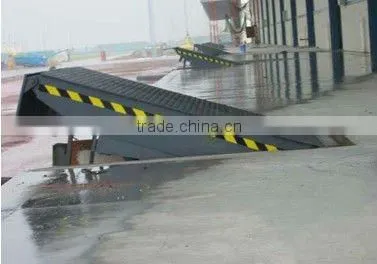

Help CenterDCQG Hydraulic Stationary Ramp Container Loading Ramp
Related Products
-
DCQG Hydraulic Stationary Ramp Loading RampUS$ 1,000 - 10,000MOQ: 1 Set -
Hydraulic Ramp Loading and Unloading EquipmentUS$ 1,000 - 10,000MOQ: 1 Set
-
Container Unloading Equipment Dock LevellerUS$ 1,000 - 8,000MOQ: 1 Set
-
Stationary Yard Ramp Container Loading DockUS$ 1,000 - 10,000MOQ: 1 Set
-
DCQG Stationary Ramp Truck RampsUS$ 1,000 - 10,000MOQ: 1 Set
Specifications
1.Professional technology2.Best price
3.Good appearance
Specifications:
DCQG series of products have beautiful design,compact hydraulic control structure and reliable performance.The hydraulic system that is produced with the imported advanced technology guarantees the product quality.The frame height made of rectangular pipe has strong carrying capacity.The manual hydraulic mechanism is ready for use in case of power cut and maintenance.
About the products:
a).The products are insured for liabilities by Peoples insurance Company of China.
b).The products are equiped with safety and anti-expiosion devices for hydraulic pipelines.
c).The products are equiped with earth leakage protection devices.
d).Elevating mechanism adopts high-strength manganese steel rectangular pipe.
e).Safety device to prevent the elevating platform from overloading.
f).Emergency falling device in case of power out.
Technology parameters:
| Model |
Load weight (T) |
Frame height (MM) |
Goods table height (MM) |
Max operation height (MM) |
Min operation height (MM) |
Table size A XB(M) |
Power (KW) |
| DCQG6-0.55 | 6 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 700 |
| DCQG6-0.60 | 6 | 500 | 1200 | 1500 | 900 | 2.5*2.0 | 850 |
| DCQG8-0.55 | 8 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 1000 |
| DCQG10-0.55 | 10 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 1150 |
| DCQG12-0.55 | 12 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 900 |
More pictures:
