Help CenterDCQG Stationary Ramp Truck Ramps
Related Products
Specifications
1.Professional technology2.Best price
3.Good appearance
Products' Information
Fixed ramp is a loading and unloading equipment with storage platform. It adjust the height according to the different height of trucks. Make it easy to get in the tuck for forklift. The equipment use the import hydraulic cylinder. There are skirt plates on the two sides, make it more safety.
Hydraulic drive, the operation is convenient and reliable operation.The whole long shaft connect the lip plate and platform with high strength,good reliability.Adopt imported sealing parts to ensure the hydraulic system has good sealing performance.Imported whole type hydraulic staion which has good sealing and long sevice life.Use antiskid pattern steel plate, the platform has good performance.On both sides of the rolling foot skirt plate to prevent toes stretch into platform cause accident.

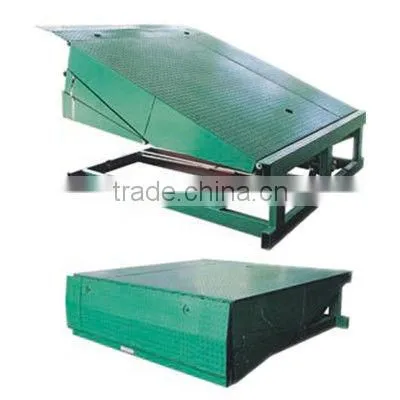

Products' Photos
Technology parameters :
| Model |
Load weight (T) |
Frame height (MM) |
Goods table height (MM) |
Max operation height (MM) |
Min operation height (MM) |
Table size A XB(M) |
Power (KW) |
| DCQG6-0.55 | 6 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 700 |
| DCQG6-0.60 | 6 | 500 | 1200 | 1500 | 900 | 2.5*2.0 | 850 |
| DCQG8-0.55 | 8 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 1000 |
| DCQG10-0.55 | 10 | 500 | 1200 | 1500 |
950 | 1.75*1.65 | 1150 |
| DCQG12-0.55 | 12 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 900 |
