Professional mannufacturer fast speed HG-1530 one axis single blade wood cnc lathe machine
- 50 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | CNC or Not: | CNC | Automatic Grade: | Automatic |
Max. Swing Diameter: | 300mm | Place of Origin: | Shandong, China | Brand Name: | HG |
Model Number: | HG-1530 | Voltage: | 110V/220V/380V | Power(W): | 4KW |
Weight: | 1600kg | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

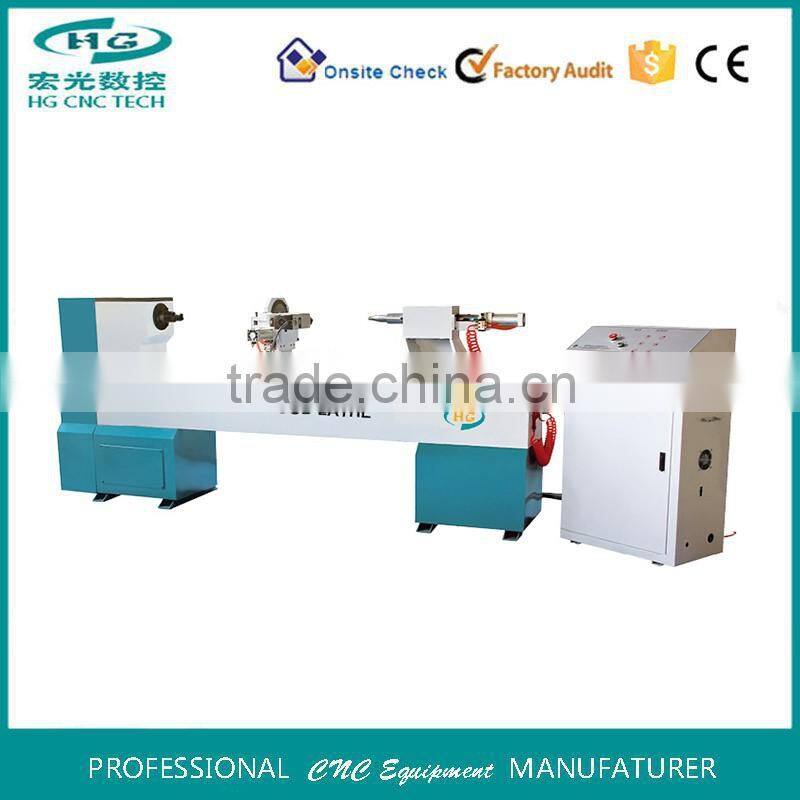

Professional mannufacturer fast speed HG-1530 one axis single blade wood cnc lathe machine
Feature of one axis single blade wood cnc lathe machine
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

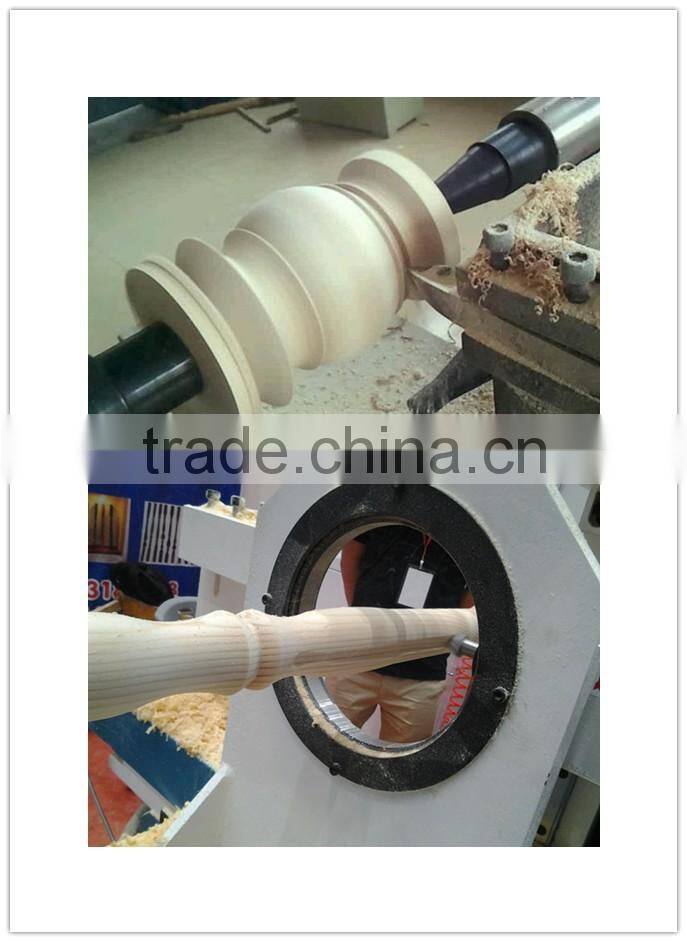

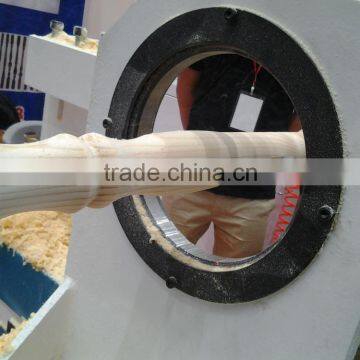

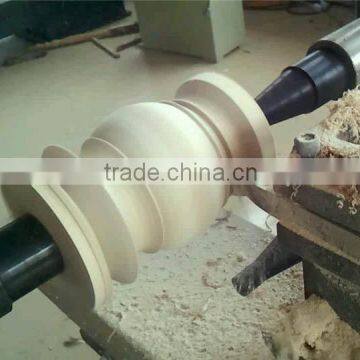

2.Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing etc. wood cnc turning lathe.
Technical Parameters of one axis single blade wood cnc lathe machine
Model | HG-1530 |
Working size | 150*3000mm |
Max.length | 3000mm |
Max turning diameter | 150mm |
Maximum feed speed | 4m/min |
Driver&Motor | YAKO stepper motor |
Software | Type3 |
Machine Type | one axis single blade |
Minimum setting unit | 0.01cm |
Air pressure | 0.6-0.8Mpa |
Weight | 1600kg |
