Safety Lever Hoist

Name: Safety Lever Hoist
Brand: FEIDIAO
SKU: 120562053
Availability: InStock

US$ 10 - 100 MOQ: 10 Pieces

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

FEIDIAO

Tongling Shendiao Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Brand Name FEIDIAO

Model Number HSH-A

Usage Construction Hoist

Power Source Lever

Sling Type Chain

Maximum Lifting Weight 0.25-9T

Maximum Lifting Height AS BELOW

Lift Speed SEE BELOW

Certification CE & ISO 9001

Warranty one year

Specifications

HSH-A Lever Hoist features:
1)Capacity from 0.25 T to 9T
2)Have certificate of CE
3)Automatic double-pawl braking system

HSH-A Lever Hoist features:

1) Capacity from 0.25T to 9T

2) Have certificate of CE

3) Got certificate of ISO9001

4) Automatic double-pawl braking system

5) Chain guides provide smooth chain operation

6) Roller bearing supported load sheaves for avoiding abrasion

7) Chain are made of special alloy steel that is exclusively

8) Drop forged kooks to ensure superior quallity and safety

9) The lever hoist static test is 4 times of capacity,and running test is 1.5 times of capacit one by one

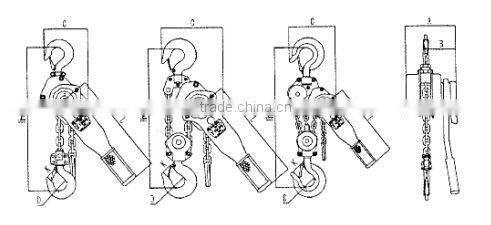

Model	HSH-0.25A	HSH-0.5A	HSH-0.75A	HSH-1.5A	HSH-3A	HSH-6A	HSH-9A
Capacity load T	0.25	0.5	0.75	1.5	3	6	9
Standardlift M	1	1	1.5	1.5	1.5	1.5	1.5
Test load T	0.375	0.75	1.125	2.25	3.75	7.5	11.25
Effort to rated capacity N	160	240	280	310	320	340	360
No.of load chain	1	1	1	1	1	2	3
Diameter of load chain MM	4	5	6	8	10	10	10
Min.distance between hooks MM	160	280	320	380	480	600	700
Net weight KGS	3.6	6.5	7.8	12	21	32	48
Extra weight per metre of extra lift KGS	0.3	0.5	0.8	1.4	2.2	4.4	6.6
