Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 6.5KVA Small Protable Silent Diesel Generator With Wheels

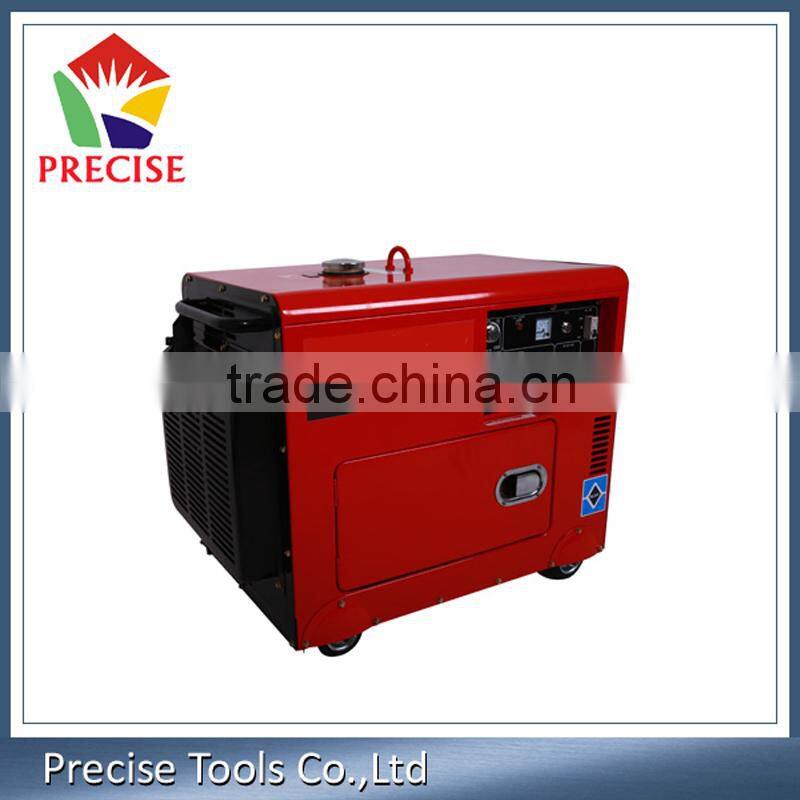

6.5KVA Small Protable Silent Diesel Generator With Wheels

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

PT8500Q

Contact Supplier Request Quote Chat Now

Ningbo Precise Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name OEM

Model Number PT8500Q

Output Type Other, Single/Three

Speed 3000/3600rpm

Frequency 50-60HZ

Rated Power 7.0KVA

Rated Voltage 220/380,230/400V

Rated Current optional

Small Protable Silent Diesel Generator with Wheels

Features:

*The miniaturized fuel injection system

*Low fuel consumption

*Lightweight and compact design

*Easy and fast starting

*Stand up the hard work

*Recoil or electric starting.

*Long Noise Running :High effective combustion system ensures complete combustion,besides a large silence dampens.

Exhaust noise and engine sounds which are contained by a double-wall structure and absprbed by a liner

Specification:

Model	PT8500Q
Rated Frequency(Hz)	50	60
Rated Voltage(V)	220/380,230/400
Rated Output Power(KVA)	5.5	6
Max Output Power(KVA)	6.5	7
Rated Rotation Speed(rpm)	3000	3600
DC Output	12V 8.3A
Power Factor cos	1/0.8
Phase Number	Single /Three
Excitation Transistorized	Self-Excitation,brushless
Noise Level(Dba@7m)(Zero Load~Full Load)	70-74
Structure Model	AVR Brush or Self-excitation Brushles
Engine Type	1-Cylinder,4-Stroke,Air Cooled,Direct Injuction, Diesel Engine
Displacement(cm)	499
Compression ratio	19:1
Rated Power(KW/rpm)	7.6/3000,8.2/3600
Starting System	Electric Starting
Rotation Direction(View from Flywheel)	Clockwise
Fuel Type	0#(Summer),-10#(Winter),Diesel Oil
Lube	SAE10W30(Above CD Grade)
Low Oil Pressure alarm system	With
Optional Standard	ATS
	Remote Control
	Three Phase
	Digital Panel
Net Weight(Kg)	180
Overall Dimension(mm)(LxWxH)	960560770

Diesel Generator Picture:
