Specifications
advertising cnc routeradvertisement cnc router machine
cnc router for advertising
1.5kw spindle
Economical model

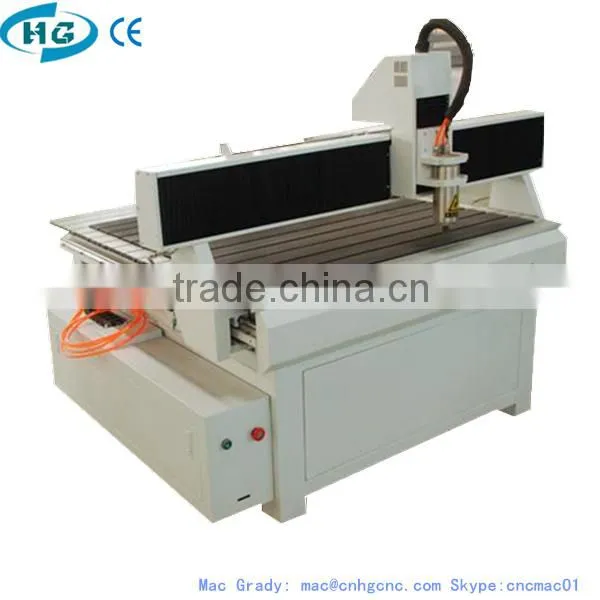

Hot sale advertising cnc router/advertisement cnc router machine/cnc router for advertising
cnc router for advertising Features
1. Import high precision preloaded backlash ball screw, the movement is generated when clearance to reduce to the smallest
2. Use the high quality brand drive, faster than the original model improves the nearly 2 meters
3. Import guide rail, self lubricating block, make each direction force equal to ensure that the mechanical precision and strength.
4. Adopts the breakpoint memory way, to guarantee available in accident (broken knife) or the next day processing
5. Unique multiple work piece processing origin preservation mode
6. Gantry mobile, strengthen mesa, durable, long time use deformation, better positioning accuracy Plate production not only make carving fine without jagged, basal level off is smooth and contour is clear, and cutting 2 cm organic glass also relaxed freely.
7. Machine body is welded steel tube or whole cast iron,it's up to you.
cnc router for advertising Applicable Materials
Wood, acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum
cnc router for advertising Specification
Model |
HG-1212A |
XYZ Working Size |
1200*1200*110 mm |
Machine body |
whole cast iron |
Table surface |
T-slot table |
XY structure |
Ball screw drive, round rail |
Z structure |
Ball screw drive, round rail |
Spindle |
1.5 kw water cooled |
Spindle speed |
24000 RPM |
Drive motor |
Stepper system |
Max. Rapid Travel Rate |
16000 mm/min |
Max. Working speed |
8000 mm/min |
Control system |
NCstudio |
Software |
Type3, Artcam, Ucancam |
Command |
G code |
Machine precision |
0.01 mm |
Repositioning precision |
0.03 mm |
Working voltage |
AC 220/380V |
Machine Size |
1600mmX1600mmX1500mm |
Net weight |
650KG |
Dust collector |
optional |
Remark |
We can customize the model for any processing size |
Parts of the machine can do some changes as your requirement:
1. Motor (stepper or sever motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of the machine (Vacuum table, T-slot table, Combination of Vacuum table & T-slot table, normal table, table moving)
cnc router for advertising Standard accessories
PCI card, Communication cable, Water cooling system, Power cable, Clamp, Wrench, Bit, Collet, Other tools
cnc router for advertising Warranty
24 months for machine. Also we supply lifetime service online 24 hours a day MSN, Skype, Yahoo, Gmail and so on. You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.

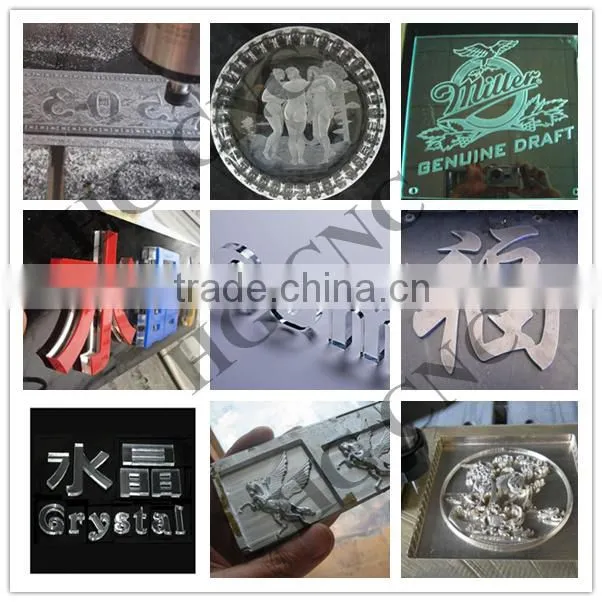

cnc router for advertising Samples
cnc router for advertising Production Procedure
cnc router for advertising Certification
Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 5-9 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications
