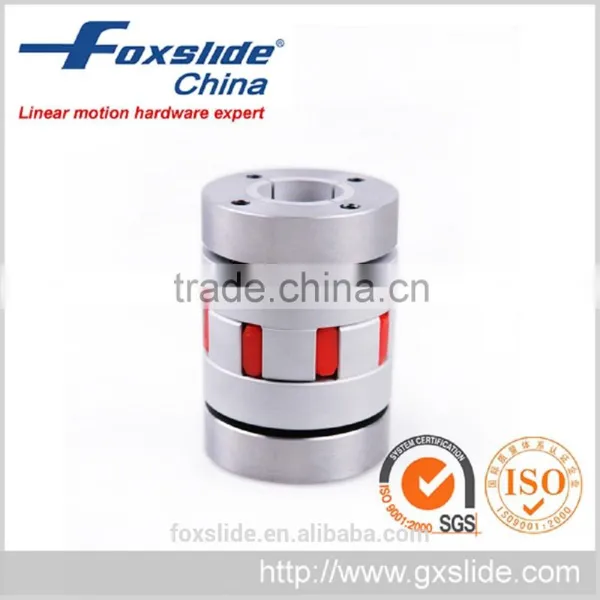

FX-JC1-Setscrew High quality jaw type elastic coupling h type flexible coupling
Material: Aluminum,steel,metal,plastic,etc.
Finish: blacken,phosphate-coat,and oxidation.
Advantage for elastic coupling :
- Coupling assembled by pressing a polyurethane sleeve into hubs on both sides
- Could absorb the vibration, parallel, angular misalignments and shaft end-play
- Resistance to oil and electrical insulation
- Same rotational characteristics both clockwise and anticlockwise
- three different hardness sleeves are available
- setscrew type
- high hardness, not easily deformed
- best performance, keep new after long-time use, high torque and sensitivity
- No rust
- Enciromental friednly, no pollution
- Long life time
Applications of jaw type H type flexible elastic couplings :
Power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors; various mechanical and hydraulic fields
Coupling Quality Control of jaw type flexible couplings
» Serious raw material inspection;
» Strict control over the entire manufacturing process;
» Sampling of all the products after final inspection before shipment;
» Quality trace after delivery.
Packaging & Delivery of jaw type flexible couplings rubber coupling :
Industrial plastic bag + standard export carton; or as per customer's request.
Delivery Detail: 7 to 10 DAYS
Product parameters of jaw type flexible couplings :
H Type Coupling Related Models
Shaft coupling type |
Coupling size series |
Jaw shaft coupling |
FX-JM series |
Rigid shaft coupling |
FX-JR series |
Disc shaft coupling |
FX-MP series |
Flexible shaft coupling |
FX-JT series |
Oldham shaft coupling |
FX-JH series |
Bellows shaft coupling |
FX-BW series |
Coupling Advantages
1. Small dimension, low weight, high transmitted torque ;

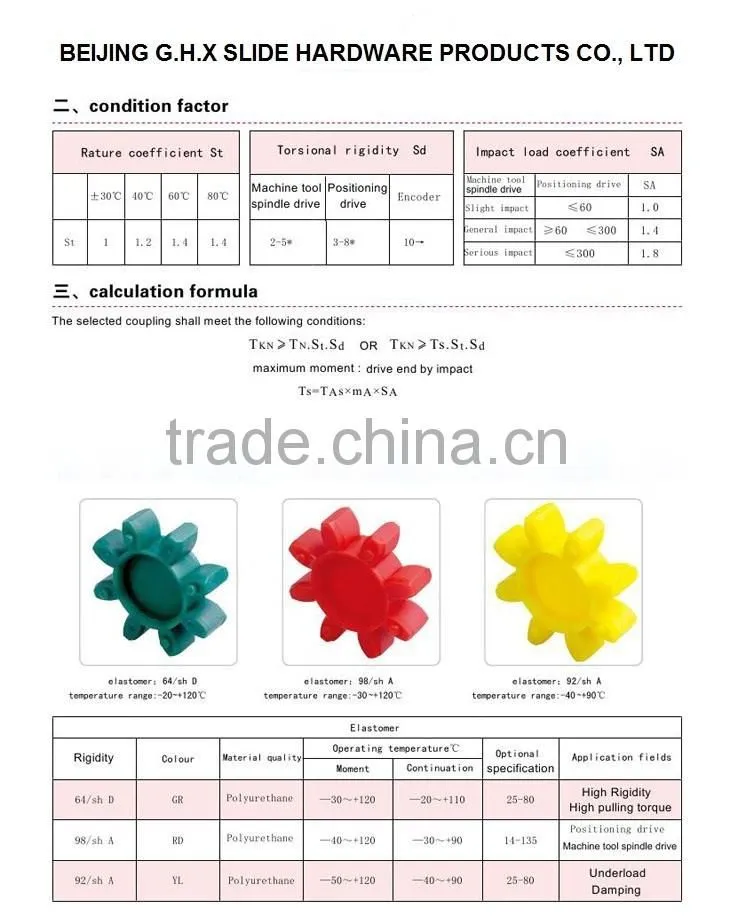

2. Elastomers made of polyurethane with shore hardness between 80-98;
3.Low noise
4.Easy assembly
5. Compensating the axial relative drift, buffer and vibration reduction;
6. Bore tolerance ISO standard H7;

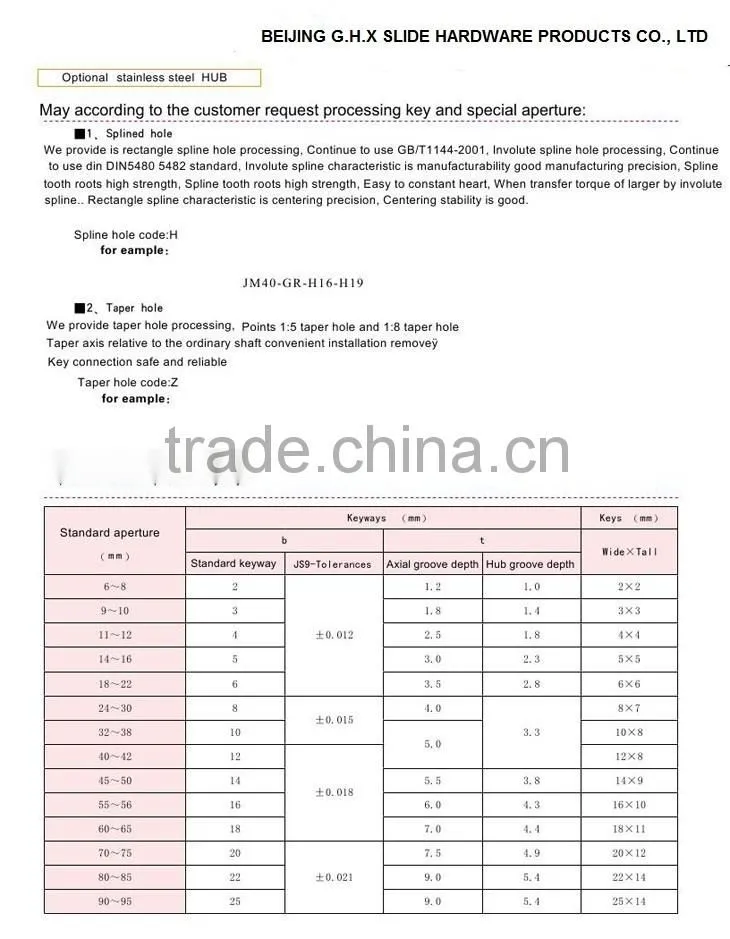

7. Keyway tolerance as per DIN6885/1 JS9;
8 The couplings require no lubrication and provide highly reliable service for light, medium,and heavy duty electrical motor and internal combustion power transmission applications.
Coupling Production Process
- 1.Assembly
- 2.Windage test
- 3.Cleaning
- 4.Rotary test
- 5.Greasing and gland
- 6.Noise inspection
- 7.Appearance inspection
- 8.Rust prevention
- 9.Product packaging
Company advantages:
1) Experienced and professional sales staff;
2) The 6 Year's exporting experience;
3) Strict quality control system with perfect facilities;
4) Advanced production facilities;
5) The abundant capability of R&D
6) High&New Tech enterprise,low carbon omission and environment friendly
7) OEM accepted
We would like to offer the best for you:
Excellent Quality: Strict quality control system for jaw type flexible couplings and good quality test engineer team.
Competitive Price: Factory wholesale price.
Excellent Service: Fast speed, high efficiency, try our best to meet our clients needs.
Professional Service: More than 6 years OEM service experience ,we can produce according to your requirements.
Fast Delivery: Large stock and 7-10 days lead time.
