US$ 6 - 300 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Structure:
Universal
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Beijing G.H.X Slide Hardware Products Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Universal
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Aluminium
Brand Name FOXSLIDE
Place of Origin Beijing, China
Model Number FX-JM/JG/TM/JT/JH/JB




Product Description

Low cost high quality miniature reducer shaft coupling types

Shaft coupling typesLow cost high quality miniature reducer shaft coupling typesLow cost high quality miniature reducer shaft coupling typesLow cost high quality miniature reducer shaft coupling typesLow cost high quality miniature reducer shaft coupling typesLow cost high quality miniature reducer shaft coupling types

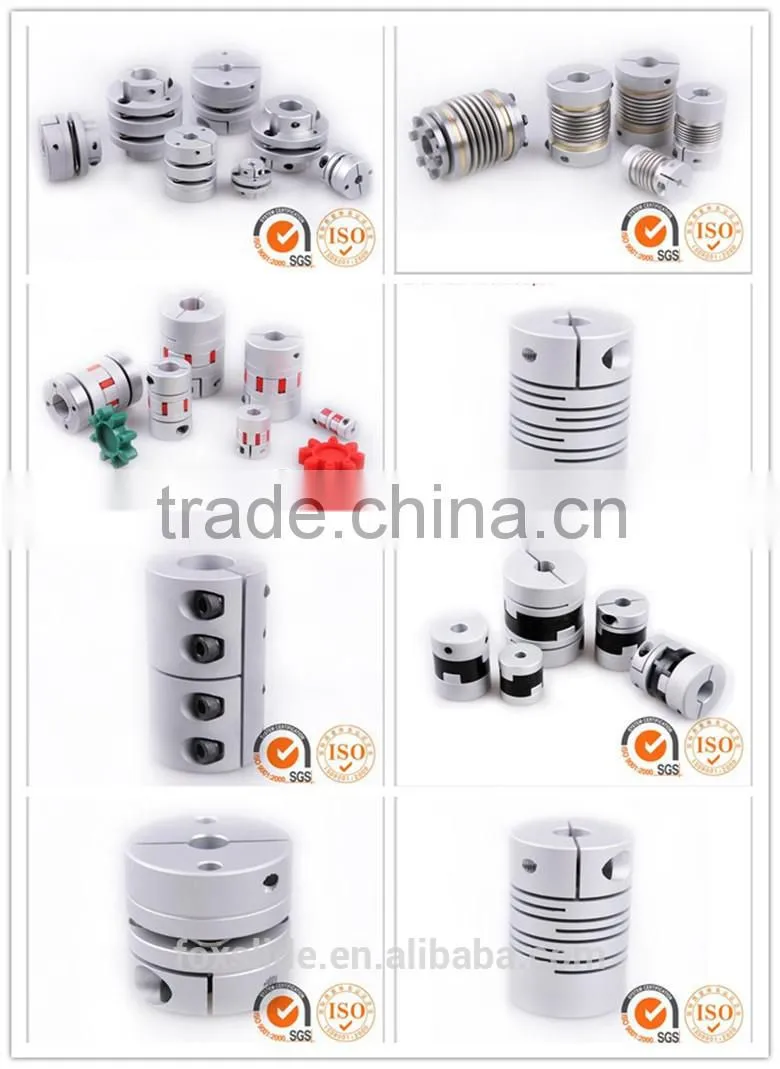

C

oupling size series

Jaw shaft coupling

FX-JM series

Rigid shaft coupling

FX-JR series

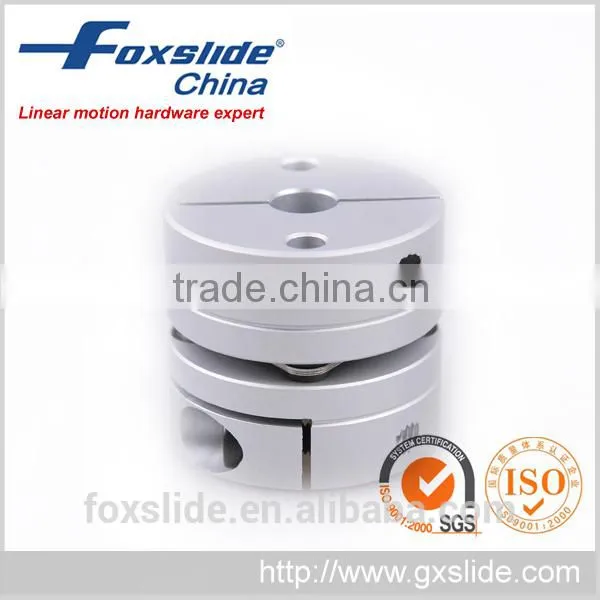

Disc shaft coupling

FX-MP series

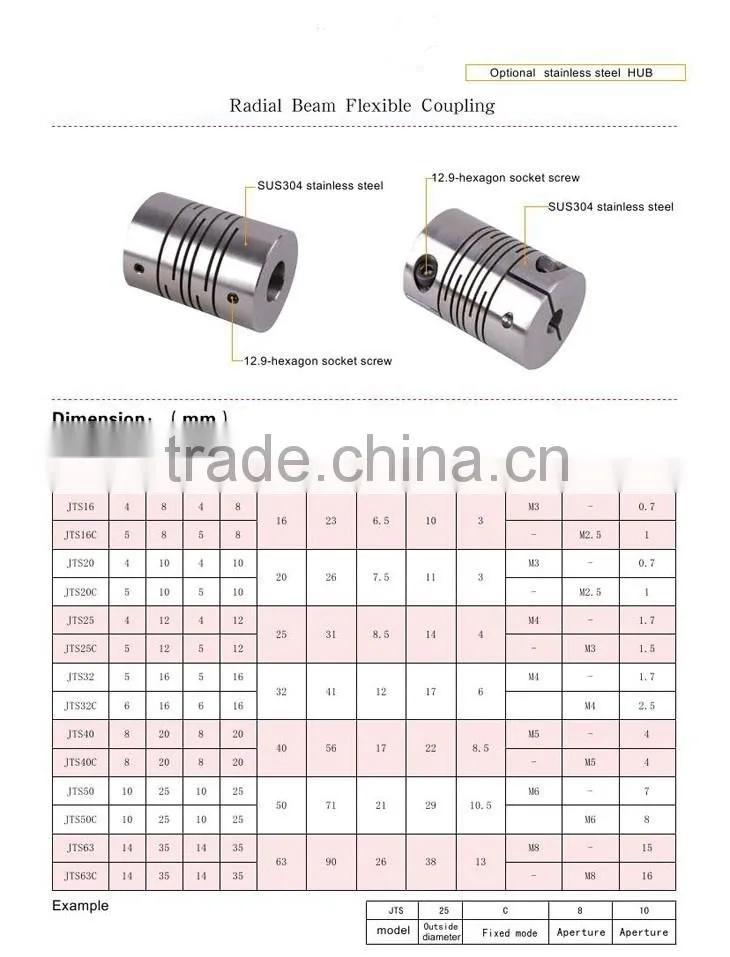

Flexible shaft coupling

FX-JT series

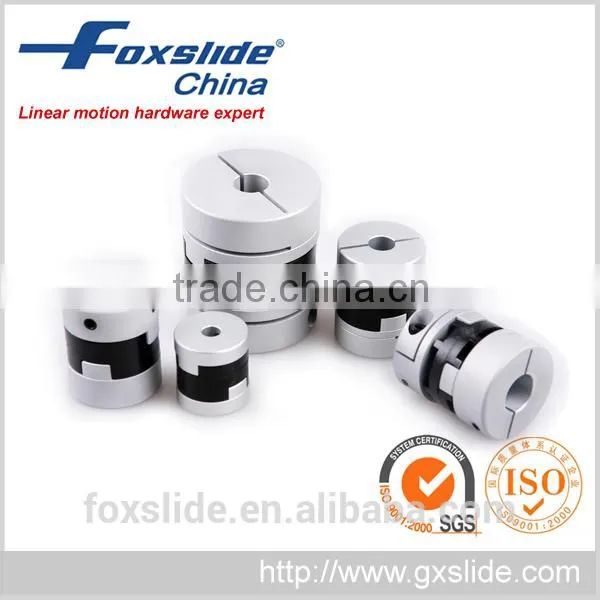

Oldham shaft coupling

FX-JH series

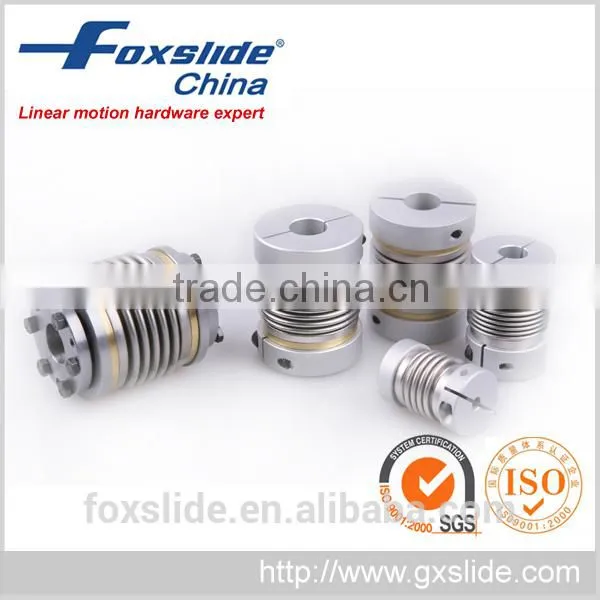

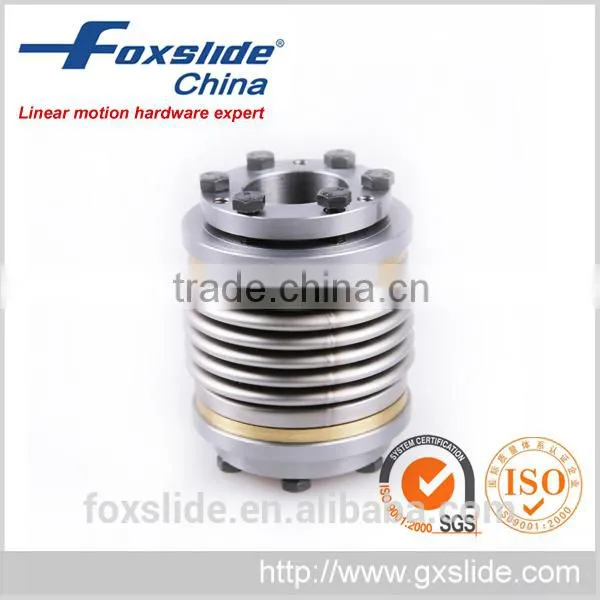

Bellows shaft coupling

FX-BW series





Flexible ball screw shaft coupling

Sizes: outer diameter: 16mm to 63mm

Material: Cast iron, steel, aluminum.
Jaw couplings offer a range of hub and element variants to meet the demand for low cost, general purpose and spacer type flexible coupling, .

Fix type: setscrew type and clamp type





Applications of flexible shaft coupling :

Power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors; various mechanical and hydraulic fields



Flexible Shaft Coupling Quality Control:

» Serious raw material inspection;
» Strict control over the entire manufacturing process;
» Sampling of all the products after final inspection before shipment;
» Quality trace after delivery.





Ordering example:



FX-JM2-16-5-6-16L



FX-JM2: Set screw  jaw type shaft coupling

16: shaft coupling outer diameter

6: shaft coupling inner diameter

16L: shaft coupling length







Packaging & Shipping



 Packaging & delivery of flexible types of shaft coupling :

Industrial plastic bag + standard export carton; or as per customer's request.

Delivery Detail:7 to 10 DAYS



 Flexible shaft coupling  advantages

1. Small dimension, low weight, high transmitted torque ;

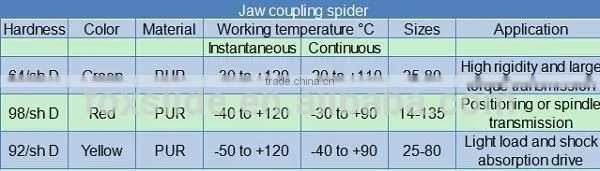

2. Elastomers made of polyurethane with shore hardness between 80-98;

3.Low noise

4.Easy assembly

5. Compensating the axial relative drift, buffer and vibration reduction;

6. Bore tolerance ISO standard H7;

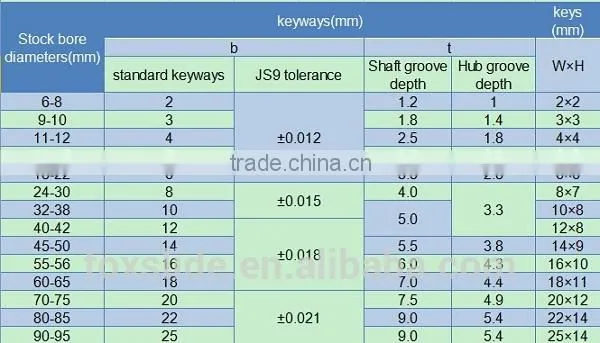

7. Keyway tolerance as per DIN6885/1 JS9;

8 The couplings require no lubrication and provide highly reliable service for light, medium,and heavy duty electrical motor and internal combustion power transmission applications.







Production Flow



 Ball Screw Shaft Coupling Production Process

  • 1.Assembly
  • 2.Windage test
  • 3.Cleaning
  • 4.Rotary test
  • 5.Greasing and gland
  • 6.Noise inspection
  • 7.Appearance inspection
  • 8.Rust prevention
  • 9.Product packaging



Our Services



Shaft couplings with keyways and special hole size are accpeted as per customer drawing.



 Low cost high quality miniature reducer shaft coupling types







Low cost high quality miniature reducer shaft coupling types


Company advantages:

1) Experienced and professional sales staff;

2) The 6 Year's exporting experience;
3) Strict quality control system with perfect facilities;

4) Advanced production facilities;

5) The abundant capability of R&D

6) High&New Tech enterprise,low carbon omission and environment friendly

7) OEM accepted









Our Services



 We would like to offer the best shaft coupler  for you:

Excellent Quality:  Strict quality control system and good quality test engineer team.

Competitive Price: Factory wholesale price.

Excellent Service:  Fast speed, high efficiency, try our best to meet our clients needs.

Professional Service: More than 6 years OEM service experience ,we can produce according to your requirements.

Fast Delivery:  Large stock and 1-10 days lead time.







Company Information



Beijing G.H.X. Slide Hardware Products Co., Ltd is a leading integrated company in manufacturing, processing and supplying slide hardware products. We supply drawer slides and linear transmission products.



Drawer slide series: with loading from 45kg to loading 227kg, widely used in IT industry, furniture design, server cabinets in telecommunication industry, automatic teller machine (ATM) cabinets in banking industry, vehicle-mounted heavy-duty storage cabinet, etc.

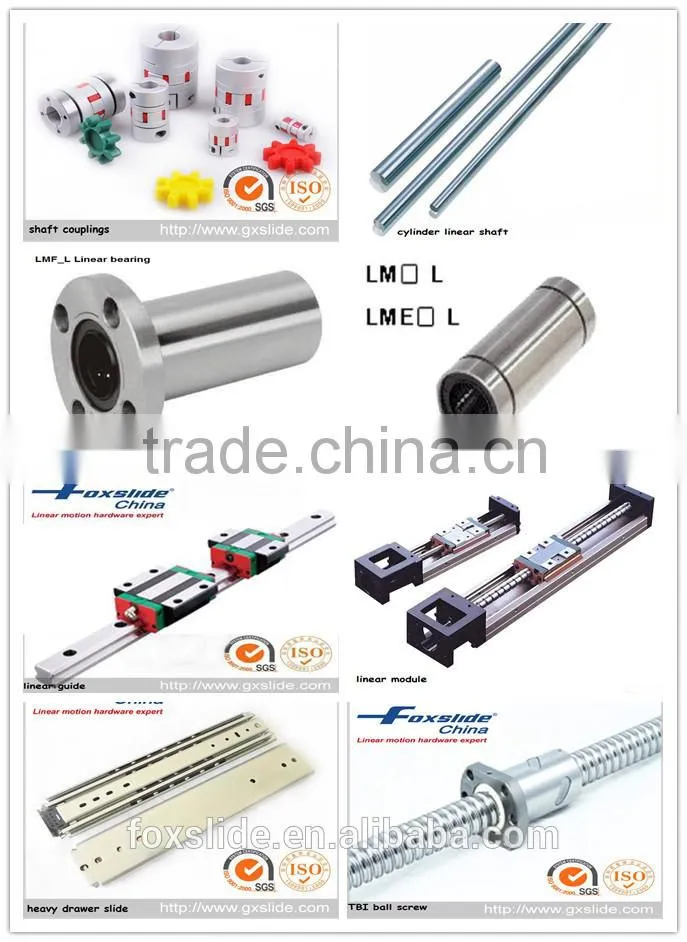

Linear transmission products: linear guide, ball screw, shaft couplings which are widely used in CNC machines, precision tool machines, production machines, electronic machines, transmission machines and etc.



Ball screw couplilng related products:

Low cost high quality miniature reducer shaft coupling types
