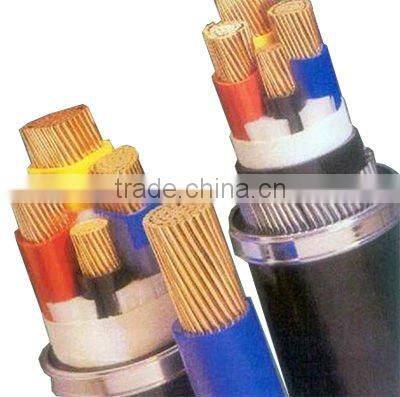

Help CenterLow Voltage Steel Tape or Wire Armoured Electric Cable
Related Products
-
0.6/1kV XLPE Insulated Power Cable for Saudi ArabiaUS$ 1 - 1.8MOQ: 1000 Meters -
0.6/1kV XLPE Insulated Power Cable for Saudi ArabiaUS$ 0.1 - 1MOQ: 1000 Meters
-
Favorites Compare Good Quantity XLPE Insulated Cable YJVUS$ 0.1 - 1MOQ: 1 Kilometer
-
10KV Steel Wire Armoured Cable CU/XLPE/SWA/PVC CableUS$ 0.1 - 1MOQ: 1000 Meters
-
Steel Wire Armoured Cable CU/XLPE/SWA/PVC CableUS$ 0.1 - 1MOQ: 1000 Meters
Low Voltage XLPE Insulted Electric Cable
Standard
The product is manufactured according to the standard of GB12706 or IEC,BS,DIN and ICEA upon request.
Applications
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/kV-26/35kV
Operating characteristics
1, Rated power-frequency voltage Uo/U : 0.6/1/kV-26/35kV
2,Max.permissible continuous operating temperature of conductor: 90
3,Max.short-circuit temperature of conductor shall not exceed 250.(5s maximum duration ).
4,The ambient temperature under installation should not below 0
5, The bending radius of a single-core cable should not less than 20 times of the cable diameter. The bending radius of a three-core cable should not less than 15 times of the cable diameter.
Construction
Conductor: Annealed Copper or Aluminum Class1, Class2
Insulation: Extruded XLPE(Cross Linked Polyethylene)
Bedding: PP Tape, PVC
Armoured: Galvanized Steel Wire(SWA) or Steel Tape(STA)
Sheathed: PVC or PE
No. of Cores: 1~5
Rated voltage: 0.6/1kv~26/35kv
Nominal cross sectional area of conductor: 1.5~400mm2
