11KV disc insulator ceramic pin type insulators
USD $3.00 - $5.50
/ Piece
500 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ev charging cable 25mm2 --- 70mm2 Orange 1000/1500V Double insulated HV cable electric vehicle shielded cable
-
HDMI CABLE
-
PTC temperature sensing wire, pvc double insulation.
-
UL1285 PVC or silicone rubber spiral heating wire
-
PE outer layer black 2.5mm aluminum core or Galvanized steel wire electric fence underground cable
-
High quality Copper Conductor Flexible PVC RVVP Control Cable
Product Details
| Place of Origin: | Henan, China | Brand Name: | Jiapu | Model Number: | PDSI |
| Conductor Material: | Other, none | Insulation Material: | Other, porcelain | Jacket: | Other, none |
| Number of Conductors: | None | Application: | Outdoor |
Product Description
Production

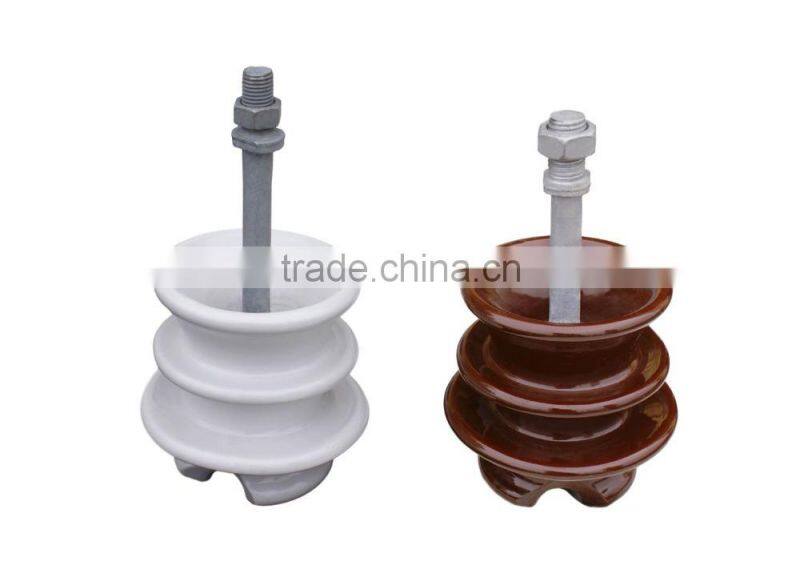

Porcelain Insulator/Ceramic Insulator
Porcelain Insulator/Ceramic Insulator

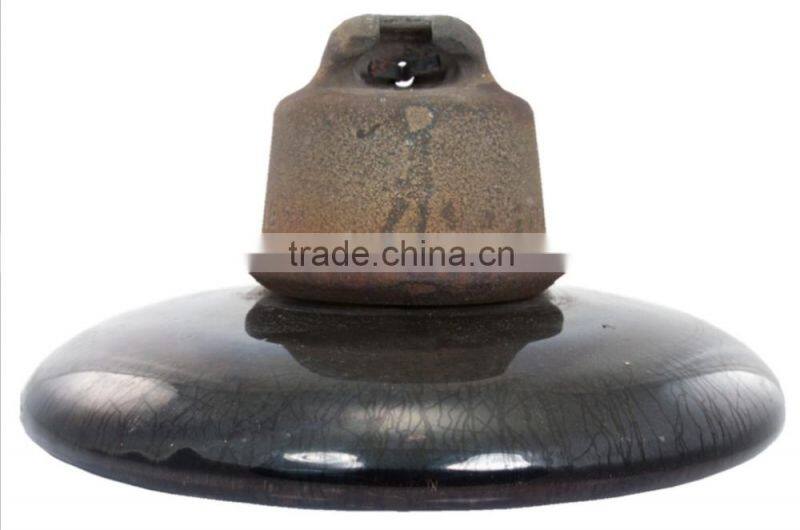

Disk Suspension insulator is used on high voltage substation and transmission lines.
It is constituted by the surface with or without the disk of the edges or bell-shaped insulator porcelain with external attachment of cap and internal feet along its axis coaxial to glue together.
Porcelain Insulator/Ceramic Insulator
Specifications
1. Superior properties of low and high temperature resistance;
2. Strong aging resistance;
3. Nice appearance & Long service time.
4. Comman glaze and semi-conductor glaze, color brown and gray both available.
Porcelain Insulator/Ceramic Insulator

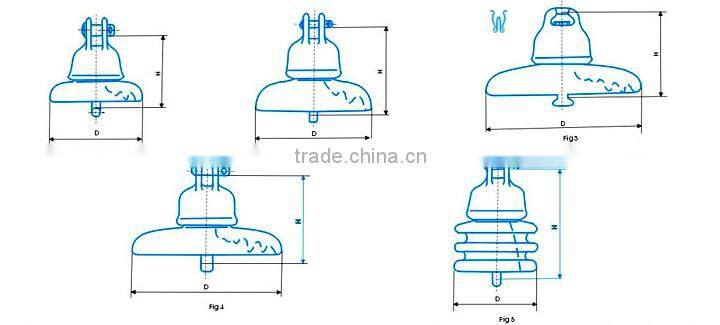

Technical Parameter:
| Class ANSI | Main Demension in (mm) | leak- age Dist- ance in (mm) | Com- bined M & E Stre- ngth b(KN) | Mceb anical Impact Strenth in-1b(N-m) | Time Load Test Value 1b (KN) | Average Flashover Voltage | Power Freq- uaency Punc- ture Voltage KV | Radio influence Voltage | |||||
| D(max) | F | Power Frequ- ency | Critcal Impulse | Test Volt- age To Gro- und KV | Max Riv At 1MHz V | ||||||||
| Dry kv | Wet kv | Positive kv | Nag- ative kv | ||||||||||
| 52-1 | 61/2 (165) | 51/2 (141) | 7(178) | 10000 (44) | 45(5.0) | 6000 (27) | 60 | 30 | 100 | 100 | 80 | 7.5 | 50 |
| 52-2 | 8 (203) | 53/4 (146) | 81/4 (210) | 15000 (67) | 50(5.5) | 10000 (44) | 65 | 35 | 115 | 115 | 90 | 7.5 | 50 |
| 52-3 | 103/4 (273) | 53/4 (146) | 111/2 (292) | 15000 (67) | 5.5(6.0) | 10000 (44) | 80 | 50 | 125 | 130 | 110 | 10 | 50 |
| 52-4 | 103/4 (273) | 53/4 (146) | 111/2 (292) | 15000 (67) | 5.5(6.0) | 10000 (44) | 80 | 50 | 125 | 130 | 110 | 10 | 50 |
| 52-5 | 103/4 (273) | 53/4 (146) | 11 (279) | 25000 (111) | 60(7.0) | 15000 (67) | 80 | 50 | 125 | 130 | 110 | 10 | 50 |
| 52-6 | 103/4 (273) | 53/4 (146) | 11 (279) | 25000 (111) | 60(7.0) | 15000 (67) | 80 | 50 | 125 | 130 | 110 | 10 | 50 |
| 52-9 | 41/2 (114) | 61/4 (160) | 63/4 (171) | 10000 (44) | 45(5.0) | 6000 (27) | 80 | 30 | 100 | 90 | 80 | 7.5 | 50 |

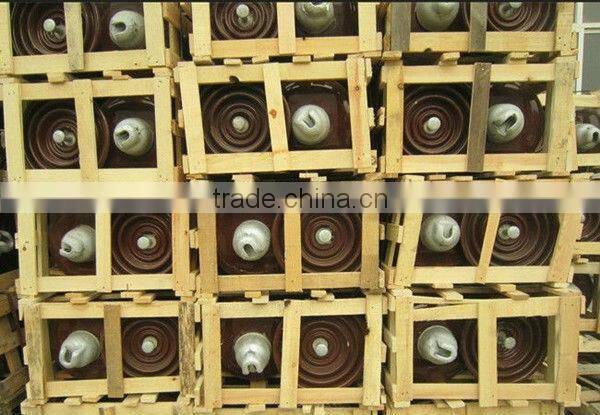

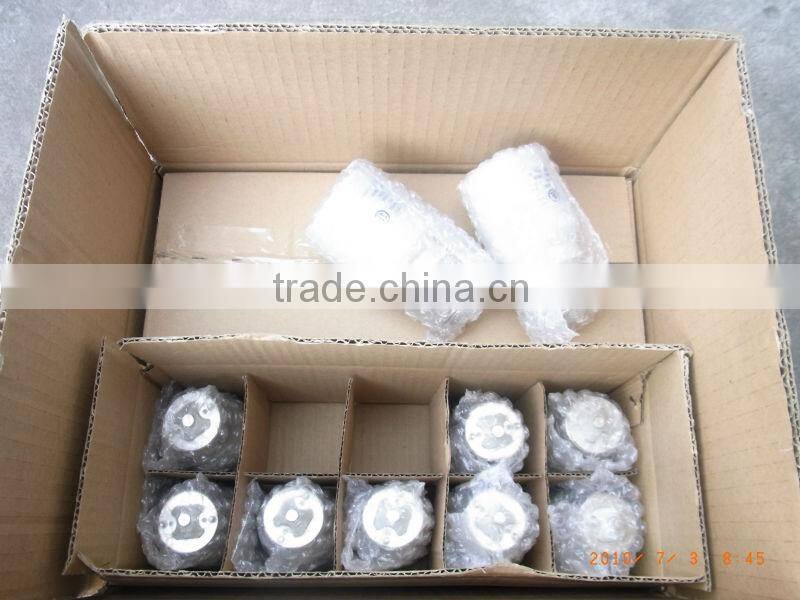

Packing&Shipping
Porcelain Insulator/Ceramic Insulator
Porcelain Insulator/Ceramic Insulator

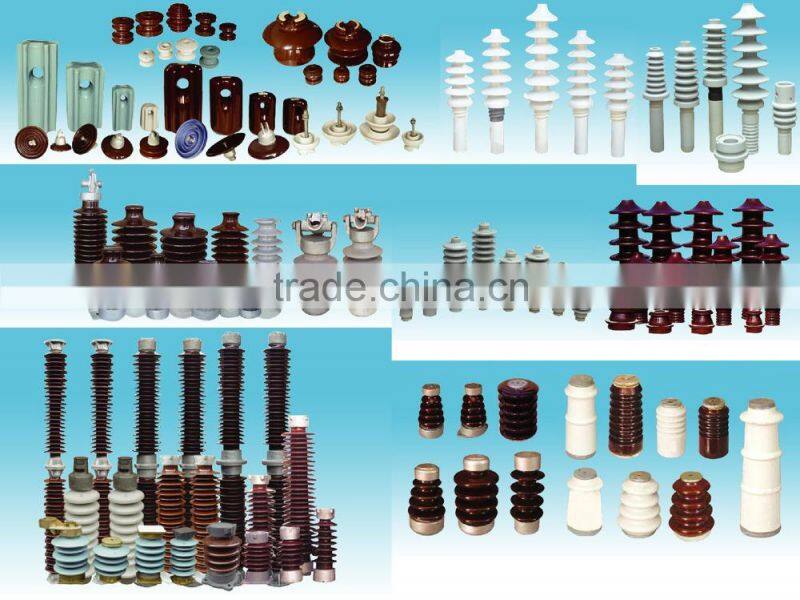

Company Information
Porcelain Insulator/Ceramic Insulator
Porcelain Insulator/Ceramic Insulator
Contact Us
- Henan Jiapu Cable Co., Ltd.
- Contact nameCathy Lee
- Phone86-371-68665329
- AddressBuilding 18, No. 283, Xisanhuan Road, High-Tech District
